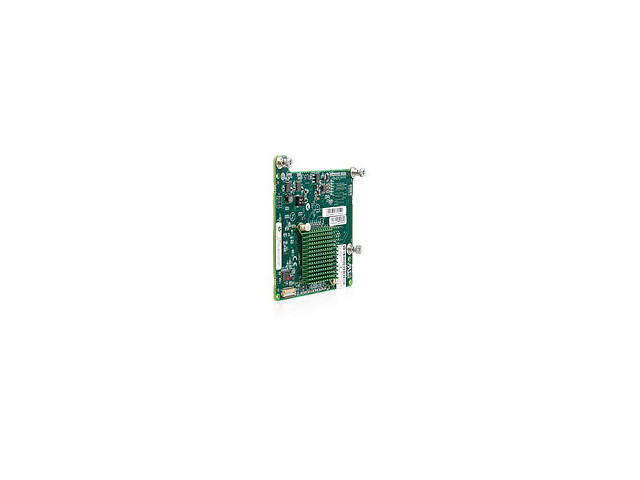

HPE FlexFabric 554M Internal
- 2-port
- PCIe
- 10Gb/s
- Ethernet
- FC
- Emulex BE3
- 128MB
- 10W Max
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
The HP FlexFabric 10Gb 2-port 554M adapter combines the functionality of Ethernet and Fibre Channel (FC) onto a single mezzanine Type A form factor designed for the HP BladeSystem c-Class Gen8 platform. It optimizes network and storage traffic with hardware acceleration and offloads for stateless TCP/IP, TCP Offload Engine (TOE), and Fibre Channel.
The HP 554M supports Virtual Connect Flex-10, increasing bandwidth for virtualized servers.
One platform for network and storage connection. Multiple protocol offloads for optimum server efficiency. Industry leading performance per watt for power savings. Easy to deploy and manage. Optimized for convergence – one network lowers capital and operating expenses.
Specifications
| Other features | |
|---|---|
| Compatible operating systems | indows Server 2008 SP2, R2 (x86 / x64)Microsoft Windows Hyper-V, R2 SP1RHEL 5, 6SLES 10, 11Solaris 10 (x86 / x64) |
| Ports quantity | 2 |
| Wireless connection | No |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 55 °C |
| Certificates | |
| Certification | FCC (CFR 47 part 15) /UL 60950ICES-003 / CSA60950VCCIMIC (RRL), EMC RegistrationACA, AS/NZS3548/EN55022:1998, EN55024:1998EN55022:1998 (CISPR 22), EN55024:1998, IEC60950:1999 (EN60950:2000)UL/cULCEEN 60590 |
| Technical details | |
| Compliance certificates | RoHS |
| Performance | |
| Compatible memory cards | Not supported |
| Internal memory | 128 MB |
| Design | |
| Product colour | Green |
| Power | |
| Power consumption (typical) | 10 W |
| Networking | |
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x |
| Ethernet LAN | Yes |
| Chipset | Emulex BE3 |
| Wireless LAN features | |
| Wi-Fi | No |
| Bandwidth | |
| Full duplex | Yes |
| Bandwidth | 40 Gbit/s |
| Data transfer rate | 10 Gbit/s |
| Ports & interfaces | |
| Parallel ports quantity | 0 |
| Host interface | PCI Express |
| Internal | Yes |
| Connectivity technology | Wired |
