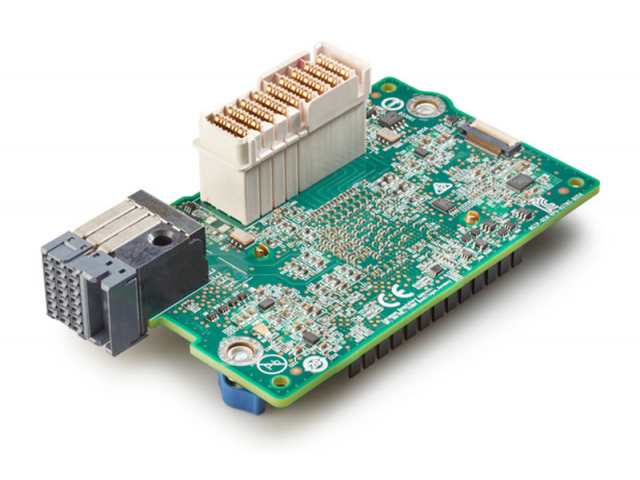

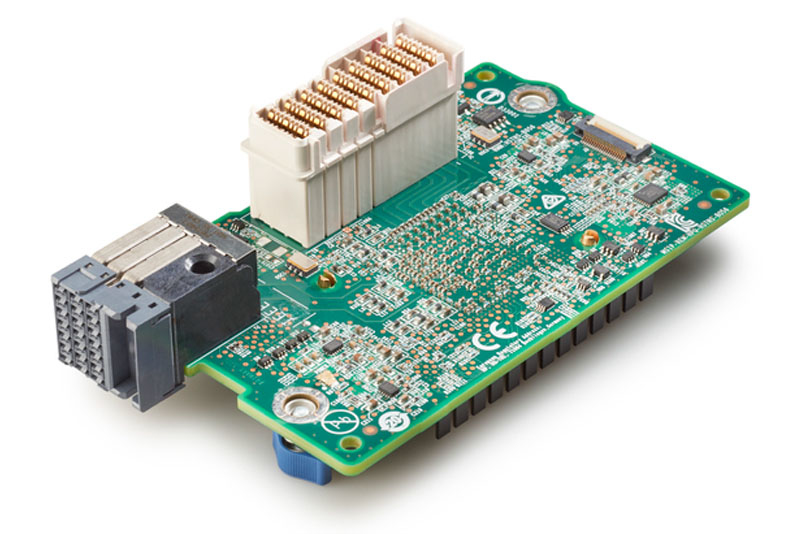

HPE Synergy 3530C 16Gb Internal Fiber 16000 Mbit/s
- Synergy 3530C 16Gb Fibre Channel Host Bus Adapter
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
What if you could increase I/O performance and simplify the connection between Synergy Compute Modules and complex storage environments?
Designed for the HPE Synergy composable fabric, HPE Synergy 3530C 16Gb Fibre Channel Host Bus Adapter connects Synergy compute resource pools to SANs over 16 Gb native Fibre Channel (FC) fabrics. It provides high-performance connectivity to HPE Synergy Virtual Connect FC Modules and Brocade® FC Switch Modules. The Synergy 3530C supports advanced virtualization, security, dual-port isolation, dynamic power management and low CPU utilization features. Doubling the I/O performance of 8 Gb FC HBAs, the Synergy 3530C is ideal for FC storage intense workloads.
Provisioning and updating Synergy 3530C are easy, reliable and fast using HPE Synergy software-defined, template-driven, frictionless operation. The HPE Synergy Composer automatically coordinates proper firmware and driver including staging updates to execute and avoid workload disruption.
Features
Run Anything
- The HPE Synergy 3530C 16Gb Fibre Channel Host Bus Adapter provides flexible connectivity to HPE Synergy Virtual Connect FC Modules and Brocade FC Switch Modules.
- Optimized for virtualization to allow more applications and virtual machines to run on a single Synergy Compute Module.
- Supports advanced features like QoS for Microsoft® Hyper-V vFC function to meet a variety of service level requirements.
Move Faster
- The HPE Synergy 3530C 16Gb Fibre Channel Host Bus Adapter provides greater performance with the capability to deliver twice the throughput of 8 Gb/s FC HBAs.
- Provides close to 1.2 million IOPs reducing latency in storage dependent applications and virtualized environments.
- Delivers higher, more consistent performance with full port isolation and independent processor, memory and drivers for each port.
Work Efficiently
- The HPE Synergy 3830C 16Gb Fibre Channel Host Bus Adapter is designed for environments with greater virtual machine density and bandwidth requirements.
- Reduces hardware needed to connect servers to the network compared to using 8 Gb Fibre Channel adapters.
- Provisions and updates all adapters quickly and consistently using the HPE Synergy template-driven server profiles.
- Orchestrates reliable adapter firmware updates with an entire HPE Synergy infrastructure from a single tool, HPE Synergy Composer.
Specifications
| Other features | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Harmonized System (HS) code | 85176990 |
| Operational conditions | |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating temperature (T-T) | 10 - 70 °C |
| Operating temperature (T-T) | 10 - 70 °C |
| Weight & dimensions | |
| Weight | 140 g |
| Weight | 140 g |
| Height | 66 mm |
| Height | 66 mm |
| Depth | 36 mm |
| Depth | 36 mm |
| Width | 119 mm |
| Width | 119 mm |
| Technical details | |
| Compliance certificates | RoHS |
| Compliance certificates | RoHS |
| System requirements | |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Other operating systems supported | VMware vSphere ESXi |
| Other operating systems supported | VMware vSphere ESXi |
| Linux operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Performance | |
| Compatible products | Synergy 480 Gen9, Synergy 620 Gen9, Synergy 660 Gen9, Synergy 680 Gen9, Synergy 480 Gen10, Synergy 660 Gen10 |
| Compatible products | Synergy 480 Gen9, Synergy 620 Gen9, Synergy 660 Gen9, Synergy 680 Gen9, Synergy 480 Gen10, Synergy 660 Gen10 |
| Power | |
| Power supply | 13 W |
| Power supply | 13 W |
| Bandwidth | |
| Data transfer rate (max) | 16000 Mbit/s |
| Data transfer rate (max) | 16000 Mbit/s |
| Ports & interfaces | |
| Fiber ports quantity | 2 |
| PCI version | 3.0 |
| Fiber ports quantity | 2 |
| PCI version | 3.0 |
| HDD interface | Fiber |
| HDD interface | Fiber |
| Host interface | PCI Express |
| Host interface | PCI Express |
| Internal | Yes |
| Internal | Yes |
| Connectivity technology | Wired |
| Connectivity technology | Wired |
