Description

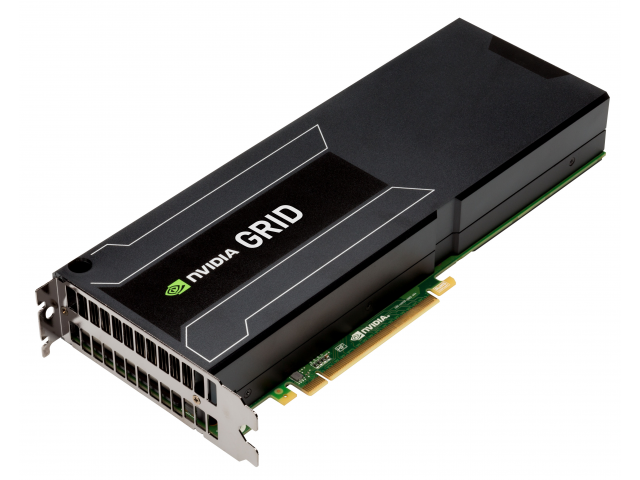

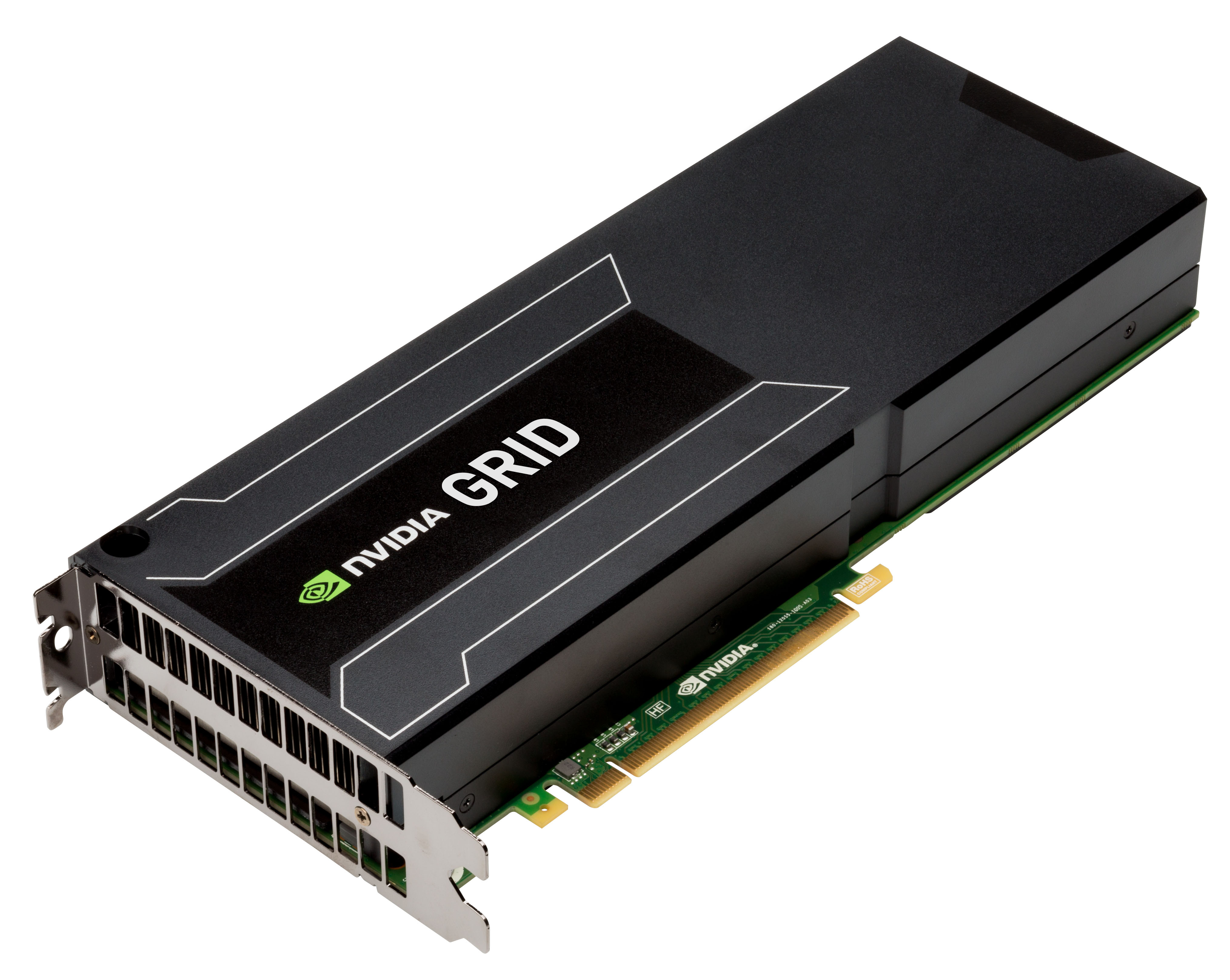

The NVIDIA GRIDTM K1 is a dual-slot 10.5 inch PCI Express Gen3 graphics board with four NVIDIA Kepler TM graphics processing units (GPUs). The NVIDIA GRID K1 has 16 GB of DDR3 memory (4 GB per GPU), and a 130 W maximum power limit. The NVIDIA GRID K1 graphics board uses a passive heat sink that requires system airflow to properly operate the card within thermal limits. It is designed to accelerate graphics in virtual desktop environments, making it the ideal graphics processor for Microsoft RemoteFX and VMware vSGA.
Specifications
Weight & dimensions | |
---|---|
Depth | 111 mm |
Height | 38.6 mm |
Width | 266 mm |
System requirements | |
Linux operating systems supported | Yes |
Windows operating systems supported | Yes |
Power | |
Power consumption (typical) | 130 W |
Design | |
Cooling type | Passive |
Performance | |
OpenGL version | 4.3 |
Shader model version | 5.0 |
DirectX version | 11 |
TV tuner integrated | No |
PhysX | No |
Ports & interfaces | |
Interface type | PCI Express 3.0 |
Memory | |
Memory clock speed | 891 MHz |
Memory bus | 128 bit |
Graphics adapter memory type | GDDR3 |
Discrete graphics adapter memory | 16 GB |
Processor | |
CUDA cores | 768 |
Processor frequency | 850 MHz |
CUDA | Yes |
Graphics processor | GRID K1 |
Graphics processor family | NVIDIA |
