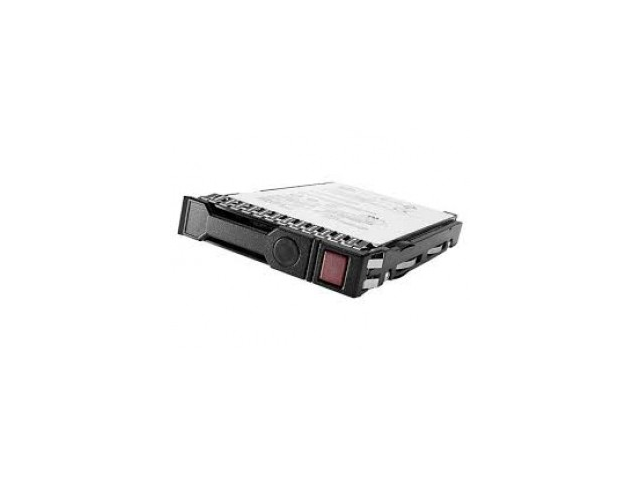

759208-B21 HPE 300GB SAS 12G Enterprise 15K SFF 2.5in SC HDD - G8 G9 G10
- 300GB hot-plug SAS hard disk drive
- 12Gb/sec transfer rate
- 15.000 RPM
- 2.5-inch small form factor (SFF)
- SmartDrive Carrier (SC)
- Spare# 759546-001,Model# EH0300JDYTH,Model# EH0300JEDHC,Model# EH0300JDXBA,Assembly# 748385-001,Assembly# 759202-001,Assembly# 744995-001
- For use with Gen8/Gen9 or newer
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
Option Part Number: 759208-B21
Spare Part Number: 759546-001
Model Number: EH0300JDYTH
Model Number: EH0300JEDHC
Model Number: EH0300JDXBA
Assembly Number: 748385-001
Assembly Number: 759202-001
Assembly Number: 744995-001
General
Device Type: Hard Drive - Hot-Swap
Capacity: 300GB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Plug Type: Hot Plug
Carrier Type: Smart Carrier (SC)
Workload Type: Enterprise
Features: Dual Port
Bundled with: HPE SmartDrive Carrier
Performance
Drive Transfer Rate (external): 12 Gbps
Spindle Speed: 15000 RPM
Average Seek Time: 2.9 ms
Max Seek Time: 5.9 ms
Track-to-Track Seek Time: 0.15 ms
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bays: 2.5" SFF
Dimension & Weight
Width: 3.10 inch
Depth: 4.70 inch
Height: 0.63 inch
Weight: 15.87 oz
Environmental Parameters
Min Operating Temperature: 50 °F (10° C)
Max Operating Temperature: 95 °F (35° C)
Compatibility Information
Designed for
HPE ProLiant BL Series: BL460c Gen10 (2.5 inch), BL460c Gen8 (2.5 inch), BL660c Gen9 (2.5 inch)
HPE ProLiant DL Series: DL180 Gen9 (2.5 inch), DL180 Gen9 Base (2.5 inch), DL180 Gen9 Entry (2.5 inch), DL180 Gen9 Storage (2.5 inch), DL20 Gen9 (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL320e Gen8 (2.5 inch), DL320e Gen8 Base (2.5 inch), DL320e Gen8 Entry (2.5 inch), DL320e Gen8 Performance (2.5 inch), DL320e Gen8 Special Server (2.5 inch), DL320e Gen8 v2 (2.5 inch), DL320e Gen8 v2 Base (2.5 inch), DL320e Gen8 v2 Performance (2.5 inch), DL360 Gen9 CMS (2.5 inch), DL360 Gen9 Entry (2.5 inch), DL360e Gen8 Special Server (2.5 inch), DL360p Gen8 (2.5 inch), DL360p Gen8 CMS (2.5 inch), DL360p Gen8 Performance (2.5 inch), DL360p Gen8 Special Server (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch), DL380 Gen9 Entry (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL380p Gen8 Performance (2.5 inch), DL385p Gen8 Entry (2.5 inch), DL385p Gen8 Storage Centric (2.5 inch), DL388 Gen9 (2.5 inch), DL388 Gen9 Base (2.5 inch), DL560 Gen9 (2.5 inch), DL560 Gen9 Base (2.5 inch), DL560 Gen9 Entry (2.5 inch), DL560 Gen9 Performance (2.5 inch), DL580 Gen8 (2.5 inch), DL580 Gen8 Base (2.5 inch), DL580 Gen8 High Performance (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 Database (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch)
HPE ProLiant ML Series: ML110 Gen9 (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch), ML30 Gen9 (2.5 inch), ML30 Gen9 Base (2.5 inch), ML30 Gen9 Performance (2.5 inch), ML310e Gen8 Base (2.5 inch), ML310e Gen8 Entry (2.5 inch), ML310e Gen8 v2 (2.5 inch), ML310e Gen8 v2 Base (2.5 inch), ML310e Gen8 v2 Entry (2.5 inch), ML310e Gen8 v2 Performance (2.5 inch), ML350 Gen9 (2.5 inch), ML350 Gen9 Base (2.5 inch), ML350 Gen9 Entry (2.5 inch), ML350 Gen9 Performance (2.5 inch), ML350e Gen8 v2 (2.5 inch), ML350e Gen8 v2 Base (2.5 inch), ML350e Gen8 v2 Entry (2.5 inch), ML350p Gen8 (2.5 inch), ML350p Gen8 Special Server (2.5 inch)
HPE ProLiant WS Series: WS460c Gen9 Graphics (2.5 inch), WS460c Gen9 Graphics Expansion (2.5 inch)
HPE ProLiant XL Series: XL170r Gen9 (2.5 inch), XL190r Gen9 (2.5 inch), XL230a Gen9 NHPE Compute Tray (12G), XL230k Gen10 Compute Tray (2.5 inch), XL250a Gen9 Accelerator Tray (2.5 inch)
Specifications
| Weight & dimensions | |
|---|---|
| Height | 15.6 mm |
| Depth | 118.7 mm |
| Width | 75.7 mm |
| Power | |
| Operating voltage | 5 V |
| Hard drive | |
| Bytes per sector | 512 |
| Average latency | 118.7 ms |
| Full stroke seek | 5.9 ms |
| Component for | Server/workstation |
| HDD form factor | 2.5" |
| HDD speed | 15000 RPM |
| Type | HDD |
| HDD interface | SAS |
| HDD capacity | 300 GB |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
