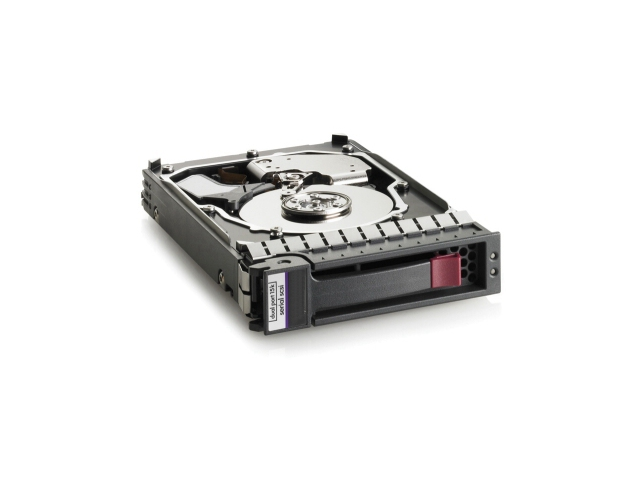

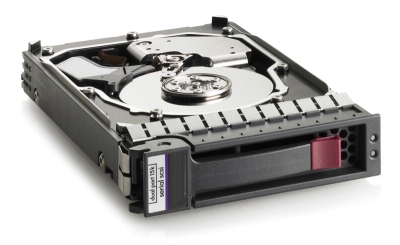

605835-B21, HPE 1TB 6G SAS 7.2K SFF (2.5-inch) Dual Port Midline HDD - G4-G7
- 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Hot Plug Midline Hard Drive
- with basic carrier for Proliant G4-G7
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
Option Part Number: 605835-B21
Spare Part Number: 606020-001
Model Number: MM1000FBFVR
Model Number: MM1000FECVH
Assembly Number: 605832-002
Assembly Number: 757387-001
HPE GPN: 507129-016
General
Device Type: Hard Drive - Hot-Swap
HDD Capacity: 1 TB
Form Factor: 2.5 inch SFF
Interface: SAS-6Gbps
Enclosure Type: Hot Pluggable
Bytes per Sector: 512
Drive Technology (Fill): Air
Carrier Type: Standard Carrier
Workload: Midline
Features: Dual Port
Bundled with: HPE Standard Carrier
Performance
External Data Transfer Rate: 6 Gb/sec
Spindle Speed: 7200 RPM
Average Seek Time: 8.2 ms
Max Seek Time: 17.55 ms
Track-to-Track Seek Time: 0.5 ms
Expansion & Connectivity
Interfaces: 1 x SAS 6Gbps
Compatible Bays: 1 x 2.5" SFF - hot-swap
Miscellaneous
Compliant Standards: RoHS
Dimensions
Width: 3.10 inch
Depth: 5.45 inch
Height: 0.63 inch
Environmental Parameters
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Compatibility Information
Designed for
HPE ProLiant BL Series: BL20p (Gen4), BL45p (Gen2), BL460c (Gen6 Gen7), BL465c (Gen1 Gen5 Gen6 Gen7), BL480c (BL620c Gen7), BL680c (Gen5 Gen6 Gen7), BL685c (Gen6 Gen7)
HPE ProLiant DL Series: DL1000 DL120 (Gen6 Gen7), DL160 (Gen6 Gen7), DL160se (Gen6 Gen7), DL165 (Gen6 Gen7), DL170e (Gen6 Gen7), DL170h (Gen6 Gen7), DL180 (Gen6 Gen7), DL320 (Gen6 Gen7), DL360 (Gen4p Gen5 Gen6 Gen7), DL365 (Gen1 Gen5 Gen6 Gen7), DL370 (Gen6 Gen7), DL380 (Gen4 Gen5 Gen6 Gen7), DL385 (Gen1 Gen2 Gen3 Gen4 Gen5/Gen5p Gen6 Gen7), DL580 (Gen3 Gen4 Gen5 Gen6 Gen7), DL585 (Gen2 Gen3 Gen4 Gen6 Gen7), DL785 (Gen6)
HPE ProLiant ML Series: ML 110 (Gen7), ML350 (Gen5 Gen6 Gen7), ML370 (Gen5 Gen6 Gen7), ML570 (Gen3 Gen4 Gen5)
HPE ProLiant SL Series: SL390s (Gen6 Gen7)
HPE ProLiant WS Series: WS460c (Gen6 Gen7)
HPE Storage arrays: D2700 MSA 1040 MSA70 P2000 (Gen3), X1500 (Gen2), X16000 (Gen2), X1800 (Gen2), X3400 (Gen2), X3800 (Gen2), 2000i (Gen2), 2000sa (Gen2)
Specifications
| Packaging content | |
|---|---|
| Storage drive adapter included | No |
| Weight & dimensions | |
| Weight | 450 g |
| Height | 16 mm |
| Depth | 138.4 mm |
| Width | 78.7 mm |
| Power | |
| Operating voltage | 5 V |
| Hard drive | |
| HDD interface transfer rate | 6 Gbit/s |
| Average latency | 8.2 ms |
| Component for | Server/workstation |
| HDD form factor | 2.5" |
| HDD speed | 7200 RPM |
| Type | HDD |
| HDD interface | SAS |
| HDD capacity | 1 TB |
