HPE 8TB SATA 6G Business Critical 7.2K LFF SC 1-year Warranty 512e Multi Vendor HDD
- 8TB SATA 6G Business Critical 7.2K LFF SC 1-year Warranty 512e Multi Vendor HDD

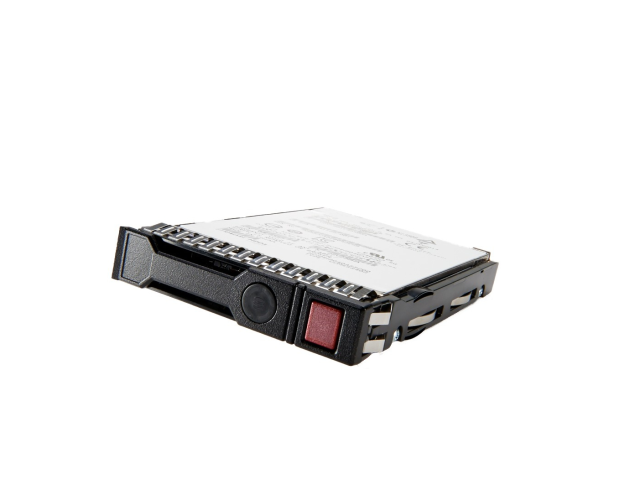

- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
Option Part Number: 819203-B21
Spare Part Number: 820033-001
Model Number: MB8000GFECR
Model Number: MB008000GWBYL
Model Number: MB008000GWJRT
Model Number: MB008000GWRTC
Assembly Number: 819200-001
Assembly Number: 865410-002
Assembly Number: 877683-002
Assembly Number: P01105-001
General
Device Type: Hard Drive - Hot-Swap
Capacity: 8 TB
Form Factor: 3.5 inch LFF
Interface Type: SATA-6Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Plug Type: Hot Plug
Format Type: 512e
Carrier Type: Smart Carrier (SC)
Workload Type: Midline
Features: Native Command Queuing (NCQ), Digitally Signed Firmware, Advanced Format 512e
Bundled with: HPE SmartDrive carrier
Performance
Drive Transfer Rate: 6 Gb/sec (external)
Average Seek Time: 8.5 ms
Max Seek Time: 15.7 ms
Track-to-Track Seek Time: 0.7 ms
Spindle Speed: 7200 RPM
Max Sequential Throughput (MiB/s): 230
128Kib Random Read (IOPs): 105
128Kib Random 70% RD/ 30% WT (IOPs): 110
128Kib Random 50% RD/ 50% WT (IOPs): 115
Expansion & Connectivity
Interfaces: 1 x SATA 6 Gb/s
Compatible Bays: 1 x 3.5" LFF
Power Consumption
Idle Time: 8.80 Watt
Random R/W: 12.10 Watt
Sequential Read: 10.80 Watt
Sequential Write: 10.50 Watt
Product Dimensions
Width: 4.20 inch
Depth: 6.70 inch
Height: 1.10 inch
Environmental Parameters
Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F
Compatibility Information
Designed for
HPE ProLiant DL Series: DL180 Gen9 (3.5 inch), DL180 Gen9 Base (3.5 inch), DL180 Gen9 Entry (3.5 inch), DL180 Gen9 Storage (3.5 inch), DL20 Gen9 Solution (3.5 inch), DL360 Gen10 (3.5 inch), DL360 Gen10 Base (3.5 inch), DL360 Gen10 Entry (3.5 inch), DL360 Gen10 High Performance (3.5 inch), DL360 Gen10 Low (3.5 inch), DL360 Gen10 Performance (3.5 inch), DL360 Gen10 Solution (3.5 inch), DL380 Gen10 (3.5 inch), DL380 Gen10 Base (3.5 inch), DL380 Gen10 Entry (3.5 inch), DL380 Gen10 High Performance (3.5 inch), DL380 Gen10 Performance (3.5 inch), DL380 Gen10 Solution (3.5 inch), DL385 Gen10 (3.5 inch), DL385 Gen10 Base (3.5 inch), DL385 Gen10 Entry (3.5 inch), DL385 Gen10 High-Performance (3.5 inch), DL385 Gen10 Performance (3.5 inch), DL385 Gen10 Solution (3.5 inch), DL388 Gen9 (3.5 inch), DL388 Gen9 Base (3.5 inch), DL80 Gen9 Entry (3.5 inch)
HPE ProLiant ML Series: ML110 Gen9 (3.5 inch), ML110 Gen9 Base (3.5 inch), ML110 Gen9 Entry (3.5 inch), ML30 Gen9 Entry (3.5 inch), ML30 Gen9 Solution (3.5 inch)
HPE StoreEasy 1450
Specifications
| Other features | |
|---|---|
| Height (imperial) | 22.1 cm (8.68") |
| Depth (imperial) | 25.4 cm (10") |
| Width (imperial) | 14.6 cm (5.75") |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Weight (imperial) | 1.36 kg (3 lbs) |
| Dimensions (W x D x H) (imperial) | 146.1 x 254 x 220.5 mm (5.75 x 10 x 8.68") |
| Weight | 1.36 kg |
| Height | 220.4 mm |
| Depth | 254 mm |
| Width | 146 mm |
| Technical details | |
| Harmonized System (HS) code | 84717050 |
| Power | |
| Operating voltage | 5 / 12 V |
| Hard drive | |
| Compatible products | HPE Compute Mainstream Platforms, see QuickSpecs for more information |
| Bytes per sector | 512e |
| HDD form factor | 3.5" |
| HDD speed | 7200 RPM |
| Type | HDD |
| HDD interface | Serial ATA |
| HDD capacity | 8 TB |
