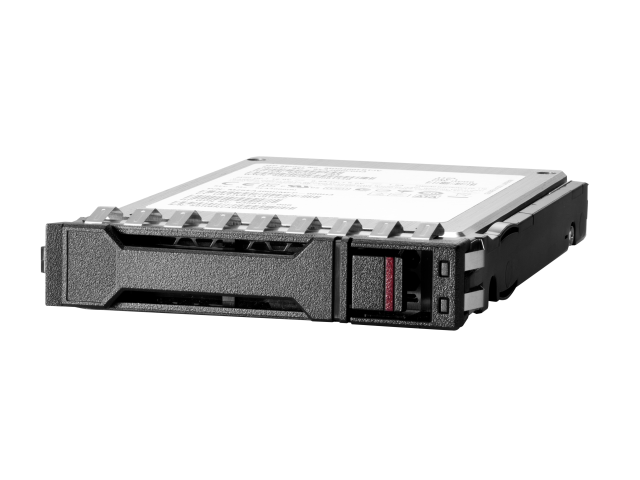

P28352-B21 HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 512e Multi Vendor HDD
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
Option Part Number: P28352-B21
Spare Part Number: P30562-001
General
Device Type: Hard Drive - Hot-Swap
Capacity: 2.4 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Plug Type: Hot Plug
Format Type: 512e
Carrier Type: Basic Carrier (BC)
Workload: Mission Critical
Features: Advanced format 512e
Bundled with: HPE Basic Carrier
Performance
Drive Transfer Rate: 12 Gbps (external)
Spindle Speed: 10000 RPM
OD Media Rate, Max Sequential Throughput (MiB/s): 255
128Kib Random Rd (IOPs): 160
128Kib Random 70% RD/ 30% WT (IOPs): 180
128Kib Random 50% RD/ 50% WT (IOPs): 190
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF
Environmental Parameters
Min Operating Temperature: 50° F (10°C)
Max Operating Temperature: 95° F (35°C)
Power Requirement
Idle Time: 4.80 Watt
Random R/W: 6.00 Watt
Sequential Read: 7.80 Watt
Sequential Write: 6.60 Watt
Product Dimensions & Weight
Height: 5.75 (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)
Compatibility Information
Designed for
HPE ProLiant DL Series: DL325 Gen10 Plus V2 (2.5inch), DL325 Gen10 Plus V2 Base (2.5inch), DL345 Gen10 Plus (2.5inch), DL345 Gen10 Plus Base (2.5inch), DL345 Gen10 Plus Entry (2.5inch), DL360 Gen10 Plus (2.5inch), DL360 Gen10 Plus Network Choice (2.5inch), DL365 Gen10 Plus (2.5inch), DL380 Gen10 Plus Network Choice (2.5inch)
Specifications
| Other features | |
|---|---|
| Height (imperial) | 14 cm (5.5") |
| Depth (imperial) | 22.2 cm (8.75") |
| Width (imperial) | 14.6 cm (5.75") |
| Weight & dimensions | |
| Weight (imperial) | 0.499 kg (1.1 lbs) |
| Dimensions (W x D x H) (imperial) | 146.1 x 222.2 x 139.7 mm (5.75 x 8.75 x 5.5") |
| Weight | 500 g |
| Height | 139.7 mm |
| Depth | 222.3 mm |
| Width | 146.1 mm |
| Technical details | |
| Harmonized System (HS) code | 84717050 |
| Hard drive | |
| Compatible products | HPE Compute Mainstream Platforms, see QuickSpecs for more information |
| Bytes per sector | 512e |
| HDD interface transfer rate | 12 Gbit/s |
| Hot-swap | Yes |
| Component for | Server |
| HDD form factor | 2.5" |
| HDD speed | 10000 RPM |
| Type | HDD |
| HDD interface | SAS |
| HDD capacity | 2.4 TB |
