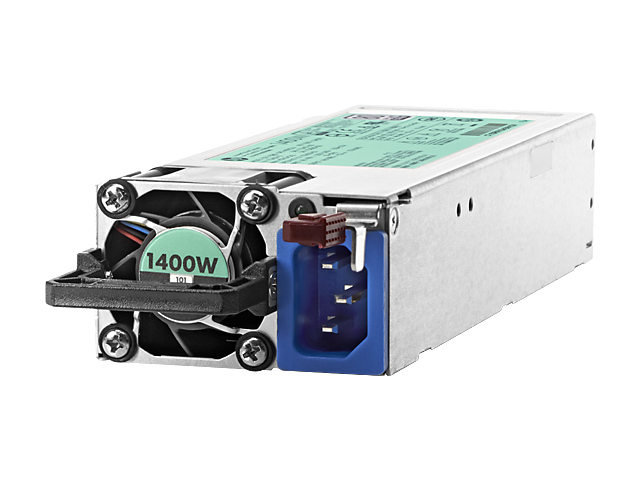

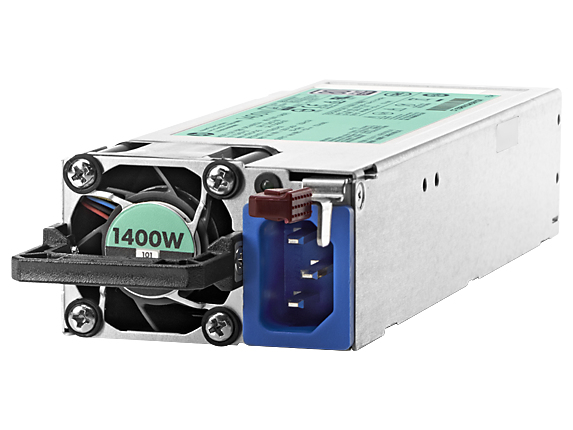

720620-B21 HPE 1400W Flex Slot Platinum Plus Hot Plug Power Supply - G9
- Power Capacity: 1400 Watt / 1583 VA
- Input Voltage: 200V - 240V AC
- Input Voltage Range: 180V - 264V AC
- Frequency Required: 50 - 60 Hz
- Efficiency: 94%
- 80 PLUS Certification: 80 PLUS Platinum
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
Option Part Number: 720620-B21
Spare Part Number: 754383-001
Model Number: DPS-1400CB A
Assembly Number: 733428-101
HPE GPN: 733427-001
General
Device Type: Power Supply - Hot-Plug / Redundant - Plug-in Module
Specification Compliance: Flex Slot
Cooling: Active Fan
Power Device
Power Capacity: 1400 Watt / 1583 VA
Input Voltage: 200V - 240V AC
Input Voltage Range: 180V - 264V AC
Frequency Required: 50 - 60 Hz
Efficiency: 96%
80 PLUS Certification: 80 PLUS Platinum
Miscellaneous
Compliant Standards: UL, TUV, C-Tick, BSMI, cUL, CCC, KCC, WEEE, CISPR
Environmental Parameters
Min Operating Temperature: 5 °C (41 °F)
Max Operating Temperature: 55 °C (131 °F)
Humidity Range Operating: 5 - 95% (non-condensing)
Dimensions & Weight
Height: 2.68 inch (6.80 cm)
Width: 1.59 inch (4.04 cm)
Depth: 8.87 inch (22.53 cm)
Weight: 3.00 lbs (1.36 kg)
Dimensions & Weight (Shipping)
Shipping Height: 19.05 cm
Shipping Width: 14.61 cm
Shipping Depth: 37.47 cm
Shipping Weight: 2.04 kg
Compatibility Information
Designed for
HPE Apollo 4510 Gen9 (1400 Watt), 4520 Gen9 (1400 Watt), 4530 Gen9 (1400 Watt)
HPE ProLiant DL Series: DL360 Gen9 (1400 Watt), DL360 Gen9 Base (1400 Watt), DL360 Gen9 CMS (1400 Watt), DL360 Gen9 Entry (1400 Watt), DL360 Gen9 Performance (1400 Watt), DL380 Gen9 (1400 Watt), DL380 Gen9 Base (1400 Watt), DL380 Gen9 Entry (1400 Watt), DL380 Gen9 Performance (1400 Watt)
HPE ProLiant ML Series: ML350 Gen9 (1400 Watt)
HPE SimpliVity 380 Gen9 Node (1400 Watt)
Specifications
| Other features | |
|---|---|
| Power supply type | Flex Slot |
| Certificates | |
| 80 PLUS certification | 80 PLUS Platinum |
| Weight & dimensions | |
| Weight | 1.36 kg |
| Height | 225.3 mm |
| Depth | 40.4 mm |
| Width | 68 mm |
| Design | |
| Product colour | Grey |
| Performance | |
| Purpose | Server |
| Power | |
| Efficiency | 94% |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 1400 W |
