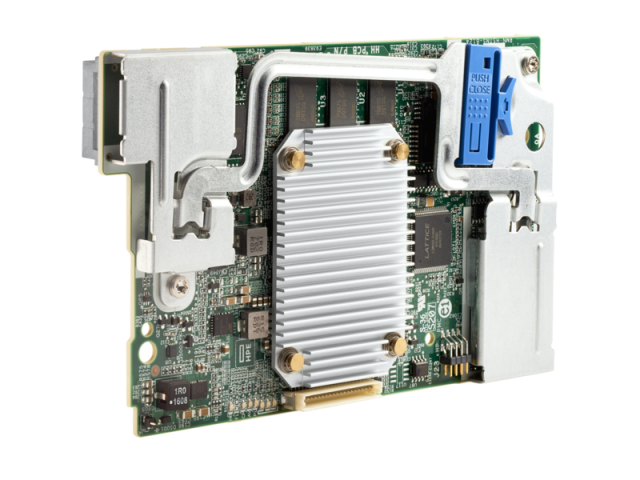

HPE Smart Array P204i-b SR Gen10 (4 Internal Lanes/1GB Cache) 12G SAS Modular Controller
- For HPE ProLiant BL Series: BL460c Gen10
- Interface: SATA 6Gbps / SAS 12Gbps
- Buffer Size: 1 GB
- Channel Qty: 4
- RAID Level: RAID 0/RAID 1/RAID 5/RAID 6/RAID 10/RAID 1 ADM/FIPS 140-2 Level 1
- Maximum LUNs: 64
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
Option Part Number: 804367-B21
Spare Part Number: 836263-001
General
Device Type: Storage Controller (RAID) - Plug-in Card
Host Bus: PCIe 3.0 x8
Features: Flash Backed Write-back Cache (FBWC)
Storage Controller
Interface: SATA 6Gb/s / SAS 12Gb/s
Data Transfer Rate: 12 Gbit/s
Buffer Size: 1 GB
Supported Devices: Hard Drive, Disk Array (RAID)
Channel Qty: 4
RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 1 ADM
Maximum LUNs: 64
Expansion & Connectivity
Interfaces: 1 x SATA 6Gb/s / SAS 12Gb/s (internal)
Miscellaneous
Compliant Standards: FIPS 140-2 Level 1
Software / System Requirements
OS Required: Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server
Compatibility Information
Designed for
HPE ProLiant BL Series: BL460c Gen10
Specifications
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Algemeen | |
| Productfamilie | SmartArray |
| Performance | |
| Certification | FIPS 140-2 Level 1 Implementation Under Test with expected validation in 2018 |
| RAID levels | 0, 1, 1 ADM, 5, 6, 10 |
| Ports & interfaces | |
| Host interface | PCI Express x8 |
| Supported storage drive interfaces | PCI Express 3.0, SAS-4 |
