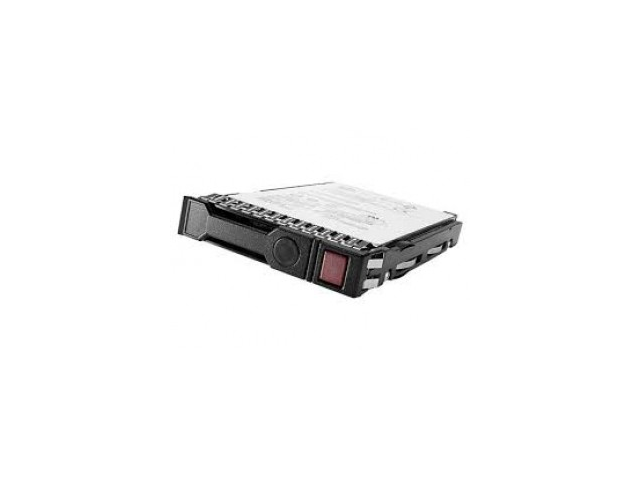

832414-B21 HPE 480GB SATA 6G Mixed Use-2 SFF 2.5in SC 5300M DS SSD G8-G10

this product is refurbished

€ 150,00 Excl. VAT (€ 181,50 Incl. VAT)

Available immediately

Part number: 832414-B21 ,832454-001

480 GB SATA 6Gbps
Mixed Use (MU)
Reads: 535 MBps(64500 IOPS) / Writes: 380 MBps (26000 IOPS)
Digitally Signed (DS) Firmware
2.5-inch Small Form Factor (SFF)
in Smart Carrier (SC) for G8 G9 G10 servers

Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.

Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).

Please read the product description carefully and contact us if you have any questions.

Description

Option Part Number: 832414-B21
Spare Part Number: 832454-001
Model Number: LK0480GFJSK
Assembly Number: 804612-006

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 480 GB
Form Factor: 2.5 inch SFF
Interface: SATA 6Gbps
Flash Type: eMLC
Bytes per Sector: 512
Carrier Type: Smart Carrier (SC)
Workload Type: Mixed Use
Plug Type: Hot Plug
Features: Digitally Signed Firmware
Bundled with: HPE Smart Carrier (SC)
Height: 15 mm

Performance

Endurance DWPD: 3
Drive Transfer Rate: 6 Gb/sec (external)
MAX Seq. Reads Throughput (MiB/s): 535
MAX Seq. Writes Throughput (MiB/s): 380
Random Read Average Latency uSec (4KiB,Q1): 110
Random Write Average Latency uSec (4KiB,Q1): 45
Random Read IOPS (4KiB, Q=16): 64500
Random Write IOPS (4KiB, Q=16): 26000
MAX Random Read IOPS (4KiB): 71000Q32
MAX Random Write IOPS (4KiB): 26000Q4
4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 45000
4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 36000

Expansion & Connectivity

Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Idle Time: 1.18 Watts
Random Read: 2.60 Watts
Random Write: 2.60 Watts
Sequential Read: 3.06 Watts
Sequential Write: 5.12 Watts
Random R/W: 2.60 Watts

Environmental Parameters

Min Operating Temperature: 32 °F
Max Operating Temperature: 140 °F

Compatibility Information

Designed for

HPE ProLiant DL Series: DL120 Gen9 (2.5 inch), DL120 Gen9 Entry (2.5 inch), DL160 Gen9 (2.5 inch), DL160 Gen9 Base (2.5 inch), DL160 Gen9 Entry (2.5 inch), DL160 Gen9 Performance (2.5 inch), DL180 Gen9 (2.5 inch), DL180 Gen9 Base (2.5 inch), DL180 Gen9 Entry (2.5 inch), DL180 Gen9 Storage (2.5 inch), DL320e Gen8 (2.5 inch), DL320e Gen8 Base (2.5 inch), DL320e Gen8 Entry (2.5 inch), DL320e Gen8 Performance (2.5 inch), DL320e Gen8 Special Server (2.5 inch), DL320e Gen8 v2 (2.5 inch), DL320e Gen8 v2 Base (2.5 inch), DL320e Gen8 v2 Entry (2.5 inch), DL320e Gen8 v2 Performance (2.5 inch), DL360 Gen9 (2.5 inch), DL360 Gen9 Base (2.5 inch), DL360 Gen9 CMS (2.5 inch), DL360 Gen9 Entry (2.5 inch), DL360 Gen9 Performance (2.5 inch), DL360 Gen9 Special Server (2.5 inch), DL360e Gen8 Special Server (2.5 inch), DL360p Gen8 (2.5 inch), DL360p Gen8 CMS (2.5 inch), DL360p Gen8 Performance (2.5 inch), DL360p Gen8 Special Server (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch), DL380 Gen9 Entry (2.5 inch), DL380 Gen9 High Performance (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL380p Gen8 Performance (2.5 inch), DL385p Gen8 (2.5 inch), DL385p Gen8 Dedicated Workload (2.5 inch), DL385p Gen8 Entry (2.5 inch), DL385p Gen8 Storage (2.5 inch), DL385p Gen8 Storage Centric (2.5 inch), DL388 Gen9 (2.5 inch), DL388 Gen9 Base (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 Database (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch), DL60 Gen9 (2.5 inch), DL60 Gen9 Base (2.5 inch), DL60 Gen9 Entry (2.5 inch), DL80 Gen9 (2.5 inch), DL80 Gen9 Base (2.5 inch), DL80 Gen9 Entry (2.5 inch)

HPE ProLiant ML Series: ML110 Gen9 (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch), ML150 Gen9 (2.5 inch), ML150 Gen9 Base (2.5 inch), ML150 Gen9 Entry (2.5 inch), ML150 Gen9 Performance (2.5 inch), ML310e Gen8 (2.5 inch), ML310e Gen8 Base (2.5 inch), ML310e Gen8 Entry (2.5 inch), ML310e Gen8 Performance (2.5 inch), ML310e Gen8 v2 (2.5 inch), ML310e Gen8 v2 Base (2.5 inch), ML310e Gen8 v2 Entry (2.5 inch), ML310e Gen8 v2 Performance (2.5 inch)

HPE ProLiant XL Series: XL230a Gen9 Compute Tray (2.5 inch), XL230a Gen9 Compute Tray (12G) (2.5 inch), XL230a Gen9 Compute Tray (6G) (2.5 inch), XL250a Gen9 Accelerator Tray (2.5 inch)

PLEASE NOTE: Refurbished products have a 90-day warranty period, unless stated otherwise.

Other features
Internal	Yes
Weight & dimensions
Weight	450 g
Height	139.7 mm
Depth	222.3 mm
Width	184.2 mm
Design
Product colour	Aluminium, Black
SSD form factor	2.5"
Performance
Random write (4KB)	26000 IOPS
Random read (4KB)	64000 IOPS
Data transfer rate	6 Gbit/s
HDD interface	Serial ATA III
SSD capacity	480 GB
