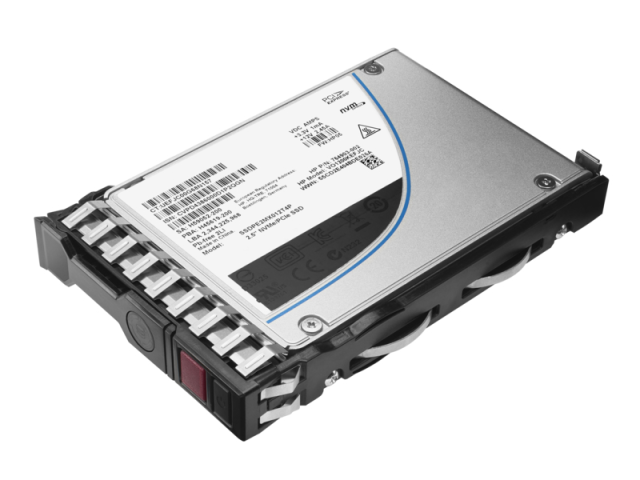

878014-B21 HPE 375GB NVMe Gen3 High Performance Low Latency Write Intensive SFF SCN U.2 P4800X SSD
- 375GB Solid State Drive (SSD)
- Write Intensive (WI)
- Max Reads: 2550 MBps / Max Writes: 2150 MBps
- 2.5inch small form factor (SFF)
- NVMe x4
- Smart Carrier Non-Volatile Memory Express (SCN)
- Digitally Signed Firmware (DS)
- For NVMe Enabled Proliant /Synergy G9 G10 (Gen9 Gen10) server
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
Option Part Number: 878014-B21
Spare Part Number: P02559-001
Model Number: EO000375KWJUC
Assembly Number: 877718-001
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 375 GB
Form Factor: 2.5 inch SFF
Interface: PCI Express x4 (NVMe)
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier NVMe (SCN)
Workload Type: Write Intensive (WI)
NAND Flash Memory Type: Multi-Level Cell (MLC)
Connectivity: Single Port
Bundled with: HPE Smart Carrier NVMe (SCN)
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15.00 mm (0.60 inch)
Performance
30 Days Writes: 20500
Endurance DWPD (Drive Writes Per Day): 30
MAX Seq Reads Throughput (MiB/s): 2550
Max Seq Writes Throughput (MiB/s): 2150
Random Read Avg. Latency uSec (4KiB,Q1): 17
Random Write Avg. Latency uSec (4KiB,Q1): 17
Random Read IOPS (4KiB, Q=16): 585000
Random Write IOPS (4KiB, Q=16): 550000
Max Random Read IOPS (4KiB): 585000@Q16
Max Random Write IOPS (4KiB): 550000@Q16
Expansion & Connectivity
Interfaces: 1 x PCI Express x4 (NVMe)
Compatible Bay: 2.5" SFF
Power Consumption
Idle Time: 4.00 Watt
Random Read: 5.16 Watt
Random Write: 5.16 Watt
Sequential Read: 8.50 Watt
Sequential Write: 12.20 Watt
Random Read/Write: 5.16 Watt
Maximum: 13.00 Watt
Compatibility Information
Designed for
HPE ProLiant BL Series: BL460c Gen9 (2.5inch), BL460c Gen9 Base (2.5inch), BL460c Gen9 Entry (2.5inch), BL460c Gen9 Performance (2.5inch), BL660c Gen9 (2.5inch)
HPE ProLiant DL Series: DL325 Gen10 Base (2.5inch), DL325 Gen10 Plus (2.5inch), DL325 Gen10 Plus All-NVMe Flash Node for Qumulo (2.5inch), DL325 Gen10 Plus for Weka Base Tracking (2.5inch), DL325 Gen10 Plus for Weka Expansion Tracking (2.5inch), DL325 Gen10 Solution (2.5inch), DL360 Gen10 All Flash Server for Datera (2.5inch), DL360 Gen9 (2.5inch), DL360 Gen9 Base (2.5inch), DL360 Gen9 CMS (2.5inch), DL360 Gen9 Entry (2.5inch), DL360 Gen9 High Performance (2.5inch), DL360 Gen9 Performance (2.5inch), DL360 Gen9 Special Server (2.5inch), DL560 Gen10 (2.5inch), DL560 Gen10 Base (2.5inch), DL560 Gen10 Entry (2.5inch), DL560 Gen10 for SAP HANA Compute Block (2.5inch), DL560 Gen10 Performance (2.5inch), DL580 Gen10 (2.5inch), DL580 Gen10 Base (2.5inch), DL580 Gen10 Entry (2.5inch), DL580 Gen10 Performance (2.5inch)
Specifications
| Weight & dimensions | |
|---|---|
| Height | 15 mm |
| Features | |
| Harmonized System (HS) code | 84717070 |
| Power | |
| Power consumption (write) | 12.2 W |
| Power consumption (read) | 8.5 W |
| Design | |
| Product colour | Aluminium, Black |
| SSD form factor | 2.5" |
| Performance | |
| Maximum write (4KB) | 550000 IOPS |
| Maximum read (4KB) | 585000 IOPS |
| Random write (4KB) | 550000 IOPS |
| Random read (4KB) | 585000 IOPS |
| PCI Express interface data lanes | x4 |
| Latency (write) | 17 µs |
| Latency (read) | 17 µs |
| Memory type | MLC |
| NVM Express (NVMe) supported | Yes |
| Component for | Server/workstation |
| Write speed | 2150 MB/s |
| Read speed | 2550 MB/s |
| HDD interface | PCI Express 3.0 |
| SSD capacity | 375 GB |
