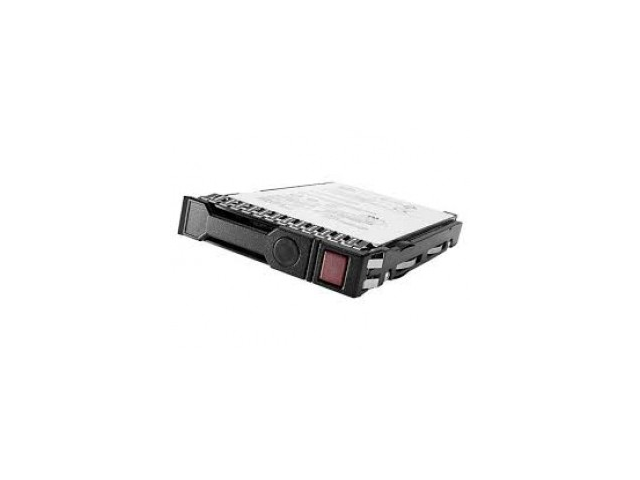

717971-B21 HPE 480GB SATA 6G Value Endurance SFF 2.5in SC Enterprise Value SSD

this product is refurbished

€ 149,58 Excl. VAT (€ 180,99 Incl. VAT)

2-4 working days

Part number: 717971-B21 ,718138-001

480GB hot-plug Solid State Drive (SSD) - SATA interface
6Gb/sec transfer rate
2.5-inch small form factor (SFF)
Value Endurance (VE)
SmartDrive Carrier (SC),supports power loss protection (PLP)
For use with Gen8 servers and beyond

Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.

Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).

Please read the product description carefully and contact us if you have any questions.

Description

Option Part Number: 717971-B21
Spare Part Number: 718138-001
Model Number: VK0480GDJXV
Assembly Number: 717968-002

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 480 GB
Form Factor: 2.5 inch SFF
Interface: SATA 6Gbps
NAND Flash Memory Type: Multi-Level Cell (MLC)
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier (SC)
Workload Type: Value Endurance (VE)
Features: Temperature sensor, End-to-end data protection, Standard Endurance Technology (SET), Enhanced Power Loss Protection, Power Failure Protection
Bundled with: HPE Smart Carrier (SC)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy

Performance

Endurance DWPD (Drive Writes Per Day): 0.3
Drive Transfer Rate: 6 Gb/sec (external)
Sequential Reads (MB/s): 480
Sequential Writes (MB/s): 400
Random Reads (IOPS): 64000
Random Writes (IOPS): 10000

Expansion & Connectivity

Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Maximum Power: 5.60 Watts

Environmental Parameters

Min Operating Temperature: 32 °F
Max Operating Temperature: 158 °F

Dimensions & Weight

Height: 0.60 inch
Width: 2.80 inch
Depth: 4.00 inch
Weight: 1.80 lbs

Compatibility Information

Designed for

HPE ProLiant BL Series: BL420c Gen8 (2.5 inch), BL460c Gen8 (2.5 inch), BL465c Gen8 (2.5 inch), BL660c Gen8 (2.5 inch), BL660c Gen8 Performance (2.5 inch), BL660c Gen9 (2.5 inch)

HPE ProLiant DL Series: DL160 Gen8 (2.5 inch), DL160 Gen8 Base (2.5 inch), DL160 Gen8 Entry (2.5 inch), DL160 Gen8 Performance (2.5 inch), DL180 Gen9 (2.5 inch), DL180 Gen9 Base (2.5 inch), DL180 Gen9 Entry (2.5 inch), DL180 Gen9 Storage (2.5 inch), DL320e Gen8 (2.5 inch), DL320e Gen8 Base (2.5 inch), DL320e Gen8 Entry (2.5 inch), DL320e Gen8 Performance (2.5 inch), DL320e Gen8 v2 (2.5 inch), DL320e Gen8 v2 Base (2.5 inch), DL320e Gen8 v2 Performance (2.5 inch), DL360 Gen9 CMS (2.5 inch), DL360 Gen9 Entry (2.5 inch), DL360e Gen8 (2.5 inch), DL360e Gen8 Base (2.5 inch), DL360e Gen8 Entry (2.5 inch), DL360e Gen8 Performance (2.5 inch), DL360e Gen8 Special Server (2.5 inch), DL360p Gen8 (2.5 inch), DL360p Gen8 Base (2.5 inch), DL360p Gen8 CMS (2.5 inch), DL360p Gen8 Entry (2.5 inch), DL360p Gen8 High Performance (2.5 inch), DL360p Gen8 Performance (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch), DL380 Gen9 Entry (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL380e Gen8 (2.5 inch), DL380e Gen8 Base (2.5 inch), DL380e Gen8 Entry (2.5 inch), DL380e Gen8 High Performance (2.5 inch), DL380e Gen8 Storage (2.5 inch), DL380p Gen8 (2.5 inch), DL380p Gen8 Base (2.5 inch), DL380p Gen8 Entry (2.5 inch), DL380p Gen8 High Performance (2.5 inch), DL380p Gen8 Performance (2.5 inch), DL380p Gen8 Special (2.5 inch), DL385p Gen8 (2.5 inch), DL385p Gen8 Dedicated Workload (2.5 inch), DL385p Gen8 Entry (2.5 inch), DL385p Gen8 Maximized Consolidation (2.5 inch), DL385p Gen8 Storage (2.5 inch), DL385p Gen8 Storage Centric (2.5 inch), DL560 Gen8 (2.5 inch), DL560 Gen8 Base (2.5 inch), DL560 Gen8 Entry (2.5 inch), DL560 Gen8 Performance (2.5 inch), DL560 Gen9 (2.5 inch), DL560 Gen9 Base (2.5 inch), DL560 Gen9 Entry (2.5 inch), DL560 Gen9 Performance (2.5 inch)

HPE ProLiant ML Series: ML110 Gen9 (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch), ML350 Gen9 (2.5 inch), ML350 Gen9 Base (2.5 inch), ML350 Gen9 Entry (2.5 inch), ML350 Gen9 Performance (2.5 inch)

HPE ProLiant WS Series: WS460c Gen8 (2.5 inch), WS460c Gen9 Graphics (2.5 inch), WS460c Gen9 Graphics Expansion (2.5 inch)

PLEASE NOTE: Refurbished products have a 90-day warranty period, unless stated otherwise.

Design
SSD form factor	2.5"
Performance
HDD interface	Serial ATA III
SSD interface	SATA
SSD capacity	480 GB
