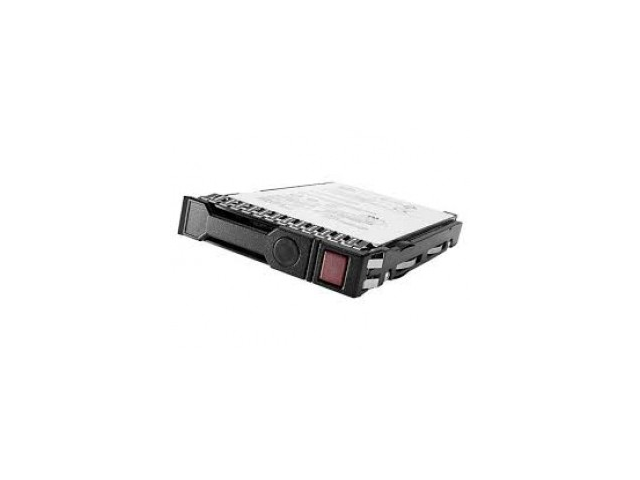

P07922-B21 HPE 480GB SATA 6G Mixed Use SFF SC S4610 SSD G9-G10
- 480 GB SATA 6Gbps
- Mixed Use (MU)
- Reads: 520 MBps(66000 IOPS) / Writes: 445 MBps (52500 IOPS)
- Digitally Signed (DS) Firmware
- 2.5-inch Small Form Factor (SFF)
- in Smart Carrier (SC) for G8 G9 G10 servers
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
Option Part Number: P07922-B21
Spare Part Number: P08690-001
Model Number: MK000480GWUGF
Assembly Number: P07444-001
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 480 GB
Form Factor: 2.5 inch SFF
Interface: SATA 6Gbps
Workload Type: Mixed Use
NAND Flash Memory Type: Triple-level cell (TLC)
Carrier Type: Smart Carrier (SC)
Features: Digitally Signed Firmware
Plug Type: Hot Plug
Bundled With: HPE Smart Carrier
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 7 mm
Performance
30 Days Writes: 4380
Endurance DWPD: 5.0
Drive Transfer Rate: 600 MBps (external)
MAX Seq. Reads Throughput (MiB/s): 520
MAX Seq. Writes Throughput (MiB/s): 445
Random Read Average Latency uSec (4KiB,Q1): 125
Random Write Average Latency uSec (4KiB,Q1): 36
Random Read IOPS (4KiB, Q=16): 66000
Random Write IOPS (4KiB, Q=16): 52500
Max Random Read IOPS (4KiB): 73500@Q32
Max Random Write IOPS (4KiB): 52500@Q1
Expansion & Connectivity
Interfaces: 1 x SATA 6Gb/s
Compatible Bay: 2.5" SFF
Power Consumption
Idle Time: 1.50 Watt
Random Read: 2.00 Watt
Random Write: 2.00 Watt
Sequential Read: 4.00 Watt
Sequential Write: 6.00 Watt
Random Read/Write: 2.00 Watt
Power MAX: 6.00 Watt
Compatibility Information
Designed For
HPE ProLiant DL Series: DL20 Gen9 (2.5 inch), DL20 Gen9 Base (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL20 Gen9 Solution (2.5 inch), DL20 Gen9 Special Server (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch), DL380 Gen9 Entry (2.5 inch), DL380 Gen9 High Performance (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block (2.5 inch), DL380 Gen9 Special (2.5 inch)
Specifications
| Weight & dimensions | |
|---|---|
| Height | 7 mm |
| Features | |
| Harmonized System (HS) code | 84717070 |
| Power | |
| Power consumption (average) | 6 W |
| Power consumption (write) | 6 W |
| Power consumption (read) | 4 W |
| Design | |
| Product colour | Aluminium, Black |
| SSD form factor | 2.5" |
| Performance | |
| Maximum write (4KB) | 52500 IOPS |
| Maximum read (4KB) | 73500 IOPS |
| Random write (4KB) | 52500 IOPS |
| Random read (4KB) | 66000 IOPS |
| Data transfer rate | 6 Gbit/s |
| Latency (write) | 36 µs |
| Latency (read) | 125 µs |
| Memory type | TLC |
| Component for | Server/workstation |
| Write speed | 445 MB/s |
| Read speed | 520 MB/s |
| HDD interface | Serial ATA III |
| SSD capacity | 480 GB |
