HPE 10Gb 2P 530SFP+ 57810S Ethernet Adapter - HPB
Different variants
- 10Gb 2-Port 530SFP+ 57810S Ethernet Adapter
- with High Profile Bracket only (HPB)

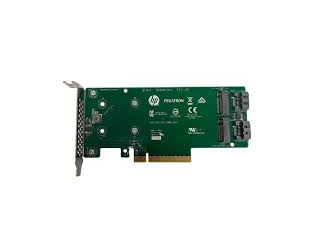

- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
Option Part Number: 652503-B21
Spare Part Number: 656244-001
Assembly Number: 652501-001
General Specifications
Device Type: Network Adapter (with High Profile Bracket only)
Form Factor: Standard and Low Profile Adapter Compliant with the PCIe Standard
Network Processor: Cavium 57810S chipset
Data Rate: Two Ports, each at 20Gbps Bi-Directional; 40Gbps Aggregate Bi-Directional Theoretical Bandwidth
Onboard Memory (Interface Type): PCI Express 2.0 (Gen 2) x8
PCI Specification Revision: PCIe 2.0
Included Accessories: Low-Profile Bracket, Full-Height Bracket
Networking Specifications
Connectivity Technology: Wired
Data Link Protocol: 10 GigE
Data Transfer Rate: 10 Gbps
Features: IPv6 Support, Jumbo Frames Support, Teaming Support, PXE Support, Large Send Offload (LSO), Receive Side Scaling (RSS), TCP Segmentation Offload (TSO)
Ports: 10Gb Ethernet x 2
Remote Management Protocol: SNMP
Status Indicators: Port Status, Link/Activity
Power Specification
Power Consumption: 9Watt Maximum
Environmental Specifications
Temperature - Operating: 0° to 55°C (32° to 131°F)
Humidity - Operating: 5% to 95% Non-Condensing
Processor / Memory
Processor: 1 x BCM57810S - Broadcom
RAM: 256 MB
Expansion & Connectivity
Compatible Slots: 1 x PCI Express 3.0 x8
Interfaces: 2 x 10Gb Ethernet - SFP+
Product Dimensions & Weight
Width: 9.50 inch
Height: 2.25 inch
Depth: 7.50 inch
Weight: 1.00 lbs
Software / System Requirements
OS Required: SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 10, Microsoft Windows HPC Server 2008, Microsoft Windows Server 2008 (32/64-bits), Oracle Solaris 10, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7
Compliant Standards
IEEE Compliance: 802.3, 802.3ae, 802.3x, 802.2x, 802.3ad, 802.1Qaz, 802.1Qau, 802.1Qbb, 802.1Qbg, 802.1ax
RoHS Compliance: 6 of 6
Agency Approvals
USA: FCC Part 15 Class A
Canada: ICES-003, Issue 4
Japan: VCCI V3 (2010.04) Class A
International: EN55022:2006 + A1:2007 Class A, EN55022:2006 + A1:2007 Class A, EN55024:1998+A1:2011+A2, EN61000-3-2:2006, EN61000-3-3:2008
Taiwan: BSMI, CNS13438 (2006) Class A
Australia/New Zealand (AS/NZS): EN55022:2006+A12007 Class A
Korea: KN22 Class A, KN24
Compatibility Information
Designed for
HPE Apollo 4200 Gen9 Server
HPE ProLiant DL Series: DL20 Gen9, DL60 Gen9, DL80 Gen9, DL120 Gen9, DL160 Gen9, DL180 Gen9, DL360 Gen9, DL360 Gen10, DL380 Gen9, DL380 Gen10, DL560 Gen9, DL560 Gen10, DL580 Gen9, DL580 Gen10 Servers
HPE ProLiant DL Series (Rack-Optimized): DL160 Gen8, DL165 Gen7, DL360e Gen8, DL360p Gen8, DL380e Gen8, DL380p Gen8, DL385p Gen8, DL580 Gen7, DL585 Gen7, DL980 Gen7 Servers
HPE ProLiant ML Series: ML30 Gen9, ML350 Gen9 Servers
HPE ProLiant ML Series (Expansion-Optimized): ML350e Gen8, ML350p Gen8 Servers
HPE ProLiant SL Series (Scalable Line): SL230s Gen8 and SL250s Gen8 Servers
HPE Apollo XL Series: 2000-XL170r Gen9, 2000-XL190r Gen9, 4500 XL450 Gen9 and 6500 XL270d Gen9 Servers
