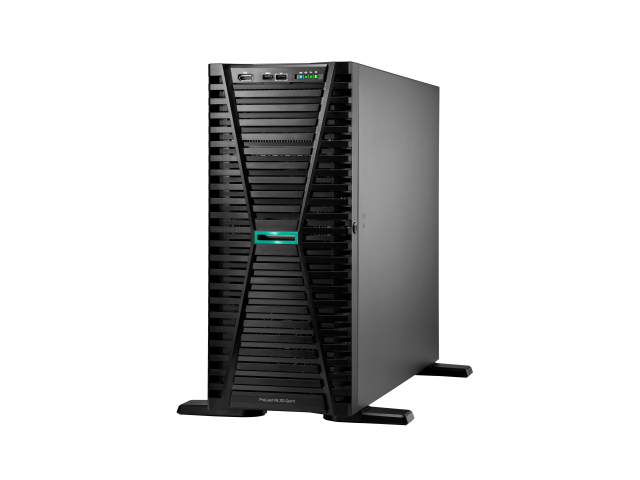

HPE ProLiant ML110 Gen11 3408U 1.8GHz 8-core 1P 16GB-R VROC 4LFF 4TB 1000W RPS Server
Different variants
- ProLiant ML110 Gen11 3408U 1.8GHz 8-core 1P 16GB-R VROC 4LFF 4TB 1000W RPS Server
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
Are you searching for an affordable tower server with enterprise-class reliability and performance to meet the requirements of your growing business? The HPE ProLiant ML110 Gen11 server is an enhanced single processor tower with performance, expansion, and security at an affordable price. It supports the 4th and 5th Gen Intel Xeon Scalable processor, HPE DDR5 SmartMemory with a maximum capacity of 1536 GB, 4 x16 PCIe Gen5 slots, 1 x16 OCP3 slot, eight large form factor (LFF) or 16 small form factor (SFF) disk drives. It can easily be converted to a rack using 5.5U of rack space. The HPE ProLiant ML110 Gen11 server also offers optional redundant fan and redundant power supply to satisfy automatic fail-over needs, making this the ideal server for small- to mid-sized businesses, and remote and branch offices.
What is new supporting point:
Powered by 4th and 5th Gen Intel Xeon Scalable Processors that support up to 32 cores, 185W TDP.
Increased memory bandwidth to 5600 MT/s[1] , performance and lower power requirements with up to 1.5 TB DDR5 memory capacity with 16 DIMM slots.
Advanced data transfer rates from the PCIe Gen5 serial expansion bus, support up to 4 standard PCIe Gen5 x16 slots and 1 OCP 3.0 x16 slots.
Includes HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly from anywhere.
Supports hot-pluggable, high-availability, RAID1 protected M.2 NVMe boot option.
Support NVIDIA RTX 4000 Ada Graphics Accelerator and L4 24GB PCIe Accelerator
Specifications
| Technical details | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Depth | 587 mm |
| Height | 462 mm |
| Width | 195 mm |
| Algemeen | |
| Productfamilie | ProLiant |
| Serie producten | ML |
| Power | |
| Number of main power supplies | 1 |
| Power supply | 1000 W |
| Redundant power supply (RPS) support | Yes |
| Software | |
| Compatible operating systems | Microsoft Windows ServerVMware ESXiRed Hat Enterprise Linux (RHEL)SUSE Linux Enterprise Server (SLES)Canonical UbuntuOracle Linux and Oracle VMCitrix |
| Operating system installed | No |
| Performance | |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Remote administration | iLO 6 ASIC |
| Design | |
| Optical drive type | No |
| Chassis type | Tower (4.5U) |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DisplayPorts quantity | 1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 3 |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom BCM5720 |
| Graphics | |
| On-board graphics adapter | Yes |
| Maximum graphics adapter memory | 16 MB |
| Storage | |
| Maximum storage capacity | 160 TB |
| Hot-Plug support | Yes |
| Number of hard drives supported | 4 |
| Supported hard disk drive sizes | 3.5" |
| Solid-state drive interface | SATA III |
| Supported RAID controllers | Embedded Intel VROC SATA/NVMe |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Hard drive interface | SATA III |
| HDD form factor | 3.5" |
| Total storage capacity | 4 TB |
| Number of HDDs installed | 1 |
| Memory | |
| Memory slots | 16x DIMM |
| ECC | Yes |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 1.02 TB |
| Internal memory | 16 GB |
| Processor | |
| Motherboard chipset | Intel C741 |
| Processor manufacturer | Intel |
| Processor cache | 22.5 MB |
| Number of processors installed | 1 |
| Processor cores | 8 |
| Processor model | 3408U |
| Processor family | Intel Xeon Bronze |
| Processor frequency | 1.8 GHz |
