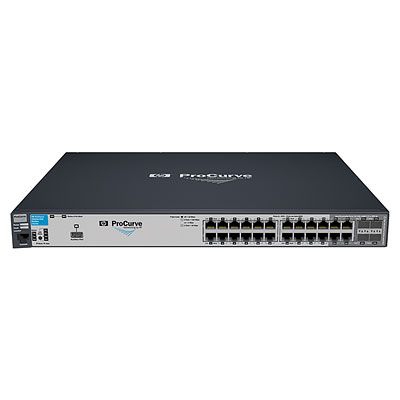

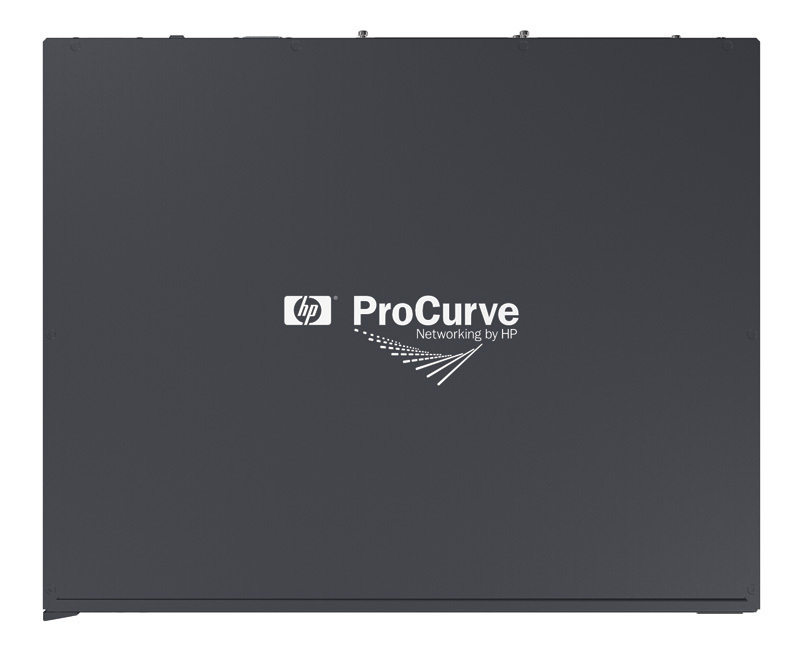

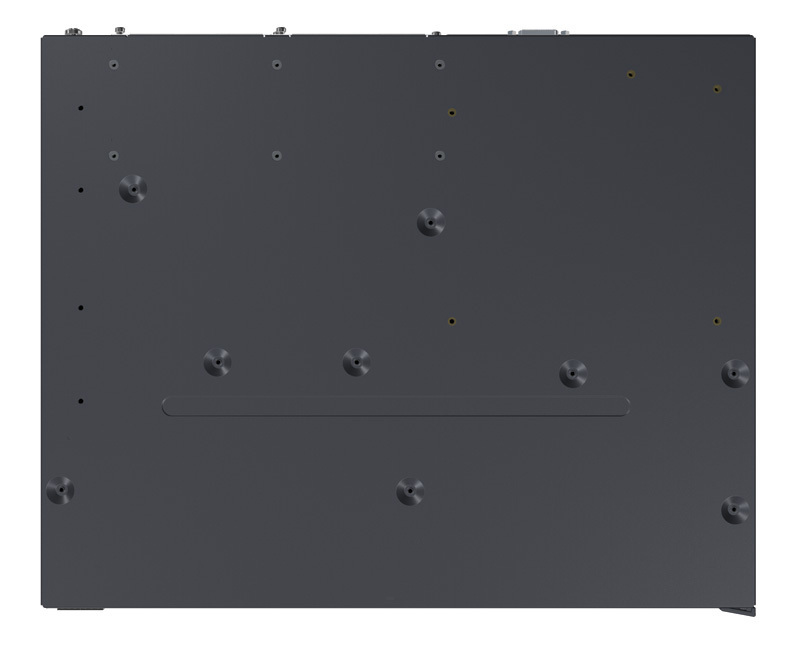

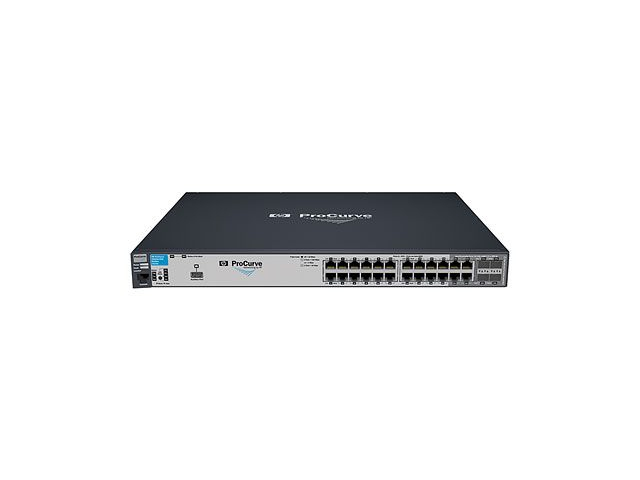

HP E2910-24G al Managed L3
- HP E2910-24G al Switch
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
The HP ProCurve 2910al Switch Series consists of four switches: the HP ProCurve 2910al-24G and 2910al-24G-PoE+ Switches with 24 10/100/1000 ports, and the HP ProCurve 2910al-48G and 2910al-48G-PoE+ Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or mini-GBIC connectivity. In addition, the 2910al switch supports up to four optional 10-Gigabit (CX4 and/or SPF+) ports, thereby offering the most flexible and easy-to-deploy uplinks in its class. Together with static and RIP IPv4 routing, robust security and management, enterprise-class features, free lifetime warranty, and free software updates, the 2910 series is a cost-effective, scalable solution for customers who are building high-performance networks. These switches can be deployed at enterprise edge and remote branch offices, converged networks, and data center top of rack.
Performance
• High-performance architecture: 128 Gbps switching fabric with up to 95 million pps (24-port switches) and 176 Gbps switching fabric with up to 131 million pps (48-port switches).
Resiliency and high availability
• IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w.
Connectivity
• 10 Gbps Ethernet connectivity: Up to four optional and flexible 10-Gigabit ports (CX4 and/or SFP+)--with optional interconnect kit for short-distance connectivity.
Layer 2 switching
• VLAN support and tagging: supports the IEEE 802.1Q (4,094 VLAN IDs) and 256 VLANs simultaneously.
Layer 3 routing
• Static IP routing: provides manually configured routing; includes ECMP capability.
Quality of Service
• Traffic prioritization (IEEE 802.1p): allows real-time traffic classification into eight priority levels mapped to eight queues.
Security
• Multiple user authentication methods: IEEE 802.1X: industry-standard method of user authentication using an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server; Web-based authentication: similar to IEEE 802.1X, provides a browser-based environment to authenticate clients that do not support the IEEE 802.1X supplicant.
Specifications
| Other features | |
|---|---|
| Networking features | Gigabit Ethernet |
| Wi-Fi | No |
| Input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 442 x 365.8 x 44 mm |
| Latency | 2.9µs/1.3µs |
| Weight & dimensions | |
| Weight | 4.95 kg |
| Operational conditions | |
| Heat dissipation | 279 BTU/h |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Power | |
| Input current | 1.7 A |
| Power consumption (typical) | 82 W |
| Performance | |
| Flash memory | 4 MB |
| Packet buffer memory | 6 MB |
| Noise level | 53.5 dB |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Processor frequency | 515 MHz |
| Processor model | ARM11 |
| Built-in processor | Yes |
| Design | |
| Electromagnetic compatibility | FCC, EN, CISPR-22, VCCI |
| Safety | EN/IEC, CAN/CSA, UL |
| Protocols | |
| Supported network protocols | IPv6, UDP, TFTP, ICMP, TCP, ARP, TELNET, BOOTP, SNTP |
| Data link protocols | LLDP |
| Management protocols | IGMPv3, SNMPv1/v2c/v3, XRMON |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, SSH, SSL/TLS |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Static port security | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Virtual LAN features | |
| Number of VLANs | 256 |
| Data transmission | |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Number of queues | 8 |
| Number of trunks | 24 |
| Throughput | 95 mpps |
| Switching capacity | 128 Gbit/s |
| Supported data transfer rates | 10/100 Mbps |
| MAC address table | 16000 entries |
| Networking | |
| 10G support | Yes |
| Flow control support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| IP routing | Yes |
| Routing entries | 2000 |
| Full duplex | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x |
| Ports & interfaces | |
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T |
| SFP/SFP+ slots quantity | 4 |
| Combo SFP ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 20 |
| Management features | |
| Web-based management | Yes |
| MIB support | MIB II, Bridge MIB, RIPv2 MIB, RMONv2 MIB, SMON MIB, Ethernet-Like-MIB, MAU MIB, Entity MIB, Ping MIB |
| Quality of Service (QoS) support | Yes |
| System event log | Yes |
| Switch layer | L3 |
| Switch type | Managed |
