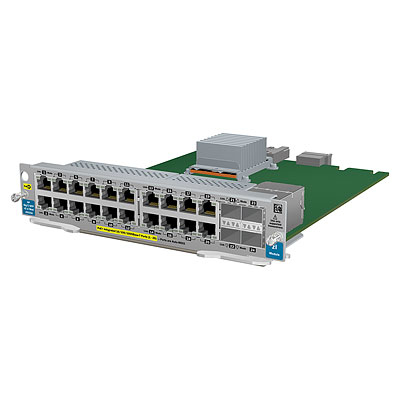

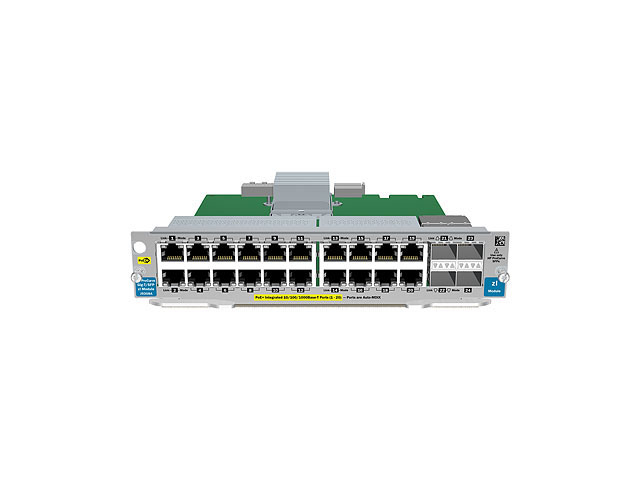

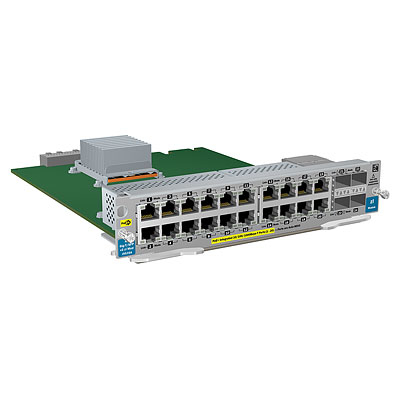

HPE 20-port Gig-T PoE+/4-port SFP v2 network switch module Gigabit Ethernet
- 4x open mini-GBIC (SFP) slots
- 20x RJ-45 10/100/1000 PoE+ (IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000Base-T
- IEEE 802.3at PoE+)
- 0.95 kg
- Grey
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
When using mini-GBICs with this product, mini-GBICs with revision "B" or later (product number ends with the letter "B" or later, e.g., J4858B, J4859C) are required.When mini-GBICs are inserted in any mini-GBIC slot of a J9308A, this limits the operating temperature range of the chassis to 32F to 104F (0C to 40C).
Specifications
| Other features | |
|---|---|
| SFP/SFP+ slots quantity | 4 |
| Weight & dimensions | |
| Dimensions (WxDxH) | 261.6 x 206.5 x 44.5 mm |
| Weight | 950 g |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Ergonomics | |
| Connectivity LEDs | Y |
| Ports & interfaces | |
| Ports quantity | 24 |
| SFP module slots quantity | 4 |
| Ethernet LAN (RJ-45) ports | 20 |
| Optical fiber | |
| Fiber optic connector | SFP |
| Networking | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Full duplex | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
