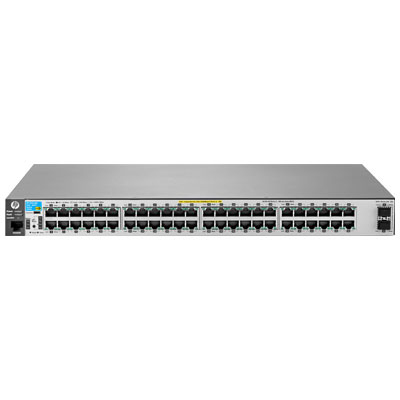

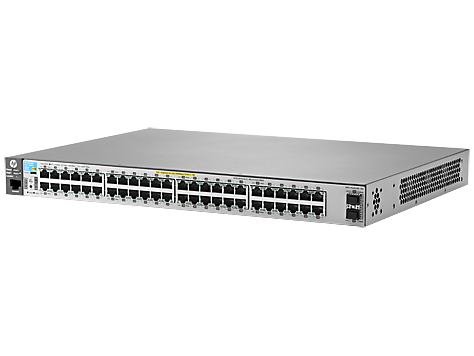

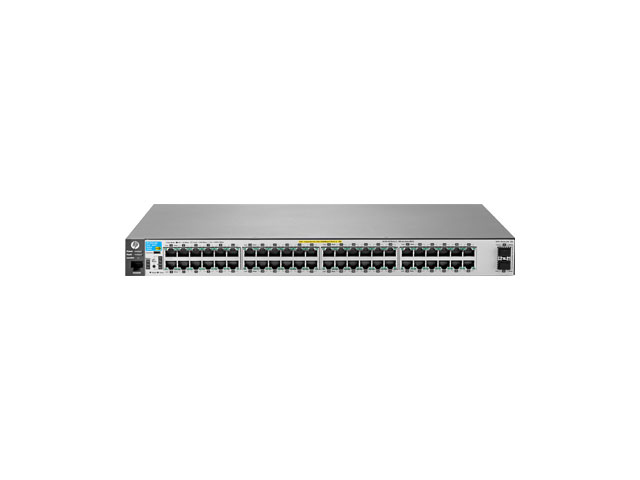

HPE 2530-48G-PoE+-2SFP+ Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Stainless steel
- 2530-48G-PoE+-2SFP+ - 48 RJ-45 10/100/1000 PoE+
- 2 SFP+ fixed 1000/10000 SFP+
- ARM9E 800 MHz
- 128 MB flash
- 136 Gb/s
- 101 Mpps
- 4.72 kg
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
The HP 2530 Switches Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and include Lifetime Warranty 2.0. The HP 2530 Switch Series is easy to use and deploy, and can be manages with the HP Intelligent Management Center (IMC) for a single view of your entire network.
Features
Cost-Effective, Reliable and Secure Access Layer Switches
The HP 2530 Switch Series provides secure, reliable and ease of use for enterprise edge, branch office, and SMB deployments.
Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and include Lifetime Warranty 2.0.
Right size deployment with choice of 8, 24, and 48 port models available with Gigabit or Fast Ethernet ports, optional PoE+ and optional 10GbE uplinks.
Power savings with fanless models, Energy Efficient Ethernet (IEEE 802.3az), and ability to disable LEDs and enable port low power mode.
Lifetime Warranty 2.0 with 3 years 24x7 phone support and no software licensing required.
Security and Quality of Service
The HP 2530 Switch Series supports flexible authentication methods including 802.1X, MAC, and Web Authentication for greater security and policy-driven application authentication.
Advanced denial of service (DOS) protection, such as DHCP Protection, Dynamic ARP protection, and Dynamic IP lockdown, and flexible traffic controls include ACLs and QoS.
Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to either two or four queues; uses weighted deficit round robin (WDRR) or strict priority (SP).
Simple Deployment and Management
The HP 2530 Switch Series supports choice of management interface with Web GUI, command-line interface (CLI) and Simple Network Management Protocol (SNMP), using console or micro USB ports.
Quiet operation with fanless and variable speed fan models.
Flexible deployment with wall, table, and rack mounting options.
Single View of the Network
The HP 2530 Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
RMON, and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
Specifications
| Weight & dimensions | |
|---|---|
| Weight | 4.72 kg |
| Weight | 4.72 kg |
| Weight | 4.72 kg |
| Height | 44.5 mm |
| Height | 44.5 mm |
| Height | 44.5 mm |
| Depth | 322.6 mm |
| Depth | 322.6 mm |
| Depth | 322.6 mm |
| Width | 443 mm |
| Width | 443 mm |
| Width | 443 mm |
| Operational conditions | |
| Heat dissipation | 215 BTU/h |
| Heat dissipation | 215 BTU/h |
| Heat dissipation | 215 BTU/h |
| Operating relative humidity (H-H) | 15 - 90% |
| Operating relative humidity (H-H) | 15 - 90% |
| Operating relative humidity (H-H) | 15 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 382 W |
| Total Power over Ethernet (PoE) budget | 382 W |
| Total Power over Ethernet (PoE) budget | 382 W |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) | Yes |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input frequency | 50 - 60 Hz |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 230 V |
| Power supply included | Yes |
| AC input voltage | 100 - 230 V |
| AC input voltage | 100 - 230 V |
| Power supply included | Yes |
| Power supply included | Yes |
| Power consumption (typical) | 439 W |
| Power consumption (typical) | 439 W |
| Power consumption (typical) | 439 W |
| Performance | |
| Flash memory | 128 MB |
| Packet buffer memory | 3 MB |
| Noise level | 36.4 dB |
| Flash memory | 128 MB |
| Packet buffer memory | 3 MB |
| Flash memory | 128 MB |
| Packet buffer memory | 3 MB |
| Noise level | 36.4 dB |
| Noise level | 36.4 dB |
| Memory type | DDR3-SDRAM |
| Memory type | DDR3-SDRAM |
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Internal memory | 256 MB |
| Internal memory | 256 MB |
| Processor frequency | 800 MHz |
| Processor frequency | 800 MHz |
| Processor frequency | 800 MHz |
| Processor model | ARM9 |
| Processor model | ARM9 |
| Processor model | ARM9 |
| Built-in processor | Yes |
| Built-in processor | Yes |
| Built-in processor | Yes |
| Virtual stacking (units) | 16 |
| Virtual stacking (units) | 16 |
| Virtual stacking (units) | 16 |
| Design | |
| Certification | FCC; EN 55022/CISPR-22; VCCI |
| Certification | FCC; EN 55022/CISPR-22; VCCI |
| Certification | FCC; EN 55022/CISPR-22; VCCI |
| Product colour | Stainless steel |
| Product colour | Stainless steel |
| Product colour | Stainless steel |
| Stackable | Yes |
| Stackable | Yes |
| Stackable | Yes |
| Protocols | |
| Management protocols | SNMPv3 |
| Management protocols | SNMPv3 |
| Management protocols | SNMPv3 |
| Security | |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, SSL/TLS |
| Access Control List (ACL) | Yes |
| SSH/SSL support | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, SSL/TLS |
| Access Control List (ACL) | Yes |
| Security algorithms | 802.1x RADIUS, SSL/TLS |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| DHCP features | DHCP server |
| DHCP features | DHCP server |
| Virtual LAN features | |
| Number of VLANs | 512 |
| Number of VLANs | 512 |
| Number of VLANs | 512 |
| VLAN support | Yes |
| VLAN support | Yes |
| VLAN support | Yes |
| Data transmission | |
| Jumbo frames support | Yes |
| Jumbo frames support | Yes |
| Jumbo frames support | Yes |
| Latency (10 Gbps) | 4 µs |
| Latency (10 Gbps) | 4 µs |
| Latency (10 Gbps) | 4 µs |
| Latency (1 Gbps) | 2.7 µs |
| Latency (1 Gbps) | 2.7 µs |
| Latency (1 Gbps) | 2.7 µs |
| Latency (10-100 Mbps) | 7.3 µs |
| Latency (10-100 Mbps) | 7.3 µs |
| Latency (10-100 Mbps) | 7.3 µs |
| Throughput | 101 Mpps |
| Throughput | 101 Mpps |
| Throughput | 101 Mpps |
| Switching capacity | 136 Gbit/s |
| Switching capacity | 136 Gbit/s |
| Switching capacity | 136 Gbit/s |
| MAC address table | 16000 entries |
| MAC address table | 16000 entries |
| MAC address table | 16000 entries |
| Networking | |
| Auto MDI/MDI-X | Yes |
| Auto MDI/MDI-X | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Full duplex | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| SFP+ module slots quantity | 2 |
| SFP+ module slots quantity | 2 |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Management features | |
| Web-based management | Yes |
| Web-based management | Yes |
| Web-based management | Yes |
| MIB support | IEEE 802.3 Ethernet |
| MIB support | IEEE 802.3 Ethernet |
| MIB support | IEEE 802.3 Ethernet |
| Quality of Service (QoS) support | Yes |
| Quality of Service (QoS) support | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch layer | L2 |
| Switch layer | L2 |
| Switch type | Managed |
| Switch type | Managed |
| Switch type | Managed |
