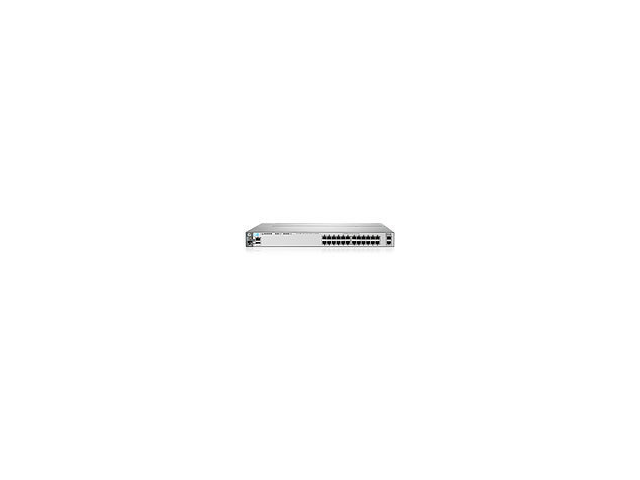

HPE 3800-24G-2XG Managed L3 Grey
this product is refurbished
€ 283,17 Excl. VAT
2-4 working days
Part number: J9585A
- Managed
- 24 x RJ-45 10/100/1000 Mbps
- 2 x RJ-45 10-GbE
- 1 x RJ-45 Console
- HP ProVision ASIC/ARM 350 MHz
- Freescale PowerPC 1200 MHz
- 4GB Flash
- Buffer 18 MB
- 2GB SDRAM
- RADIUS/TACACS+
- SSHv2
- SSL
- 19"
- 127W
- 7.17kg
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
The HP 3800 Switch Series is a family of fully managed Gigabit Ethernet switches. There are a total of nine switch models—a 24-port switch, a 48-port switch, a 24-port PoE+ switch, a 48-port PoE+ switch
with either SFP+ or 10GBASE-T uplinks, and a 24-portSFP switch with 2 SFP+ uplinks. HP 3800 Series Switches utilize the latest HP ProVision ASIC technology and combine the latest advances in hardware engineering to deliver one of the most resilient and energy-efficient switches in the industry.
The 3800 series implements meshed stacking technology to deliver chassis-like resiliency in a flexible stackable form factor.
PLEASE NOTE: Refurbished products have a 90-day warranty period, unless stated otherwise.
Specifications
| Other features | |
|---|---|
| Networking features | Gigabit Ethernet, 10G Ethernet |
| Wi-Fi | No |
| Input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
| Security features | CLI, GUI, MIB |
| Power supply | 400 W |
| Authentication method | IEEE 802.1X, RADIUS, MAC |
| Remote administration | CLI (Console/Telnet/SSH) |
| Diagnostics | LLDP |
| Diagnostics | LLDP |
| Networking features | Gigabit Ethernet, 10G Ethernet |
| Wi-Fi | No |
| Input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
| Security features | CLI, GUI, MIB |
| Power supply | 400 W |
| Authentication method | IEEE 802.1X, RADIUS, MAC |
| Remote administration | CLI (Console/Telnet/SSH) |
| Diagnostics | LLDP |
| Diagnostics | LLDP |
| Connectivity technology | Wired |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 467.4 x 442.7 x 43.2 mm |
| Dimensions (WxDxH) | 467.4 x 442.7 x 43.2 mm |
| Latency | 1.9µs |
| Latency | 1.9µs |
| Management platform | SNMP, Telnet, Web |
| Management platform | SNMP, Telnet, Web |
| Weight & dimensions | |
| Weight | 7.17 kg |
| Weight | 7.17 kg |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 15 - 90% |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating relative humidity (H-H) | 15 - 95% |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Power over Ethernet (PoE) | No |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Input current | 3 - 6 A |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Yes |
| Input current | 3 - 6 A |
| Number of power supply units | 1 |
| Power consumption (typical) | 127 W |
| Power consumption (typical) | 127 W |
| Power source | HP X311 |
| Power source | HP X311 |
| Performance | |
| Flash memory | 4096 MB |
| Packet buffer memory | 18 MB |
| Noise level | 39 dB |
| Firmware upgradeable | Yes |
| Flash memory | 4096 MB |
| Packet buffer memory | 18 MB |
| Noise level | 39 dB |
| Firmware upgradeable | Yes |
| Memory type | SDRAM |
| Memory type | SDRAM |
| Internal memory | 2048 MB |
| Internal memory | 2048 MB |
| Built-in processor | Yes |
| Built-in processor | Yes |
| Design | |
| Certification | FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class AEN 55024, CISPR 24, EN 55024, CISPR 24, IEC 61000-4-2/3/4/5/6/8/11, IEC 61000-3-2/3, EN 61000-3-2/380 PLUS GOLD |
| Certification | FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class AEN 55024, CISPR 24, EN 55024, CISPR 24, IEC 61000-4-2/3/4/5/6/8/11, IEC 61000-3-2/3, EN 61000-3-2/380 PLUS GOLD |
| Safety | EN 60950/IEC 60950, UL 60950, CAN/CSA 22.2 No. 60950, EN 60825 |
| Safety | EN 60950/IEC 60950, UL 60950, CAN/CSA 22.2 No. 60950, EN 60825 |
| Product colour | Grey |
| Product colour | Grey |
| Stackable | Yes |
| Stackable | Yes |
| Rack mounting | Yes |
| Rack mounting | Yes |
| Protocols | |
| Management protocols | SNMP v3 |
| Management protocols | SNMP v3 |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, SSH, SSL/TLS |
| Access Control List (ACL) | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, SSH, SSL/TLS |
| Access Control List (ACL) | Yes |
| Static port security | Yes |
| DHCP features | DHCP server, DHCP client |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Multicast support | Yes |
| Virtual LAN features | |
| Number of VLANs | 2048 |
| Number of VLANs | 2048 |
| Data transmission | |
| Jumbo frames support | Yes |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 10000 Gbit/s |
| Maximum data transfer rate | 10000 Gbit/s |
| Number of trunks | 24 |
| Number of trunks | 24 |
| Throughput | 65400000 pps |
| Throughput | 65400000 pps |
| Switching capacity | 88 Gbit/s |
| Switching capacity | 88 Gbit/s |
| Supported data transfer rates | 10/100/1000 Mbps |
| Supported data transfer rates | 10/100/1000 Mbps |
| MAC address table | 65500 entries |
| MAC address table | 65500 entries |
| Networking | |
| 10G support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| IP routing | Yes |
| Routing entries | 10000 |
| 10G support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| IP routing | Yes |
| Routing entries | 10000 |
| Full duplex | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u |
| Ports & interfaces | |
| ExpressCard slot | No |
| ExpressCard slot | No |
| Fiber ports quantity | 0 |
| PCI-X slots | 0 |
| Fiber ports quantity | 0 |
| PCI-X slots | 0 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T, 10GBASE-T |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T, 10GBASE-T |
| Console port | RJ-45 |
| Console port | RJ-45 |
| SFP/SFP+ slots quantity | 0 |
| SFP/SFP+ slots quantity | 0 |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Management features | |
| Web-based management | Yes |
| MIB support | Y |
| Web-based management | Yes |
| MIB support | Y |
| Quality of Service (QoS) support | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch layer | L3 |
| Switch type | Managed |
| Switch type | Managed |
