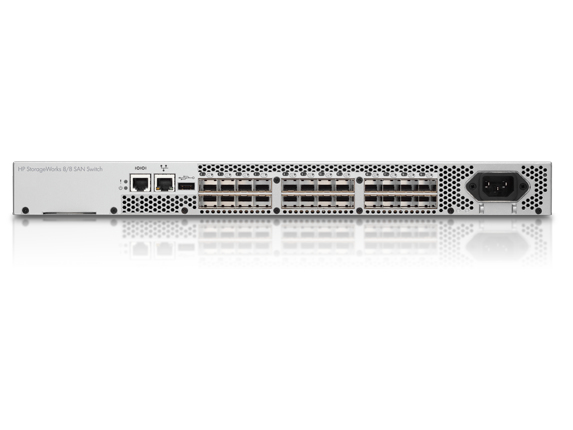

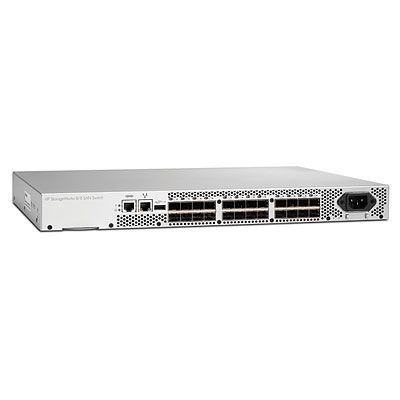

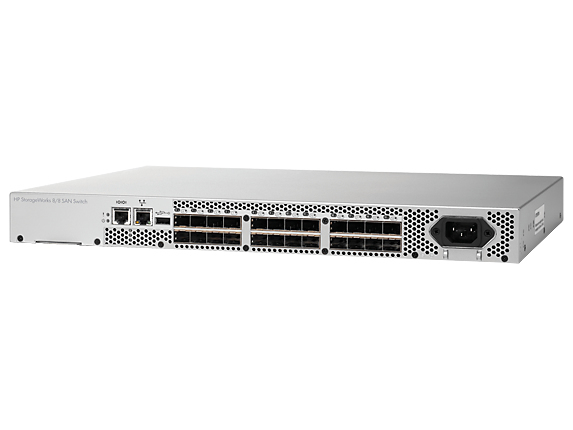

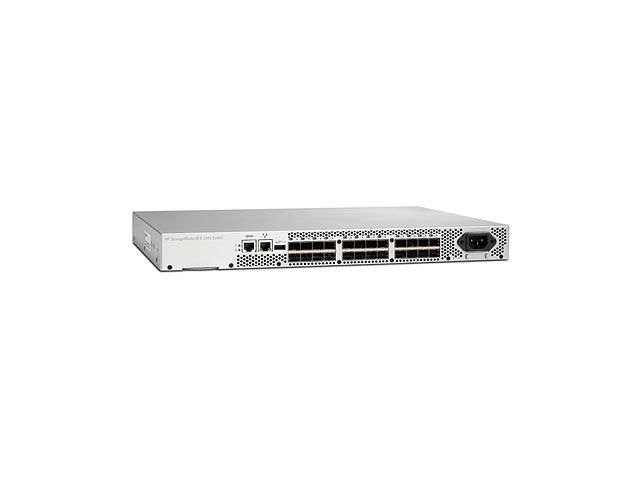

HPE AM867B network switch Managed Gigabit Ethernet (10/100/1000) 1U Grey
- 8 Active (24 Max) Full Fabric Ports Enabled SAN Switch
- 8 Gb/s Fibre Channel
- 384 Gb/s
- 1U
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
HP 8/8 SAN Switch is targeted for SMB enterprises and is ideal for entry-level SANs, and as an edge switch for core-to-edge SAN environments. The 8/8 SAN Switch provides SAN connectivity that improves system performance, maximizes the value of virtual server deployments, and reduces overall storage costs. The 8/8 Base SAN Switch provides an affordable single-switch solution for a new, small SAN installation and connects to storage and servers only.
An optional Full Fabric SAN scaling license provides connectivity to other switches. This comes with a Full Fabric license and may be connected to multiple switches.
Both 8 port switches provide growth options to non-disruptively scale to a max of 24 enabled ports. The 8/8 SAN Switch provides auto-sensing 1, 2, 4, and 8 Gb full duplex performance to enable up to 128 Gb of throughput. For investment protection, the 8/8 SAN Switch may be populated with 4 Gb B-Series SFPs today and upgraded to 8 Gb B-Series SFPS when necessary.
High Performance
Remove/avoid performance bottlenecks in high-density virtualized server environments
Enables rapid deployment with minimal configuration in existing environments; provides the highest performance available, with complete backward and forward investment protection
Enables “pay-as-you-grow” 8-port scalability for easy, non-disruptive growth in highly dynamic business environment
High Scalability
Includes simultaneous wire-speed support for all ports to provide a high-performance system with aggregate bandwidth of up to 384 Gb/s full duplex
Provides seamless server connectivity to multi-vendor fabric environments, and allows a great number of servers to connect to a SAN fabric without increasing switch domain count
Allows up to eight ports (at 2, 4, or 8 Gb/s speeds) between a pair of switches to be combined to form a single logical ISL with a speed of up to 64 Gb/s (128 Gb/s full duplex) for optimal bandwidth utilization and load balancing
Improved TCO
Optimizes fabric-wide performance and load balancing by automatically routing data to all available paths in the fabric
Simplifies SAN management, negating the need to map application performance requirements to port speeds
Advanced fabric services to optimize SAN performance and resource utilization
Investment Protection
Delivers low latency, power efficiency, and high reliability while providing a highly scalable and flexible platform for advanced fabric services
Specifications
| Weight & dimensions | |
|---|---|
| Weight | 4.22 kg |
| Height | 42.9 mm |
| Depth | 306.6 mm |
| Width | 428.8 mm |
| Operational conditions | |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 10 - 70% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Power | |
| AC input frequency | 47/63 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power consumption (typical) | 48 W |
| Design | |
| Product colour | Grey |
| Form factor | 1U |
| Rack mounting | Yes |
| Data transmission | |
| Switching capacity | 384 Gbit/s |
| Supported data transfer rates | 8 Gb/s |
| Networking | |
| 10G support | No |
| Full duplex | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Management features | |
| Switch type | Managed |
