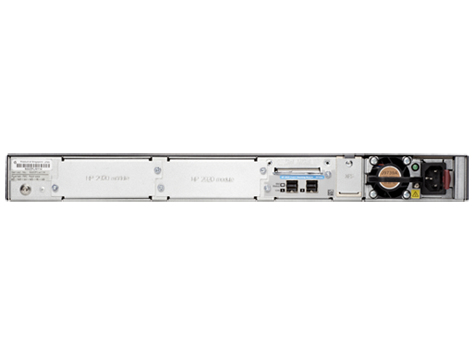

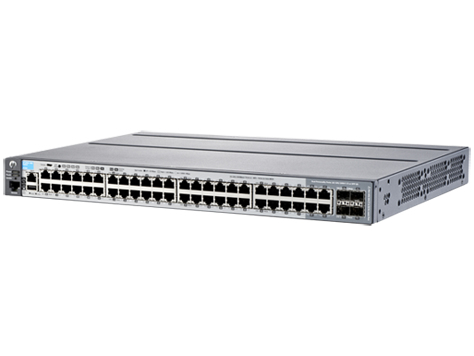

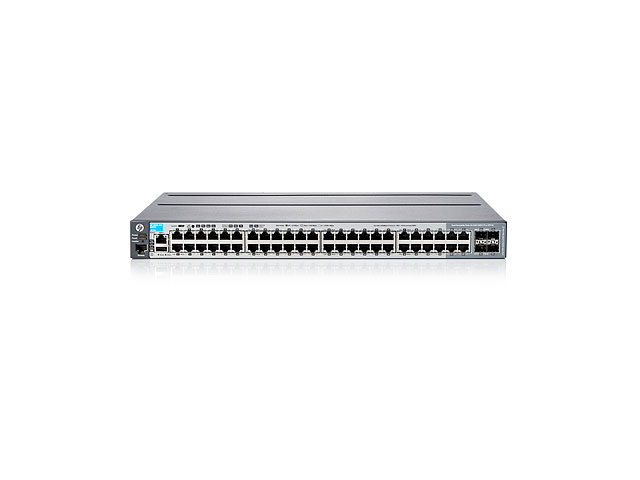

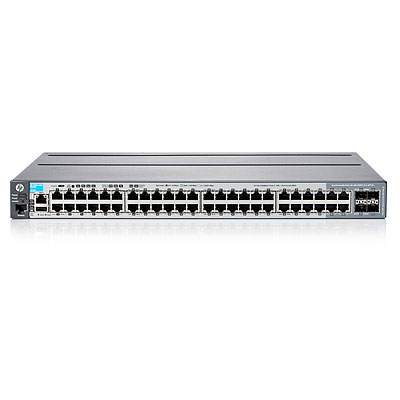

HPE Aruba Networking 2920 48G Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey
- HP 2920-48G Switch
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
The HP 2920 Switch Series consists of five switches: the HP 2920-24G and 2920-24G-PoE+ Switches with 24 10/100/1000 ports, and the HP 2920-48G and 2920-48G-PoE+ and 2920-48G 740W PoE+ Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or SFP connectivity. In addition, the 2920 switch series supports up to four optional 10 Gigabit Ethernet (SFP+ and/or 10GBASE-T) ports, as well as a two-port stacking module. These options provide you with flexible and easy-to-deploy uplinks and stacking. Together with static and RIP routing, robust security and management, enterprise-class features, free lifetime warranty, and free software updates, the HP 2920 Switch Series is a cost-effective, scalable solution for customers who are building high-performance networks. These switches can be deployed at the enterprise edge, in remote branch offices, and in converged networks.
Quality of Service (QoS)
Traffic prioritization (IEEE 802.1p): allows real-time traffic classification into eight priority levels mapped to eight queues
Connectivity
Flexible 10 Gb/s Ethernet connectivity: up to four optional 10-Gigabit ports (SFP+ and/or 10GBASE-T)
Performance
Energy-efficient design: High-efficiency power supplies: 80 PLUS Silver Certified power supply increases power savings. Energy-efficient Ethernet (EEE) support: reduces power consumption in accordance with IEEE 802.3az.
Software-defined networking
OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths
Convergence
• IP multicast snooping and data-driven IGMP: automatically prevent flooding of IP multicast traffic
Resiliency and high availability
IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w
Management
• SNMPv1, v2, and v3: provides complete support of SNMP; provide full support of industry-standard Management Information Base (MIB) plus private extensions; SNMPv3 supports increased security using encryption
Specifications
| Weight & dimensions | |
|---|---|
| Weight | 5.42 kg |
| Weight | 5.42 kg |
| Height | 44.5 mm |
| Height | 44.5 mm |
| Depth | 336 mm |
| Depth | 336 mm |
| Width | 442 mm |
| Width | 442 mm |
| Operational conditions | |
| Heat dissipation | 239 BTU/h |
| Heat dissipation | 239 BTU/h |
| Storage relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating relative humidity (H-H) | 15 - 95% |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Algemeen | |
| Productfamilie | Aruba Networking |
| Productfamilie | Aruba Networking |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Power over Ethernet (PoE) | No |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power supply included | Yes |
| Power consumption (typical) | 70 W |
| Power consumption (typical) | 70 W |
| Power source | AC |
| Power source | AC |
| Performance | |
| Flash memory | 1024 MB |
| Flash memory | 1024 MB |
| Packet buffer memory | 11.25 MB |
| Packet buffer memory | 11.25 MB |
| Memory type | SDRAM |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Internal memory | 512 MB |
| Processor frequency | 625 MHz |
| Processor frequency | 625 MHz |
| Processor model | ARM11 |
| Processor model | ARM11 |
| Built-in processor | Yes |
| Built-in processor | Yes |
| Virtual stacking (units) | 4 |
| Virtual stacking (units) | 4 |
| Design | |
| Product colour | Grey |
| Product colour | Grey |
| Form factor | 1U |
| Form factor | 1U |
| Stackable | Yes |
| Stackable | Yes |
| Rack mounting | Yes |
| Rack mounting | Yes |
| Security | |
| SSH/SSL support | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Multicast support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| VLAN support | Yes |
| Data transmission | |
| Jumbo frames support | Yes |
| Jumbo frames support | Yes |
| Latency (10 Gbps) | 3.2 µs |
| Latency (10 Gbps) | 3.2 µs |
| Latency (1 Gbps) | 3.3 µs |
| Latency (1 Gbps) | 3.3 µs |
| Latency (10-100 Mbps) | 9 µs |
| Latency (10-100 Mbps) | 9 µs |
| Throughput | 130.9 Mpps |
| Throughput | 130.9 Mpps |
| Switching capacity | 176 Gbit/s |
| Switching capacity | 176 Gbit/s |
| MAC address table | 16000 entries |
| MAC address table | 16000 entries |
| Networking | |
| 10G support | Yes |
| 10G support | Yes |
| Flow control support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Spanning tree protocol | Yes |
| Auto-sensing | Yes |
| Auto-sensing | Yes |
| Rate limiting | Yes |
| Rate limiting | Yes |
| IP routing | Yes |
| IP routing | Yes |
| Full duplex | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ports & interfaces | |
| Installed SFP+ modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Installed SFP modules quantity | 0 |
| Installed SFP modules quantity | 0 |
| Switching optical modules type | 40 Gigabit Ethernet |
| Switching optical modules type | 40 Gigabit Ethernet |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Management features | |
| Web-based management | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch layer | L3 |
| Switch type | Managed |
| Switch type | Managed |
