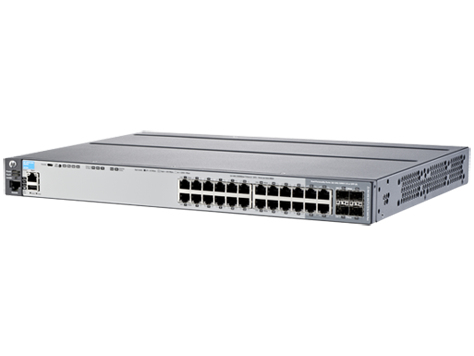

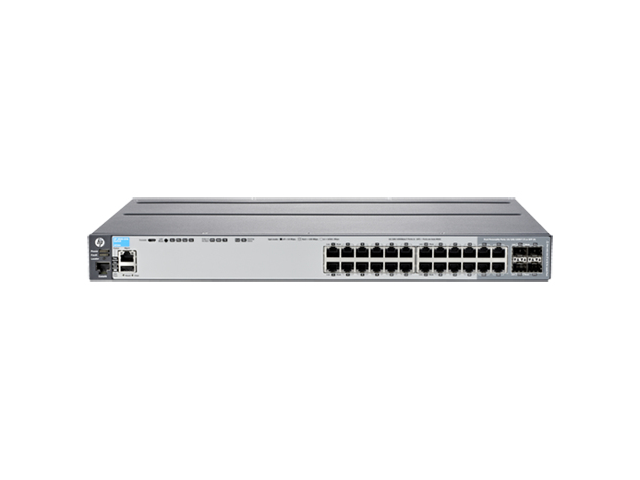

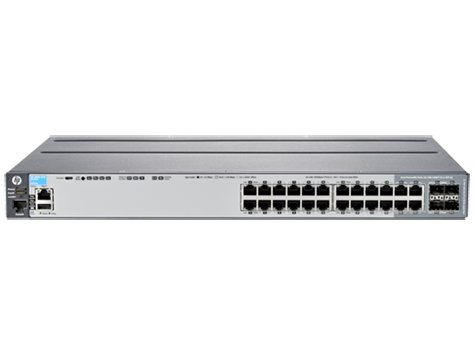

HPE Aruba Networking Aruba 2920 24G Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey
- HP 2920-24G Switch
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
The HP 2920 Switch Series provides security, scalability and ease of use for enterprise edge, SMB and branch office access layer deployments. A powerful HP Networking ASIC delivers low latency, more packet buffering, and adaptive power consumption to this robust Basic Layer 3 switch that supports modular stacking, 10GbE, RIP routing, PoE+, ACLs, sFlow and IPv6.
The HP 2920 Switch Series can be managed with the optional HP Intelligent Management Center (IMC) software for a single view of your entire network and is ready for the Software-defined Network (SDN) with OpenFlow support.
Specifications
| Weight & dimensions | |
|---|---|
| Weight | 5.25 kg |
| Height | 44.5 mm |
| Depth | 336 mm |
| Width | 442.5 mm |
| Operational conditions | |
| Heat dissipation | 198 BTU/h |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Algemeen | |
| Productfamilie | Aruba Networking |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power consumption (typical) | 58 W |
| Performance | |
| Flash memory | 1024 MB |
| Packet buffer memory | 11.25 MB |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Processor frequency | 625 MHz |
| Processor model | ARM11 |
| Built-in processor | Yes |
| Virtual stacking (units) | 4 |
| Design | |
| Product colour | Grey |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Data transmission | |
| Latency (10 Gbps) | 3.3 µs |
| Latency (1 Gbps) | 3.3 µs |
| Latency (10-100 Mbps) | 9 µs |
| Throughput | 95.2 Mpps |
| Switching capacity | 128 Gbit/s |
| MAC address table | 16000 entries |
| Networking | |
| 10G support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Auto-sensing | Yes |
| Rate limiting | Yes |
| IP routing | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Installed SFP+ modules quantity | 0 |
| Installed SFP modules quantity | 0 |
| Switching optical modules type | 40 Gigabit Ethernet |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Management features | |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
