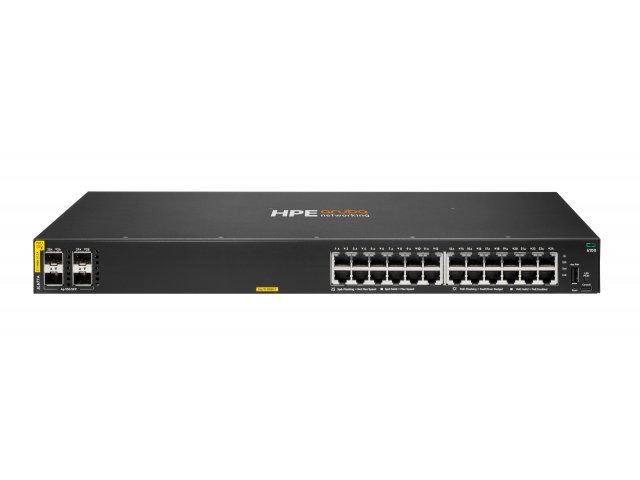

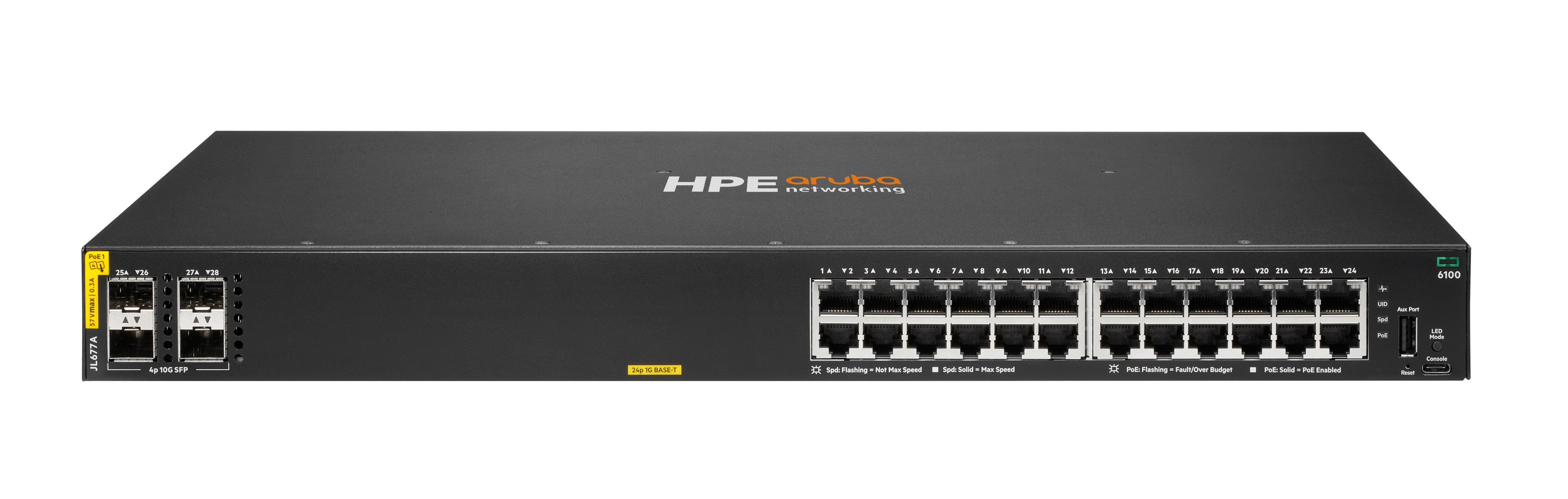

HPE Aruba Networking CX 6100 24G Class4 PoE 4SFP+ 370W Switch
- Aruba Networking CX 6100 24G Class4 PoE 4SFP+ 370W Switch
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, this switch family provides a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications. Prepare your network for tomorrow’s unpredictable demands with a powerful ASIC and the programmable HPE Aruba Networking CX Switch Operating System (AOS-CX) to deliver a more consistent, more efficient operator experience. This Layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, these switches also simplify ownership with no switch software licensing requirements.
What is new supporting point:
Simplify IT operations with next-gen Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity.
Right size with 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 740W of Class 4 PoE.
Silent deployment with compact and fanless 12-port PoE model.
Ready for software defined networking with REST APIs.
Flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI.
Specifications
| Weight & dimensions | |
|---|---|
| Weight | 3.62 kg |
| Height | 45 mm |
| Depth | 270 mm |
| Width | 443 mm |
| Operational conditions | |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Algemeen | |
| Productfamilie | Aruba Networking |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 200 - 240 V |
| Power supply included | Yes |
| Power consumption (max) | 32.7 W |
| Power source | AC |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Flash memory | 16 MB |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
| Processor frequency | 1016 MHz |
| Processor model | ARM Cortex-A9 |
| Built-in processor | Yes |
| Virtual stacking (units) | 16 |
| Design | |
| Airflow direction | Side-to-side airflow |
| Product colour | Black |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Security | |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication | MAC-based authentication |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Data transmission | |
| Jumbo frames support | Yes |
| Latency (10 Gbps) | 1.8 µs |
| Latency (1 Gbps) | 1.5 µs |
| Throughput | 95.2 Mpps |
| Switching capacity | 128 Gbit/s |
| MAC address table | 8192 entries |
| Networking | |
| 10G support | Yes |
| Flow control support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| Ports & interfaces | |
| Console port | USB |
| SFP+ module slots quantity | 4 |
| Installed SFP+ modules quantity | 0 |
| Installed SFP modules quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
