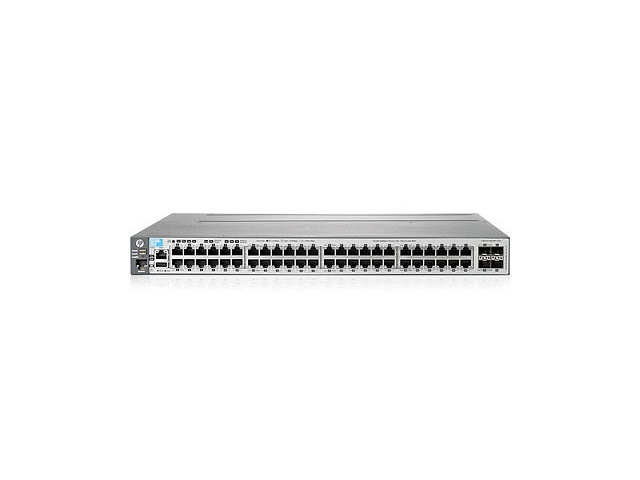

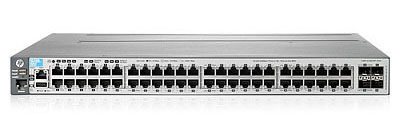

HPE Aruba Networking J9576A network switch Managed 1U Silver
- 3800-48G-4SFP+ Switch
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
The HP E3800 Switch Series is a family of fully-managed Gigabit Ethernet switches. There are a total of 9 switch models – 24 port, 48 port, 24 port PoE+, 48 port PoE+ with either SFP+ or 10GBase-T uplinks and a 24 port SFP with 2 SFP+ uplinks. HP E3800 Series Switches utilizes the latest HP ProVision ASIC technology and combines the latest advances in hardware engineering to deliver one of the most resilient and power efficient switches in the industry. The E3800 implements the HP FlexChassis Mesh technology to deliver chassis-like resiliency in a flexible stackable form-factor.
Specifications
| Other features | |
|---|---|
| Networking features | Gigabit Ethernet |
| Input frequency | 50/60 Hz |
| Power requirements | 100-240 V |
| Memory and processor | HP ProVision ASIC/ARM, PowerPC |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 467.4 x 442.7 x 43.2 mm |
| Latency | 1.9 - 2.8 |
| Management platform | PCM+, PCM, SNMP |
| Weight & dimensions | |
| Weight | 7.26 kg |
| Operational conditions | |
| Heat dissipation | 635 BTU/h |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Algemeen | |
| Productfamilie | Aruba Networking |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Power | |
| Input current | 3 - 6 A |
| Number of power supply units | 1 |
| Power consumption (typical) | 186 W |
| Power source | AC |
| Performance | |
| Flash memory | 4092 MB |
| Packet buffer memory | 36 MB |
| Noise level | 57 dB |
| Internal memory | 2048 MB |
| Processor frequency | 1200 MHz |
| Design | |
| Certification | FCC, VCCI, CISPR 22 |
| Safety | EN, IEC, UL, CAN/CSA |
| LED indicators | Yes |
| Product colour | Silver |
| Form factor | 1U |
| Rack mounting | Yes |
| Security | |
| Security algorithms | SSH |
| MAC address filtering | Yes |
| Static port security | Yes |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Data transmission | |
| Maximum data transfer rate | 10 Gbit/s |
| Throughput | 130900000 Mpps |
| Switching capacity | 176 Gbit/s |
| Supported data transfer rates | 10/100/1000 Mbps |
| MAC address table | 65500 entries |
| Networking | |
| 10G support | Yes |
| Routing entries | 10000 |
| Modulation | PCM |
| Full duplex | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ports & interfaces | |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| SFP+ module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Management features | |
| Web-based management | Yes |
| MIB support | Y |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
