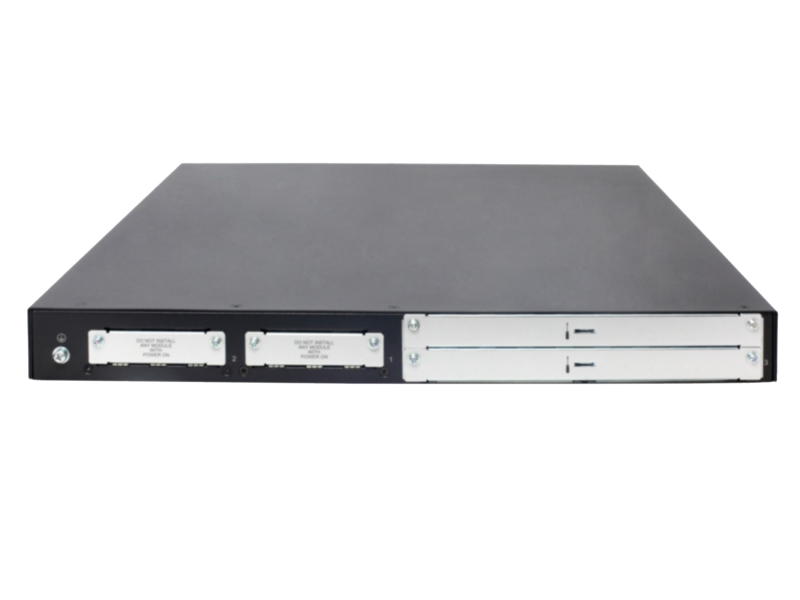

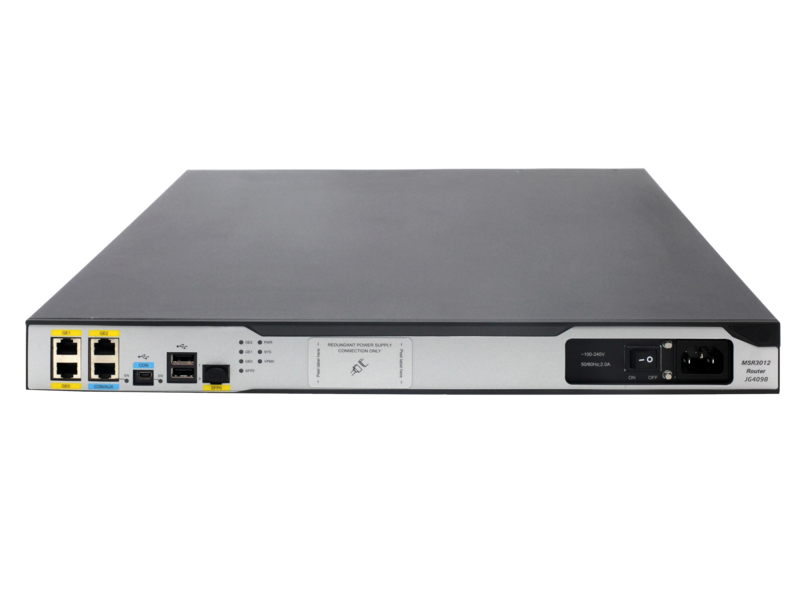

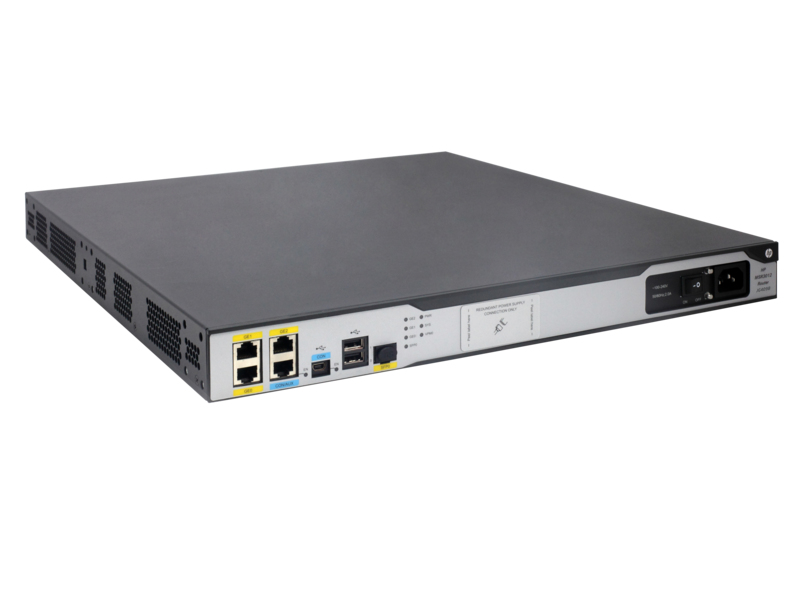

HPE MSR3012 wired router Gigabit Ethernet Grey
- MSR3012
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
The HPE MSR3000 Router Series, the next generation of router from Hewlett Packard Enterprise (HPE),
is a component of the HPE FlexBranch solution, which is a part of the comprehensive
HPE FlexNetwork architecture. These routers feature a modular design that delivers unmatched
application services for medium- to large-sized branch offices. This gives your IT personnel the
benefit of reduced complexity, and simplified configuration, deployment, and management.
The MSR3000 routers use the latest multicore CPUs, offer Gigabit switching, provide an enhanced
PCI bus, and ship with the latest version of HPE Comware software to help enable high performance
with concurrent services. The MSR3000 series provides a full-featured, resilient routing platform,
including IPv6 and Multi-Protocols Label Switching (MPLS), with up to 5 Mpps forwarding capacity
and 3.3 Gb/s of IPSec VPN encrypted throughput. These routers also support HPE Open Application
Platform (OAP) modules to deliver integrated industry-leading HPE AllianceOne partner applications
such as virtualization, unified communications and collaboration (UC&C), and application
optimization capabilities.
The MSR3000 series provides an agile, flexible network infrastructure that enables you to quickly
adapt to changing business requirements while delivering integrated concurrent services on a single,
easy-to-manage platform.
Specifications
| Other features | |
|---|---|
| Dimensions (WxDxH) | 440 x 480 x 44.2 mm |
| Certificates | |
| Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; AS/NZS 60950-1; GB 4943.1 |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
| Weight | 7.15 kg |
| Height | 44.2 mm |
| Depth | 480 mm |
| Width | 440 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power source type | AC |
| Performance | |
| Mean time between failures (MTBF) | 460425 h |
| Heat dissipation | 127 BTU/h |
| Processor frequency | 1000 MHz |
| Internal memory | 2000 MB |
| Internal memory type | DDR3 |
| Flash memory | 256 MB |
| Design | |
| Rack mounting | Yes |
| Product colour | Grey |
| Security | |
| Firewall | Yes |
| Networking | |
| Networking standards | IEEE 802.3ab |
| Forwarding rate | 2.6 Mpps |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Smart Interface Card (SIC) slots quantity | 2 |
| Installed SFP modules quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet LAN features | |
| Ethernet LAN data rates | 1000 Mbit/s |
| WAN connection | |
| 3G/4G USB modem compatibility | No |
| SIM card slot | No |
