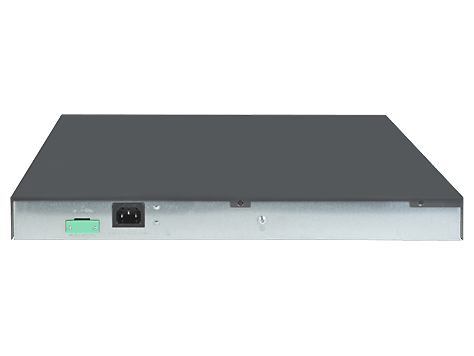

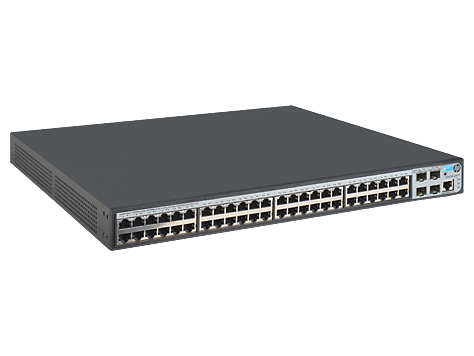

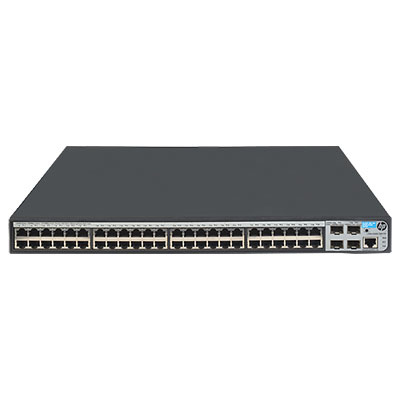

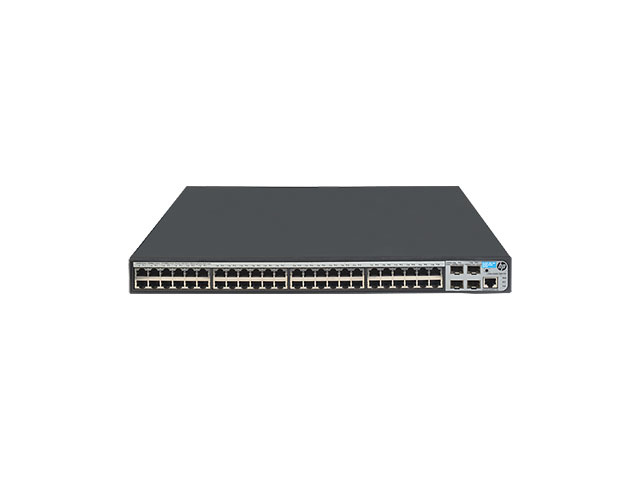

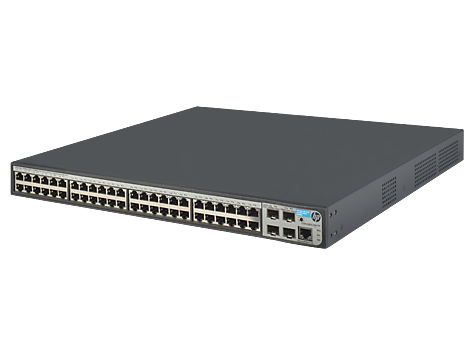

JG928A HPE Switch OfficeConnect 1920-48G-PoE+
- HPE OfficeConnect 1920-48G-PoE+ Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
The HP 1920 Switch Series, part of the HP OfficeConnect portfolio, is designed for smaller organizations dealing with bandwidth-demanding applications. The switches are ideal for environments that require advanced features for granular control and where smart-managed flexibility is a must for easy network configuration and management.
The switches deliver advanced smart-managed fixed configuration Gigabit switches that build on the marketing-leading price/performance of the HP 1910 Switch Series. They feature a new 48-port PoE+ model, IPv6 support and advanced silicon technology.
Specifications
| Other features | |
|---|---|
| I/O ports | 48 RJ-45 auto-negotiating 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3af PoE, IEEE 802.3at) 4 SFP 1000 Mbps ports Supports a maximum of 48 autosensing 10/100/1000 ports plus 4 1000BASE-X SFP ports, or a combination |
| Memory and processor | MIPS @ 650 MHz, 32 MB flash, 128 MB SDRAM; packet buffer size: 12 Mb |
| Management platform | IMC - Intelligent Management Center; limited command -line interf ace; Web browser; SNMP Manager; IEEE 802.3 Ethernet MIB |
| Weight & dimensions | |
| Weight | 4.3 kg |
| Height | 17.3 mm |
| Depth | 173.2 mm |
| Width | 173.2 mm |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 429 W |
| Design | |
| Form factor | 1U |
| Rack mounting | Yes |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
| Data transmission | |
| Latency (1 Gbps) | 5 µs |
| Latency (10-100 Mbps) | 5 µs |
| Throughput | 77.4 Mpps |
| Switching capacity | 104 Gbit/s |
| MAC address table | 16384 entries |
| Networking | |
| Routing entries | 32 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Console port | RJ-45 |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Management features | |
| Switch type | Managed |
