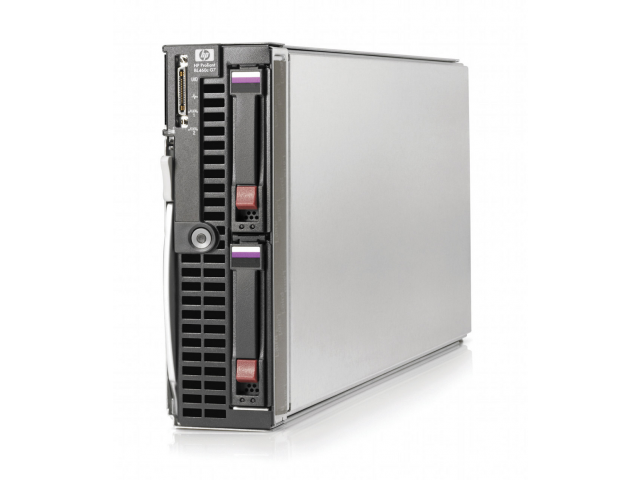

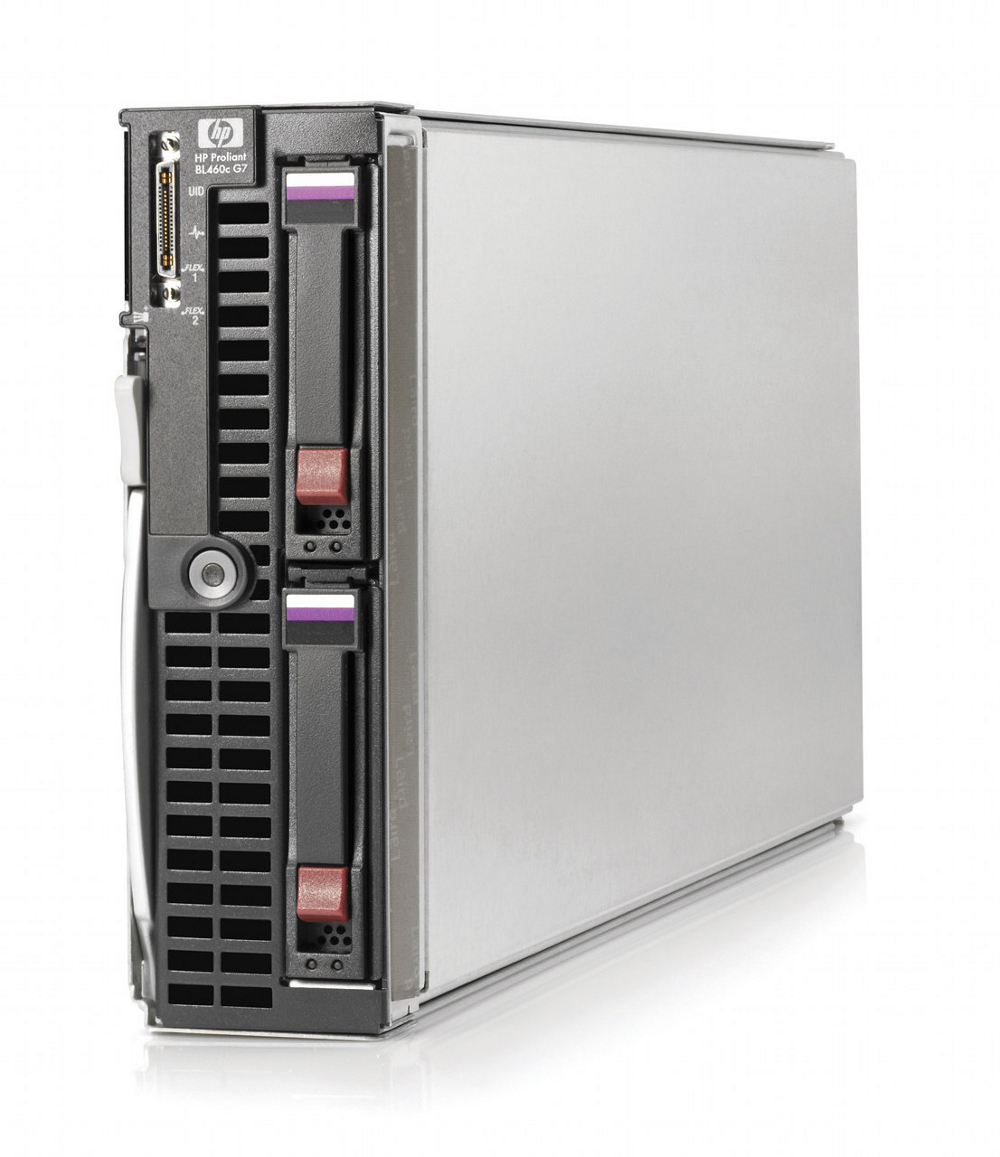

HPE 603259-B21 BL460c G7 X5650 2.66 GHz 6 GB 0GB
- HPE ProLiant 603259-B21 server BL460C G7 X5650 2,66 GHz 6 GB DDR3-SDRAM - no Storage
- Photos are indicative and may differ. SpareIT tries to represent this as correctly as possible.
Disclaimer:
Product photos and specifications are made available by Universal Databases and are often based on new products.
When the item is a 'Refurbished product' it has been tested by us and has an A-grade condition (unless otherwise stated). Refurbished items do not include cables, software media and manuals (unless otherwise stated).
Please read the product description carefully and contact us if you have any questions.
Description
As the world's most popular blade, the HP ProLiant BL460c G7 Server offers the ideal balance of performance, scalability, and expandability to make it the standard for data center computing. Packing two processors, two hot plug hard drives, up to 384 GB of memory, and a dual-port FlexFabric adapter into a half-height blade, the BL460c gives IT managers a single platform that can handle any business applications.
Dense Compute Power
- Up to two (2) two-, four-,or six-core Intel® Xeon® 5500 or 5600 series processors
- 12 DIMM slots supporting up to 384 GB of DDR-3 memory with Advanced ECC
- HP Smart Array P410i controller for hardware RAID 0 and 1, with optional cache modules for increased performance
- Up to two (2) hot plug small form factor (SFF) SAS, SATA, or SSD drives
- Internal USB and SD card slots enable simple, flexible hypervisor deployments
Integrated HP Virtual Connect FlexFabric Support
- Embedded dual-port 10 Gb FlexFabric adapter delivers high bandwidth for network intensive applications
- Simplify management and lower infrastructure costs by converging LAN and SAN traffic over the same flexible connection
- Up to eight (8) connections to network and storage without the need for add-in mezzanine cards
- Divide and fine-tune network and storage bandwidth to match application requirements
Industry-leading Infrastructure Management
- Save time and conserve valuable IT resources by simplifying remote management with HP Integrated Lights-Out 3 (iLO 3)
- Deploy servers quickly, proactively manage virtual or physical server health, and optimize power consumption with HP Insight Control
- Rapidly provision, continuously analyze, and confidently optimize your converged server infrastructure with HP Insight Dynamics
Specifications
| Other features | |
|---|---|
| Graphics adapter | G200 |
| Graphics adapter family | Matrox |
| Disk array controller | P410i |
| Weight & dimensions | |
| Depth | 509.5 mm |
| Height | 181.7 mm |
| Width | 55.6 mm |
| Algemeen | |
| Productfamilie | ProLiant |
| Serie producten | BL |
| Operational conditions | |
| Non-operating altitude | 0 - 9144 m |
| Operating altitude | 0 - 3050 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Power | |
| Number of power supply units | 0 |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 47922 |
| CPU configuration (max) | 2 |
| Intel Flex Memory Access | No |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Intel Rapid Storage Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Insider™ | No |
| Intel Clear Video Technology | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel Dual Display Capable Technology | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Software | |
| Operating system installed | No |
| Design | |
| Optical drive type | No |
| Chassis type | Blade |
| Expansion slots | |
| PCI Express x8 slots | 2 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| Serial ports quantity | 0 |
| PS/2 ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| Networking | |
| Ethernet LAN | Yes |
| Network ready | Yes |
| Storage | |
| Maximum storage capacity | 2 TB |
| Number of hard drives supported | 2 |
| RAID levels | 0, 1 |
| RAID support | Yes |
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| Memory | |
| Memory slots | 12 |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 3 x 2 GB |
| Internal memory type | DDR3-SDRAM |
| Maximum internal memory | 384 GB |
| Internal memory | 6 GB |
| Processor | |
| Conflict Free processor | No |
| Maximum number of SMP processors | 2 |
| Processor socket | Socket B (LGA 1366) |
| Motherboard chipset | Intel® 5520 |
| Processor boost frequency | 3.06 GHz |
| Processor lithography | 32 nm |
| Processor threads | 12 |
| Processor operating modes | 64-bit |
| Processor codename | Westmere EP |
| Tcase | 81.3 °C |
| Maximum internal memory supported by processor | 288 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory channels supported by processor | Triple |
| ECC supported by processor | Yes |
| Execute Disable Bit | Yes |
| Processor package size | 42.5 X 45 mm |
| Supported instruction sets | SSE4.2 |
| Embedded options available | No |
| Thermal Design Power (TDP) | 95 W |
| Stepping | B1 |
| Bus type | QPI |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 32 GB/s |
| Idle States | Yes |
| Thermal Monitoring Technologies | No |
| Processor code | SLBV3 |
| Physical Address Extension (PAE) | 40 bit |
| Processor series | Intel Xeon 5600 Series |
| FSB Parity | No |
| CPU multiplier (bus/core ratio) | 20 |
| Processor system type | DP |
| Processor manufacturer | Intel |
| System bus rate | 6.4 GT/s |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor cores | 6 |
| Processor model | X5650 |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor frequency | 2.66 GHz |
