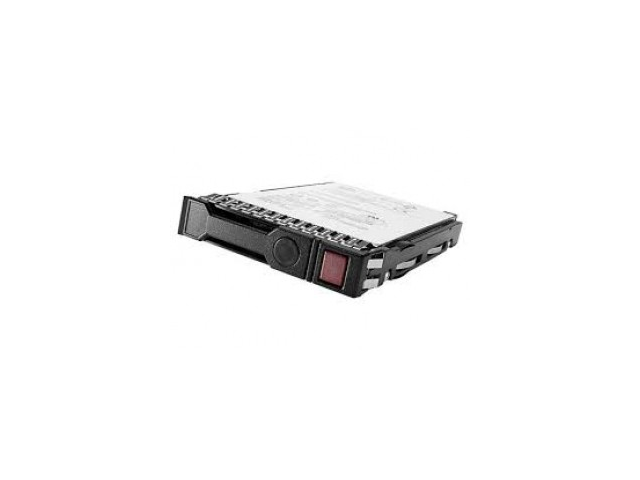

765466-B21 HPE 2TB SAS 12G Midline 7.2K SFF 2.5in SC 512e HDD G9 G10

Omschrijving

Option Part Number: 765466-B21
Spare Part Number: 765873-001
Model Number: MM2000JEFRC
Assembly Number: 765452-002
HPE GPN: 765470-004

General

Device Type: Hard Drive - Hot-Swap
Capacity: 2 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Format Type: 512e
Carrier Type: Smart Carrier (SC)
Workload Type: Midline
Plug Type: Hot Plug
Features: Advanced format 512e, Digitally Signed Firmware
Bundled with: HPE SmartDrive carrier

Performance

Drive Transfer Rate: 12 Gb/sec (external)
Average Seek Time: 8.7 ms
Max Seek Time: 17.16 ms
Track-to-Track Seek Time: 0.7 ms
Spindle Speed: 7200 RPM
OD Media Rate, Max Sequential Throughput (MiB/s): 130
128Kib Random Rd (IOPs): 105
128Kib Random 70% RD/ 30% WT (IOPs): 105
128Kib Random 50% RD/ 50% WT (IOPs): 105

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF

Power

Idle Time: 2.6 Watts
Random R/W: 3.6 Watts
Sequential Read: 4.4 Watts
Sequential Write: 3.9 Watts

Dimensions

Width: 3.10 inch
Depth: 4.70 inch
Height: 0.63 inch

Environmental Parameters

Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F

Compatibility Information

Designed for

HPE ProLiant BL Series: BL460c Gen10 (2.5 inch), BL660c Gen9 (2.5 inch)

HPE ProLiant DL Series: DL20 Gen9 (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL20 Gen9 Solution (2.5 inch), DL360 Gen10 (2.5 inch), DL360 Gen10 Base (2.5 inch), DL360 Gen10 Entry (2.5 inch), DL360 Gen10 High Performance (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Performance (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL380 Gen10 (2.5 inch), DL380 Gen10 Base (2.5 inch), DL380 Gen10 Entry (2.5 inch), DL380 Gen10 High Performance (2.5 inch), DL380 Gen10 Performance (2.5 inch), DL380 Gen10 Solution (2.5 inch), DL385 Gen10 (2.5 inch), DL385 Gen10 Base (2.5 inch), DL385 Gen10 Entry (2.5 inch), DL385 Gen10 High-Performance (2.5 inch), DL385 Gen10 Performance (2.5 inch), DL385 Gen10 Solution (2.5 inch), DL388 Gen9 (2.5 inch), DL388 Gen9 Base (2.5 inch), DL560 Gen10 (2.5 inch), DL560 Gen10 Base (2.5 inch), DL560 Gen10 Entry (2.5 inch), DL560 Gen10 Performance (2.5 inch), DL560 Gen9 (2.5 inch), DL560 Gen9 Base (2.5 inch), DL560 Gen9 Entry (2.5 inch), DL560 Gen9 Performance (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch)

HPE ProLiant ML Series: ML110 Gen10 (2.5 inch), ML110 Gen10 Performance (2.5 inch), ML110 Gen10 Solution (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch), ML30 Gen9 (2.5 inch), ML30 Gen9 Base (2.5 inch), ML30 Gen9 Entry (2.5 inch), ML30 Gen9 Performance (2.5 inch), ML30 Gen9 Solution (2.5 inch), ML350 Gen10 (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 Entry (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 Solution (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch)

HPE ProLiant XL Series: XL230a Gen9 Compute Tray (2.5 inch), XL230a Gen9 Compute Tray (12G) (2.5 inch), XL230a Gen9 Compute Tray (6G) (2.5 inch), XL230a Gen9 NHPE Compute Tray (12G), XL230k Gen10 Compute Tray (2.5 inch), XL250a Gen9 Accelerator Tray (2.5 inch)

HPE Synergy 480 Gen10 Base Compute Module (2.5 inch), 480 Gen10 Entry Compute Module (2.5 inch), 480 Gen10 Performance Compute Module (2.5 inch), 480 Gen10 Premium Backplane Compute Module (2.5 inch), 480 Gen10 Standard BackPlane Compute Module (2.5 inch), 480 Gen10 w/o Drives Compute Module (2.5 inch)
