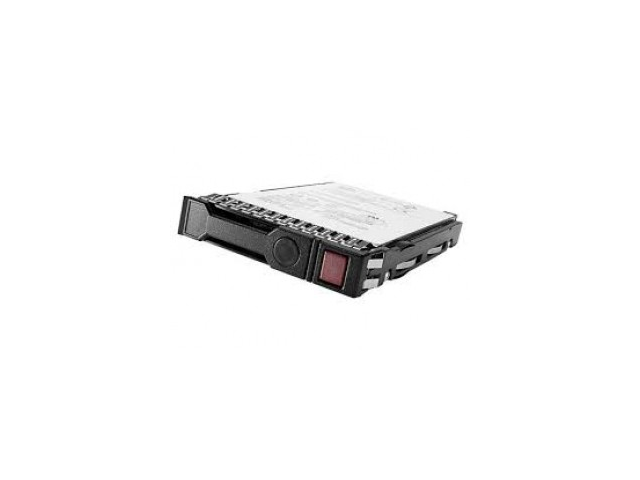

873365-B21 HPE 1.6TB SAS 12G Mixed Use SFF 2.5in SC DS SSD - G9 G10

Omschrijving

Option Part Number: 873365-B21
Spare Part Number: 873570-001
Model Number: MO001600JWDLA
Assembly Number: 868650-003
HPE GPN: 873370-008

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 1.6 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
NAND Flash Memory Type: Multi-level cell (MLC)
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier (SC)
Workload Type: Mixed Use
Bundled with: HPE Smart Carrier (SC)
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15 mm (0.6 inch)

Performance

30 Days Writes: 8500
Endurance DWPD (Drive Writes Per Day): 3.0
Drive Transfer Rate: 12 Gb/sec (external)
MAX Seq. Reads Throughput (MiB/s): 1050
MAX Seq. Writes Throughput (MiB/s): 1010
Random Read Average Latency uSec (4KiB,Q1): 105
Random Write Average Latency uSec (4KiB,Q1): 35
Random Read IOPS (4KiB, Q=16): 125000
Random Write IOPS (4KiB, Q=16): 100000
MAX Random Read IOPS (4KiB): 170000@Q64
MAX Random Write IOPS (4KiB): 100000@Q16
4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 130000
4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 120000

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Idle Time: 3.56 Watt
Random Read: 6.45 Watt
Random Write: 6.45 Watt
Sequential Read: 6.39 Watt
Sequential Write: 10.18 Watt
Random Read/Write: 6.45 Watt
Maximum: 11.00 Watt

Environmental Parameters

Min Operating Temperature: 32 °F
Max Operating Temperature: 140 °F

Compatibility Information

Designed For

HPE ProLiant DL Series: DL120 Gen9 (2.5 inch), DL120 Gen9 Entry (2.5 inch), DL160 Gen9 (2.5 inch), DL160 Gen9 Base (2.5 inch), DL160 Gen9 Entry (2.5 inch), DL160 Gen9 Performance (2.5 inch), DL160 Gen9 Thoughtspot Server (2.5 inch), DL20 Gen9 (2.5 inch), DL20 Gen9 Base (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL20 Gen9 Solution (2.5 inch), DL20 Gen9 Special Server (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch), DL380 Gen9 Entry (2.5 inch), DL380 Gen9 High Performance (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block (2.5 inch), DL380 Gen9 Special (2.5 inch), DL385 Gen10 (2.5 inch), DL385 Gen10 Base (2.5 inch), DL385 Gen10 Entry (2.5 inch), DL385 Gen10 High-Performance (2.5 inch), DL385 Gen10 Performance (2.5 inch), DL385 Gen10 Solution (2.5 inch), DL560 Gen10 (2.5 inch), DL560 Gen10 Base (2.5 inch), DL560 Gen10 Entry (2.5 inch), DL560 Gen10 Performance (2.5 inch)

HPE ProLiant ML Series: ML110 Gen10 Solution (2.5 inch), ML110 Gen9 (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch), ML150 Gen9 (2.5 inch), ML150 Gen9 Base (2.5 inch), ML150 Gen9 Entry (2.5 inch), ML150 Gen9 Performance (2.5 inch), ML350 Gen10 (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 Entry (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 Solution (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch)
