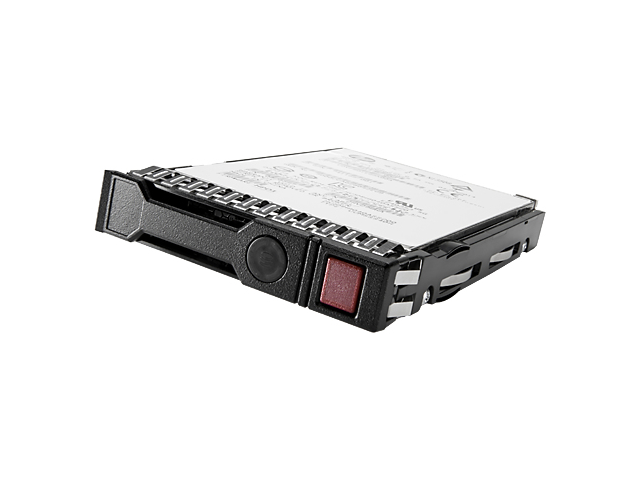

791034-B21 HPE 1.8TB SAS 12G Enterprise 10K SFF 2.5in SC 512e HDD -G8 G9 G10

Omschrijving

Option Part Number: 791034-B21
Spare Part Number: 791055-001
Model Number: EG1800JEHMD
Model Number: EG1800JEMDB
Model Number: EG1800JFHMH
Model Number: EG001800JWFVC
Assembly Number: 768789-001
Assembly Number: 765879-001
Assembly Number: 781515-001
Assembly Number: 827486-001
Assembly Number: 872287-001
HPE GPN: 793419-002

General

Device Type: Hard Drive - Hot-Swap
Capacity: 1.8 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Plug Type: Hot Plug
Format Type: 512e
Carrier Type: Smart Carrier (SC)
Workload: Enterprise
Features: Dual Port, Advanced Format 512e
Bundled with: HPE SmartDrive Carrier

Performance

Drive Rotation Speed: 10000 RPM
Transfer Rate Synchronous (Max): 12Gb/sec
Average Seek Time: 3.7 ms
Max Seek Time: 7.3 ms
Track-to-Track Seek Time: 0.1 ms

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gbps
Compatible Bay: 2.5" SFF

Dimensions

Height: 0.62 inch (15.6 mm)
Width: 2.98 inch (75.7 mm)
Depth: 4.67 inch (118.7 mm)

Environmental Parameters

Min Operating Temperature: 50° F (10° C)
Max Operating Temperature: 95° F (35° C)

Compatibility Information

Designed for

HPE ProLiant BL Series: BL460c Gen10 (2.5 inch), BL460c Gen8 (2.5 inch), BL660c Gen8 Entry (2.5 inch), BL660c Gen9 (2.5 inch) Servers

HPE ProLiant DL Series: DL180 Gen9 (2.5 inch), DL180 Gen9 Base (2.5 inch), DL180 Gen9 Entry (2.5 inch), DL180 Gen9 Storage (2.5 inch), DL20 Gen9 (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL320e Gen8 Special Server (2.5 inch), DL320e Gen8 v2 Entry (2.5 inch), DL320e Gen8 v2 Performance (2.5 inch), DL360 Gen9 (2.5 inch), DL360 Gen9 Base (2.5 inch), DL360 Gen9 CMS (2.5 inch), DL360 Gen9 Entry (2.5 inch), DL360 Gen9 Performance (2.5 inch), DL380p Gen8 Performance (2.5 inch), DL388 Gen9 (2.5 inch), DL388 Gen9 Base (2.5 inch), DL560 Gen9 (2.5 inch), DL560 Gen9 Base (2.5 inch), DL560 Gen9 Entry (2.5 inch), DL560 Gen9 Performance (2.5 inch), DL580 Gen8 (2.5 inch), DL580 Gen8 Base (2.5 inch), DL580 Gen8 High Performance (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 Database (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch) Servers

HPE ProLiant ML Series: ML110 Gen9 (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch), ML150 Gen9 (2.5 inch), ML150 Gen9 Base (2.5 inch), ML150 Gen9 Entry (2.5 inch), ML150 Gen9 Performance (2.5 inch), ML30 Gen9 (2.5 inch), ML30 Gen9 Base (2.5 inch), ML30 Gen9 Performance (2.5 inch), ML350 Gen9 (2.5 inch), ML350 Gen9 Base (2.5 inch), ML350 Gen9 Entry (2.5 inch), ML350 Gen9 Performance (2.5 inch), ML350e Gen8 v2 (2.5 inch), ML350e Gen8 v2 Base (2.5 inch), ML350e Gen8 v2 Entry (2.5 inch) Servers

HPE ProLiant WS Series: WS460c Gen8 Graphics Expansion (2.5 inch), WS460c Gen9 (2.5 inch), WS460c Gen9 Graphics (2.5 inch), WS460c Gen9 Graphics Expansion (2.5 inch) Servers

HPE ProLiant XL Series: XL230k Gen10 Compute Tray (2.5 inch), XL250a Gen9 Accelerator Tray (2.5 inch) Servers

HPE Synergy 480 Gen10 Base Compute Module (2.5 inch), 480 Gen10 Entry Compute Module (2.5 inch), 480 Gen10 Performance Compute Module (2.5 inch), 480 Gen10 Premium Backplane Compute Module (2.5 inch), 480 Gen10 Standard BackPlane Compute Module (2.5 inch), 480 Gen10 w/o Drives Compute Module (2.5 inch), 660 Gen10 Base Compute Module (2.5 inch), 660 Gen10 Compute Module (2.5 inch), 660 Gen10 Entry Compute Module (2.5 inch), 660 Gen10 Performance Compute Module (2.5 inch), 660 Gen10 Premium Compute Module (2.5 inch) Servers
