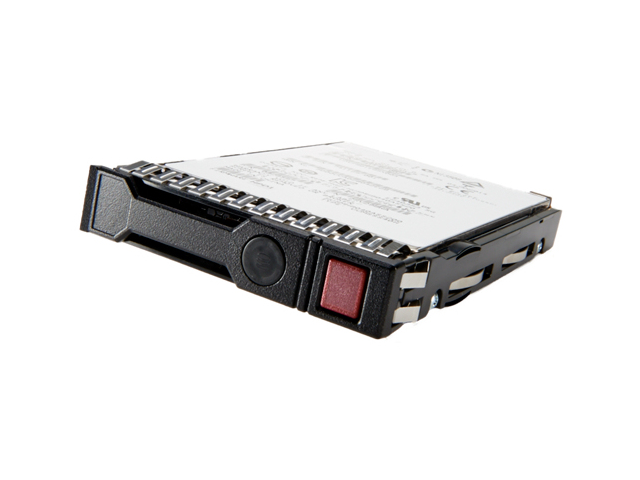

870753-B21 HPE 300GB SAS 12G Mission Critical 15K SFF SC Multi Vendor HDD G9-G10

Omschrijving

Option Part Number: 870753-B21
Spare Part Number: 870792-001
Model Number: EH0300JEDHC
Model Number: EH000300JWCPK
Model Number: EH000300JWHPL
Model Number: EH000300JWKTN
Assembly Number: 759202-001
Assembly Number: 867254-001
Assembly Number: 875217-001
Assembly Number: 880152-001
HPE GPN: 868774-004

General

Device Type: Hard Drive - Hot-Swap
Capacity: 300 GB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Format Type: 512n
Carrier Type: Smart Carrier (SC)
Workload Type: Enterprise
Plug Type: Hot Plug
Features: Advanced format 512n, Digitally Signed Firmware (DS)
Bundled with: HPE Smart Carrier (SC)

Performance

Drive Transfer Rate: 12 Gb/sec (external)
Drive Rotation Speed: 15000 RPM
Average Seek Time: 2.72 ms
Max Seek Time: 5.36 ms
Single Track Seek Time: 0.22 ms

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF

Product Dimensions

Width: 3.10 inch
Depth: 4.70 inch
Height: 0.63 inch

Environmental Parameters

Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F

Compatibility Information

Designed for

HPE ProLiant BL Series: BL460c Gen10 (2.5 inch)

HPE ProLiant DL Series: DL160 Gen9 (2.5 inch), DL160 Gen9 Base (2.5 inch), DL160 Gen9 Entry (2.5 inch), DL160 Gen9 Performance (2.5 inch), DL20 Gen9 (2.5 inch), DL20 Gen9 Base (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL20 Gen9 Solution (2.5 inch), DL20 Gen9 Special Server (2.5 inch), DL360 Gen10 (2.5 inch), DL360 Gen10 Base (2.5 inch), DL360 Gen10 Entry (2.5 inch), DL360 Gen10 High Performance (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Performance (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL360 Gen9 (2.5 inch), DL360 Gen9 Base (2.5 inch), DL360 Gen9 CMS (2.5 inch), DL360 Gen9 Entry (2.5 inch), DL360 Gen9 Performance (2.5 inch), DL360 Gen9 Special Server (2.5 inch), DL380 Gen10 (2.5 inch), DL380 Gen10 Base (2.5 inch), DL380 Gen10 Entry (2.5 inch), DL380 Gen10 High Performance (2.5 inch), DL380 Gen10 Performance (2.5 inch), DL380 Gen10 Solution (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch), DL380 Gen9 Entry (2.5 inch), DL380 Gen9 High Performance (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL380 Gen9 Special (2.5 inch), DL385 Gen10 Entry (2.5 inch), DL385 Gen10 Solution (2.5 inch), DL388 Gen9 (2.5 inch), DL388 Gen9 Base (2.5 inch), DL560 Gen10 (2.5 inch), DL560 Gen10 Base (2.5 inch), DL560 Gen10 Entry (2.5 inch), DL560 Gen10 Performance (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 Base (2.5 inch), DL580 Gen9 Database (2.5 inch), DL580 Gen9 High Performance (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch)

HPE ProLiant ML Series: ML110 Gen10 Solution (2.5 inch), ML110 Gen9 (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch), ML30 Gen9 Entry (2.5 inch), ML30 Gen9 Solution (2.5 inch), ML350 Gen10 (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 Entry (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 Solution (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch)

HPE ProLiant BL Series: XL230k Gen10 Compute Tray (2.5 inch), XL450 Gen10 (2.5 inch)
