Omschrijving

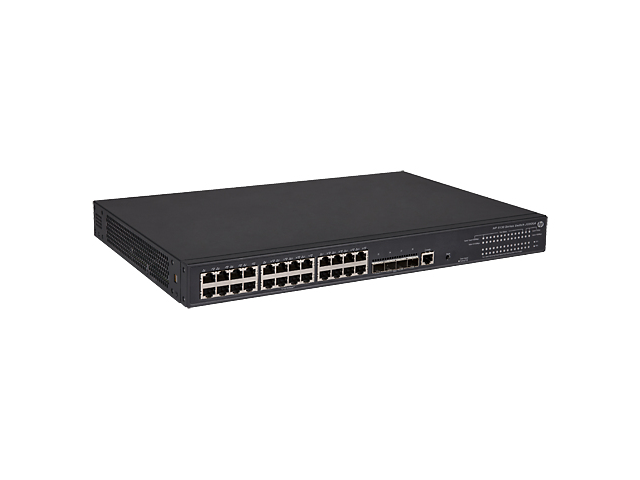

The HP 5130 EI Switch Series delivers flexibility, scalability and low TCO at the access layer of medium and large enterprise campus networks. Offering enterprise class QoS and security, HP Intelligent Resilient Framework (IRF) stacking, static layer 3 routing and RIP, convenient fixed 10GbE uplink ports, PoE+, ACLs, IPv6 and delivers energy savings with Energy Efficient Ethernet.
The HP 5130 EI Switch Series is SDN ready with OpenFlow 1.3 support, can be managed with HP Intelligent Management Center (IMC) for a single view of your entire network, and includes Lifetime Warranty 2.0.
Scalable and Flexible Access Layer Switches
• The HP 5130 EI Switch Series delivers flexibility, scalability and low TCO at the access layer of medium- and large-enterprise campus networks. The 5130 supports stacking, fixed 10GbE ports, static layer 3 routing and RIP v1/v2, PoE+, ACLs, IPv6 and power savings with Energy Efficient Ethernet.
Improved Quality of Service with Traffic Management
• The HP 5130 EI Switch Series supports advanced classifier-based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or whole switch.
Comprehensive Security Control
• The HP 5130 EI Switch Series supports flexible authentication methods including 802.1X and MAC Authentication for greater security and policy-driven application authentication.
Per-user access control lists (ACLs) provide identity-driven security and access control.
Single View of the Network
• The HP 5130 EI Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
Specificaties
Gewicht en omvang | |
---|---|
Gewicht | 8 kg |
Hoogte | 43,6 mm |
Diepte | 300 mm |
Breedte | 440 mm |
Eisen aan de omgeving | |
Warmtedissipatie | 1569 BTU/h |
Luchtvochtigheid bij opslag | 5 - 95 procent |
Relatieve luchtvochtigheid, in bedrijf | 10 - 90 procent |
Temperatuur bij opslag | -40 - 70 °C |
Temperatuur, in bedrijf | 0 - 45 °C |
Power over Ethernet (PoE) | |
Totaal Power over Ethernet (PoE)-budget | 370 W |
Aantal Power over Ethernet plus (PoE +)-poorten | 24 |
Power over Ethernet (PoE) | Ja |
Energie | |
Stroom | 10 A |
AC invoer voltage | 100 - 240 V |
Vermogenstoevoer inclusief | Ja |
Typisch stroomverbruik | 460 W |
Prestatie | |
Flash memory | 128 MB |
Packet buffergeheugen | 1,5 MB |
Geluidsniveau | 52,9 dB |
Type geheugen | SDRAM |
Intern geheugen | 1024 MB |
Design | |
Kleur van het product | Zwart |
Vormfactor | 1U |
Rack-montage | Ja |
Beveiliging | |
IGMP snooping | Ja |
Access Control List (ACL) | Ja |
DHCP-functies | DHCP server, DHCP client |
Multicast-functies | |
Multicast-ondersteuning | Ja |
Virtuele LAN-functies | |
Aantal VLANs | 4094 |
VLAN=ondersteuning | Ja |
Data-uitwisseling | |
Latentie (10 Gbps) | 1,5 µs |
Latentie (1 Gbps) | 5 µs |
Throughput | 96 Mpps |
Switchingcapaciteit | 128 Gbit/s |
MAC-adrestabel | 16384 entries |
Netwerk | |
10G support | Nee |
Datastroombeheer | Ja |
Verbindingsaggregatie | Ja |
Spanning tree protocol | Ja |
Broadcast stormbeheer | Ja |
IP routing | Ja |
Full duplex | Ja |
Netwerkstandaard | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Poorten & interfaces | |
Aantal Gigabit Ethernet (koper)-poorten | 24 |
Koperen ethernetbekabelingstechnologie | 1000BASE-T, 100BASE-TX, 10BASE-T |
Console port | RJ-45 |
Aantal moduleslots SPF+ | 4 |
Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
Aantal basis-switching RJ-45 Ethernet-poorten | 24 |
Beheerfuncties | |
MIB-ondersteuning | Y |
Quality of Service (QoS) | Ja |
Switch-laag | L3 |
Switch type | Managed |
