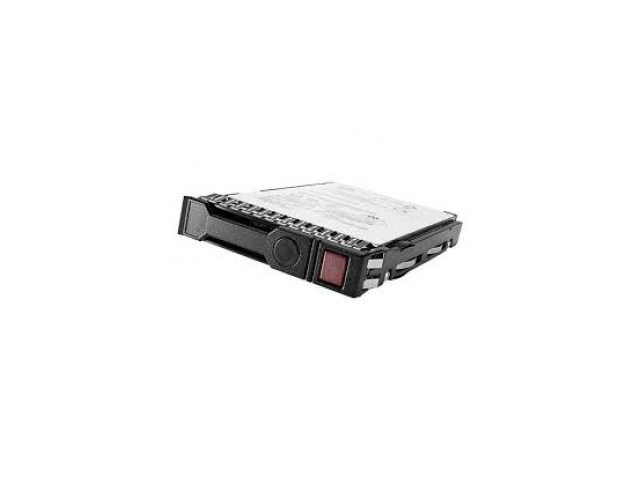

873351-B21 HPE 400GB SAS 12G Write Intensive SFF (2.5in) SC DS SSD - G9 G10

Omschrijving

Option Part Number: 873351-B21
Spare Part Number: 873563-001
Model Number: EO000400JWDKP
Assembly Number: 868649-001

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 400 GB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Workload Type: Write Intensive
NAND Flash Memory Type: Multi-level cell (MLC)
Carrier Type: Smart Carrier (SC)
Plug Type: Hot Plug
Features: Digitally Signed Firmware, HPE SmartSSD Wear Gauge
Bundled With: HPE Smart Carrier
Height: 0.60 inch

Performance

30 Days Writes: 700
Drive Writes Per Day (DWPD): 10
Drive Transfer Rate: 12 Gb/sec (external)
Internal Data Rate(read) MBps: 1050
Internal Data Rate (write) MBps: 1005
Random Read IOPS (4KiB, Q=16): 125000
Max Random Read IOPS (4KiB): 170000@Q64
Random Write IOPS (4KiB, Q=16): 100000
Max Random Write IOPS (4KiB): 100000@Q16
Average Latency: 45 μs

Expansion & Connectivity

Interfaces: 1 x SAS 12Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Idle: 3.46 Watt
Random Read: 5.86 Watt
Random Write: 5.86 Watt
Sequential Read: 5.65 Watt
Sequential Write: 8.08 Watt

Miscellaneous

Compliant Standards: WEEE

Compatibility Information

Designed For

HPE ProLiant DL Series: DL120 Gen9 (2.5inch), DL120 Gen9 Entry (2.5inch), DL160 Gen9 (2.5inch), DL160 Gen9 Base (2.5inch), DL160 Gen9 Entry (2.5inch), DL160 Gen9 Performance (2.5inch), DL160 Gen9 Thoughtspot Server (2.5inch), DL20 Gen9 (2.5inch), DL20 Gen9 Base (2.5inch), DL20 Gen9 Entry (2.5inch), DL20 Gen9 Performance (2.5inch), DL20 Gen9 Solution (2.5inch), DL20 Gen9 Special Server (2.5inch), DL360 Gen9 (2.5inch), DL360 Gen9 Base (2.5inch), DL360 Gen9 CMS (2.5inch), DL360 Gen9 Entry (2.5inch), DL360 Gen9 Performance (2.5inch), DL360 Gen9 Special Server (2.5inch), DL385 Gen10 (2.5inch), DL385 Gen10 Base (2.5inch), DL385 Gen10 Entry (2.5inch), DL385 Gen10 High-Performance (2.5inch), DL385 Gen10 Performance (2.5inch), DL385 Gen10 Solution (2.5inch), DL580 Gen10 (2.5inch), DL580 Gen10 Base (2.5inch), DL580 Gen10 Entry (2.5inch), DL580 Gen10 Performance (2.5inch)

HPE ProLiant ML Series: ML110 Gen10 (2.5inch), ML110 Gen10 Entry (2.5inch), ML110 Gen10 Performance (2.5inch), ML110 Gen9 (2.5inch), ML110 Gen9 Base (2.5inch), ML110 Gen9 Entry (2.5inch), ML150 Gen9 (2.5inch), ML150 Gen9 Base (2.5inch), ML150 Gen9 Entry (2.5inch), ML150 Gen9 Performance (2.5inch), ML30 Gen9 (2.5inch), ML30 Gen9 Base (2.5inch), ML30 Gen9 Entry (2.5inch), ML30 Gen9 Performance (2.5inch), ML30 Gen9 Solution (2.5inch), ML350 Gen10 (2.5inch), ML350 Gen10 Base (2.5inch), ML350 Gen10 Entry (2.5inch), ML350 Gen10 Performance (2.5inch), ML350 Gen10 Solution (2.5inch), ML350 Gen10 Sub-Entry (2.5inch), ML350 Gen9 (2.5inch), ML350 Gen9 Base (2.5inch), ML350 Gen9 Entry (2.5inch), ML350 Gen9 Performance (2.5inch)

HPE ProLiant XL Series: XL170r Gen10 (2.5inch), XL190r Gen10 (2.5inch)
