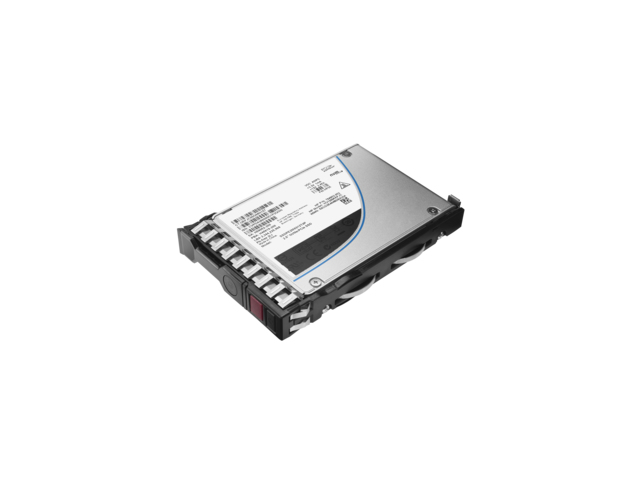

875478-B21 HPE 1.92TB SATA 6G Mixed Use SFF 2.5" SC DS SSD

Omschrijving

Option Part Number: 875478-B21
Spare Part Number: 875867-001
Model Number: MK001920GWHRU
Assembly Number: 870668-004

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 1.92 TB
Form Factor: 2.5 inch SFF
Interface: SATA 6Gbps
Workload Type: Mixed Use
Carrier Type: Smart Carrier (SC)
Flash Type: TLC
Plug Type: Hot Pluggable
Features: Digitally Signed Firmware
Bundled with: HPE SmartDrive Carrier
Height: 7 mm

Performance

30 Days Writes: 17600
Endurance DWPD (Drive Writes Per Day): 5
Drive Transfer Rate: 600 MBps (external)
MAX Seq. Reads Throughput (MiB/s): 500
MAX Seq. Writes Throughput (MiB/s): 480
Random Read Average Latency uSec (4KiB,Q1): 190
Random Write Average Latency uSec (4KiB,Q1): 40
Random Read IOPS (4KiB, Q=16): 54000
Random Write IOPS (4KiB, Q=16): 53000
MAX Random Read IOPS (4KiB): 61500@Q32
MAX Random Write IOPS (4KiB): 53000@Q4
4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 63000
4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 60000

Expansion & Connectivity

Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Idle Time: 3.22 Watt
Random Read: 3.63 Watt
Random Write: 12.07 Watt
Sequential Read: 4.52 Watt
Sequential Write: 12.07 Watt
Random R/W: 6.52 Watt
MAX: 13.00 Watt

Environmental Parameters

Min Operating Temperature: 32 °F
Max Operating Temperature: 140 °F

Compatibility Information

Designed for

HPE ProLiant BL Series: BL460c Gen9 (2.5 inch), BL460c Gen9 Base (2.5 inch), BL460c Gen9 Entry (2.5 inch), BL460c Gen9 Performance (2.5 inch), BL660c Gen9 (2.5 inch) Servers

HPE ProLiant DL Series: DL120 Gen9 (2.5 inch), DL120 Gen9 Entry (2.5 inch), DL180 Gen9 (2.5 inch), DL180 Gen9 Base (2.5 inch), DL180 Gen9 Entry (2.5 inch), DL180 Gen9 Storage (2.5 inch), DL20 Gen9 (2.5 inch), DL20 Gen9 Base (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL20 Gen9 Solution (2.5 inch), DL20 Gen9 Special Server (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch), DL380 Gen9 Entry (2.5 inch), DL380 Gen9 High Performance (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block (2.5 inch), DL380 Gen9 Special (2.5 inch), DL385 Gen10 (2.5 inch), DL385 Gen10 Base (2.5 inch), DL385 Gen10 Entry (2.5 inch), DL385 Gen10 High-Performance (2.5 inch), DL385 Gen10 Performance (2.5 inch), DL385 Gen10 Solution (2.5 inch), DL388 Gen9 (2.5 inch), DL388 Gen9 Base (2.5 inch), DL580 Gen10 (2.5 inch), DL580 Gen10 Base (2.5 inch), DL580 Gen10 Entry (2.5 inch), DL580 Gen10 Performance (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 Base (2.5 inch), DL580 Gen9 Database (2.5 inch), DL580 Gen9 High Performance (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch) Servers

HPE ProLiant ML Series: ML110 Gen10 (2.5 inch), ML110 Gen10 Performance (2.5 inch), ML110 Gen10 Solution (2.5 inch), ML110 Gen9 (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch), ML150 Gen9 (2.5 inch), ML150 Gen9 Base (2.5 inch), ML150 Gen9 Entry (2.5 inch), ML150 Gen9 Performance (2.5 inch), ML30 Gen9 (2.5 inch), ML30 Gen9 Base (2.5 inch), ML30 Gen9 Entry (2.5 inch), ML30 Gen9 Performance (2.5 inch), ML30 Gen9 Solution (2.5 inch), ML350 Gen10 (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 Entry (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 Solution (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch), ML350 Gen9 (2.5 inch), ML350 Gen9 Base (2.5 inch), ML350 Gen9 Entry (2.5 inch) and ML350 Gen9 Performance (2.5 inch) Servers

HPE ProLiant WS Series: WS460c Gen9 (2.5 inch), WS460c Gen9 Graphics (2.5 inch), WS460c Gen9 Graphics Expansion (2.5 inch)

HPE ProLiant XL Series: XL170r Gen10 (2.5 inch) Server
