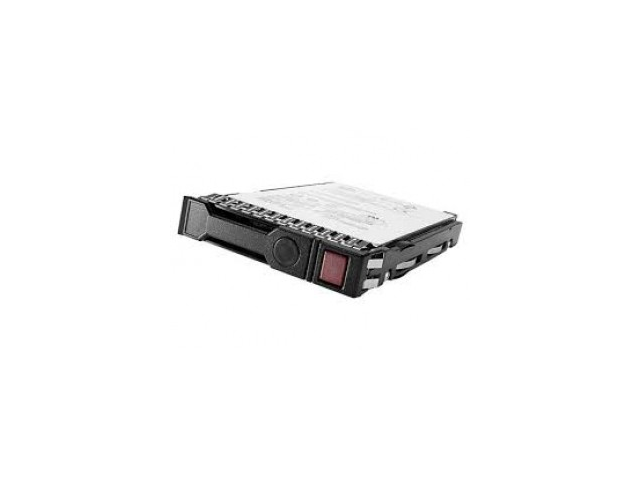

875503-B21 HPE 240GB SATA 6G Read Intensive SFF 2.5" SC DS SSD

Omschrijving

Option Part Number: 875503-B21
Spare Part Number: 875652-001
Model Number: VK000240GWEZB
Assembly Number: 870667-001

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 240 GB
Form Factor: 2.5 inch SFF
Interface: SATA 6Gbps
NAND Flash Memory Type: Triple-Level Cell (TLC)
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier (SC)
Workload Type: Read Intensive
Features: Digitally Signed Firmware
Bundled with: HPE Smart Carrier (SC)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy

Performance

30 Days Writes: 650
Endurance DWPD (Drive Writes Per Day): 1.5
MAX Seq. Reads Throughput (MiB/s): 505
MAX Seq. Writes Throughput (MiB/s): 260
Random Read Average Latency uSec (4KiB,Q1): 125
Random Write Average Latency uSec (4KiB,Q1): 40
Random Read IOPS (4KiB, Q=16): 62500
Random Write IOPS (4KiB, Q=16): 33000
MAX Random Read IOPS (4KiB): 69500@Q32
MAX Random Write IOPS (4KiB): 33000Q4
4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 40000
4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 36000
External Data Transfer Rate: 600MBps

Power

Power Idle Time: 1.07 Watt
Power Random Read: 3.00 Watt
Power Random Write: 3.00 Watt
Power Sequential Read: 3.21 Watt
Power Sequential Write: 3.90 Watt
Power Random R/W: 2.95 Watt

Compatibility Information

Designed for

HPE ProLiant BL Series: BL460c Gen9 (2.5 inch), BL460c Gen9 Base (2.5 inch), BL460c Gen9 Entry (2.5 inch), BL460c Gen9 Performance (2.5 inch), BL660c Gen9 (2.5 inch)

HPE ProLiant DL Series: DL120 Gen9 (2.5 inch), DL120 Gen9 Entry (2.5 inch), DL160 Gen9 (2.5 inch), DL160 Gen9 Base (2.5 inch), DL160 Gen9 Entry (2.5 inch), DL160 Gen9 Performance (2.5 inch), DL160 Gen9 Thoughtspot Server (2.5 inch), DL180 Gen9 (2.5 inch), DL180 Gen9 Base (2.5 inch), DL180 Gen9 Entry (2.5 inch), DL180 Gen9 Storage (2.5 inch), DL20 Gen9 (2.5 inch), DL20 Gen9 Base (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL20 Gen9 Special Server (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch), DL380 Gen9 Entry (2.5 inch), DL380 Gen9 High Performance (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block (2.5 inch), DL380 Gen9 Special (2.5 inch), DL388 Gen9 (2.5 inch), DL388 Gen9 Base (2.5 inch), DL580 Gen10 (2.5 inch), DL580 Gen10 Base (2.5 inch), DL580 Gen10 Entry (2.5 inch), DL580 Gen10 Performance (2.5 inch)

HPE ProLiant ML Series: ML110 Gen10 (2.5 inch), ML110 Gen10 Entry (2.5 inch), ML110 Gen10 Performance (2.5 inch), ML110 Gen9 (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch), ML150 Gen9 (2.5 inch), ML150 Gen9 Base (2.5 inch), ML150 Gen9 Entry (2.5 inch), ML150 Gen9 Performance (2.5 inch), ML30 Gen9 (2.5 inch), ML30 Gen9 Base (2.5 inch), ML30 Gen9 Entry (2.5 inch), ML30 Gen9 Performance (2.5 inch), ML30 Gen9 Solution (2.5 inch), ML350 Gen10 (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 Entry (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch), ML350 Gen9 (2.5 inch), ML350 Gen9 Base (2.5 inch), ML350 Gen9 Entry (2.5 inch), ML350 Gen9 Performance (2.5 inch)

HPE ProLiant WS Series: WS460c Gen9 (2.5 inch), WS460c Gen9 Graphics (2.5 inch), WS460c Gen9 Graphics Expansion (2.5 inch)
