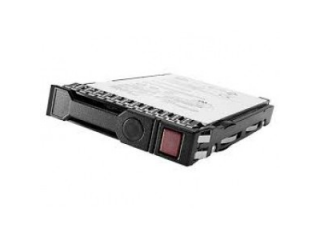

P04556-B21 HPE 240GB SATA 6G Read Intensive SFF 2.5" SC DS SSD

Omschrijving

Option Part Number: P04556-B21
Spare Part Number: P05319-001
Model Number: VK000240GWSRQ
Assembly Number: P02760-001
HPE GPN: P04573-001

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 240 GB
Form Factor: 2.5 inch SFF
Interface Type: SATA 6Gbps
NAND Flash Memory Type: Multi-Level Cell (MLC)
Connectivity: Single Port
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier (SC)
Workload Type: Read Intensive
Features: Digitally Signed Firmware
Bundled with: HPE SmartDrive carrier (SC)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 7 mm (0.3 inch)

Performance

30 Days Writes: 350
Endurance DWPD (Drive Writes Per Day): 0.80
Drive Transfer Rate: 6 Gb/sec (external)
MAX Seq. Reads Throughput (MiB/s): 535
MAX Seq. Writes Throughput (MiB/s): 315
Random Read Average Latency uSec (4KiB, Q1): 105
Random Write Average Latency uSec (4KiB, Q1): 70
Random Read IOPS (4KiB, Q=16): 70000
Random Write IOPS (4KiB, Q=16): 14000
MAX Random Read IOPS (4KiB): 79000@Q32
MAX Random Write IOPS (4KiB): 14000@Q1

Expansion & Connectivity

Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Idle Time: 1.12 Watt
Random Read: 2.11 Watt
Random Write: 2.11 Watt
Sequential Read: 1.84 Watt
Sequential Write: 1.84 Watt
Random Read/Write: 2.11 Watt
MAX: 3.00 Watt

Compatibility Information

Designed for

HPE Apollo Series: 4200 Gen9 for Google (2.5 inch)

HPE ProLiant BL Series: BL460c Gen9 (2.5 inch), BL460c Gen9 Base (2.5 inch), BL460c Gen9 Entry (2.5 inch), BL460c Gen9 Performance (2.5 inch), BL660c Gen9 (2.5 inch)

HPE ProLiant DL Series: DL20 Gen10 (2.5 inch), DL20 Gen10 Entry (2.5 inch), DL20 Gen10 Performance (2.5 inch), DL20 Gen10 solution (2.5 inch), DL325 Gen10 Base (2.5 inch), DL325 Gen10 Solution (2.5 inch), DL360 Gen9 (2.5 inch), DL360 Gen9 Base (2.5 inch), DL360 Gen9 CMS (2.5 inch), DL360 Gen9 Entry (2.5 inch), DL360 Gen9 Performance (2.5 inch), DL360 Gen9 Special Server (2.5 inch), DL380 Gen10 (2.5 inch), DL380 Gen10 All Flash Server for Datera (2.5 inch), DL380 Gen10 Base (2.5 inch), DL380 Gen10 Entry (2.5 inch), DL380 Gen10 Entry SMB (2.5 inch), DL380 Gen10 for Cohesity DataPlatform (2.5 inch), DL380 Gen10 High Performance (2.5 inch), DL380 Gen10 Hybrid Server for Datera (2.5 inch), DL380 Gen10 Network Choice (2.5 inch), DL380 Gen10 Network Choice for CTERA (2.5 inch), DL380 Gen10 Performance (2.5 inch), DL380 Gen10 Server for CTERA (2.5 inch), DL380 Gen10 SMB (2.5 inch), DL380 Gen10 SMB Networking Choice (2.5 inch), DL380 Gen10 Solution (2.5 inch), DL385 Gen10 Plus (2.5 inch), DL385 Gen10 Plus Entry (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 Base (2.5 inch), DL580 Gen9 Database (2.5 inch), DL580 Gen9 High Performance (2.5 inch), DL580 Gen9 SAP HANA Scale-out Base Configuration (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch)

HPE ProLiant ML Series: ML30 Gen10 (2.5 inch), ML30 Gen10 Entry (2.5 inch), ML30 Gen10 Performance (2.5 inch), ML30 Gen10 Solution (2.5 inch), WS460c Gen9 (2.5 inch), WS460c Gen9 Graphics (2.5 inch), WS460c Gen9 Graphics Expansion (2.5 inch), XL270d Gen9 (2.5 inch)
