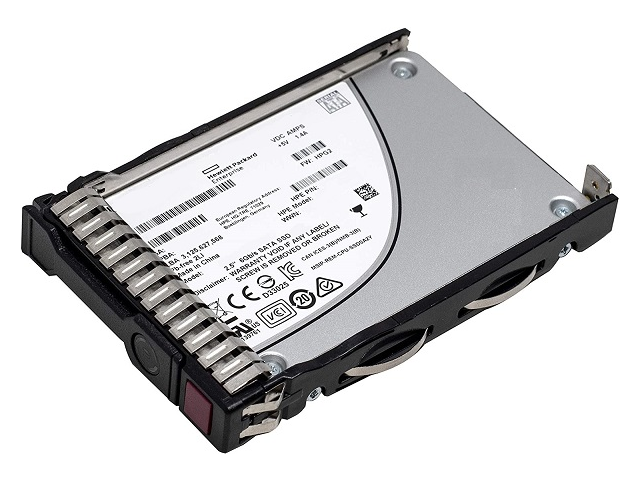

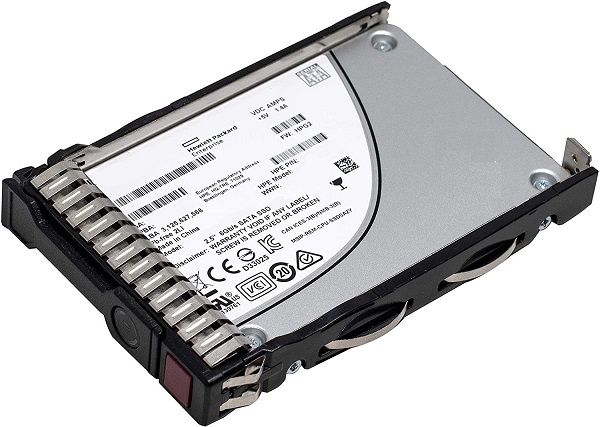

P18422-B21 HPE 480GB SATA 6G Read Intensive SFF SC Multi Vendor SSD G8-G10

Omschrijving

Option Part Number: P18422-B21
Spare Part Number: P18482-001

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 480GB
Form Factor: 2.5 inch SFF
Interface: SATA 6Gbps
NAND Flash Memory Type: Triple-level cell (TLC)
Plug Type: Hot Pluggable
Connectivity Type: Single
Carrier Type: Smart Carrier (SC)
Workload Type: Read Intensive
Bundled with: HPE SmartDrive Carrier (SC)
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 7.00 mm(0.30 inch)

Performance

30 Days Writes (TB): 430
Endurance DWPD (Drive Writes Per Day): 1.0
Drive Transfer Rate: 600 MBps (external)
MAX Seq. Reads Throughput (MiB/s): 510
MAX Seq. Writes Throughput (MiB/s): 300
Random Read Average Latency uSec (4KiB,Q1): 125
Random Write Average Latency uSec (4KiB,Q1): 65
Random Read IOPS (4KiB, Q=16): 65000
Random Write IOPS (4KiB, Q=16): 15000
MAX Random Read IOPS (4KiB): 65500@Q32
MAX Random Write IOPS (4KiB): 15400@Q1

Expansion & Connectivity

Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Idle Time: 1.40 Watt
Random Read: 2.29 Watt
Random Write: 2.29 Watt
Sequential Read: 2.45 Watt
Sequential Write: 2.72 Watt
Random Read/Write: 2.29 Watt
MAX: 2.72 Watt

Environmental Parameters

Min Operating Temperature: 32 °F
Max Operating Temperature: 140 °F

Product Dimensions & Weight

Height: 5.00 inch (12.70 cm)
Width: 7.00 inch (17.78 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)

Compatibility Information

Designed for

HPE ProLiant BL Series: BL460c Gen10 (2.5inch)

HPE ProLiant DL Series: DL180 Gen10 (2.5inch), DL180 Gen10 Entry (2.5inch), DL325 Gen10 (2.5inch), DL325 Gen10 Base (2.5inch), DL325 Gen10 Entry (2.5inch), DL325 Gen10 Performance (2.5inch), DL325 Gen10 Plus (2.5inch), DL325 Gen10 SMB Solution (2.5inch), DL325 Gen10 Solution (2.5inch), DL360 Gen10 (2.5inch), DL360 Gen10 Base (2.5inch), DL360 Gen10 Entry (2.5inch), DL360 Gen10 High Performance (2.5inch), DL360 Gen10 Low (2.5inch), DL360 Gen10 Network Choice (2.5inch), DL360 Gen10 Performance (2.5inch), DL360 Gen10 SMB (2.5inch), DL360 Gen10 SMB Network Choice (2.5inch), DL360 Gen10 Solution (2.5inch), DL385 Gen10 Plus (2.5inch), DL385 Gen10 Plus Entry (2.5inch)

HPE ProLiant ML Series: ML30 Gen10 (2.5inch), ML30 Gen10 Entry (2.5inch), ML30 Gen10 Performance (2.5inch), ML30 Gen10 Solution (2.5inch)

HPE Synergy Series: 660 Gen10 Base Compute Module (2.5inch), 660 Gen10 Compute Module (2.5inch), 660 Gen10 Entry Compute Module (2.5inch), 660 Gen10 Performance Compute Module (2.5inch), 660 Gen10 Premium Compute Module (2.5inch)
