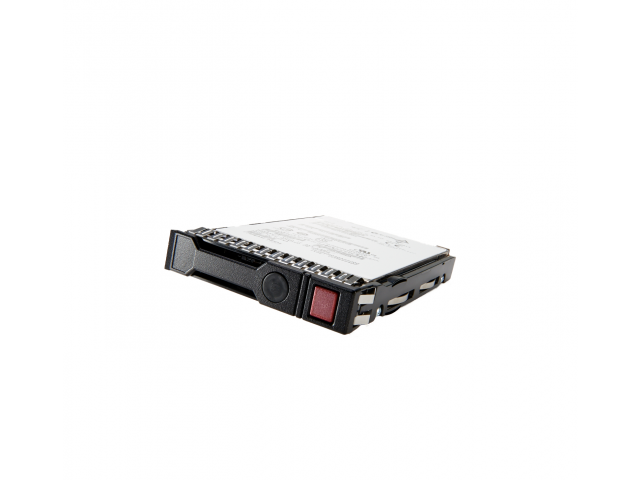

P19913-B21 HPE 800GB SAS 12G Mixed Use SFF SC PM1645a SSD

Omschrijving

Option Part Number: P19913-B21
Spare Part Number: P20838-001

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 800 GB
Flash Type: TLC
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier (SC)
Workload Type: Mixed Use
Features: Digitally Signed Firmware
Bundled with: HPE Smart Carrier
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 0.6 inch (15 mm)

Performance

30 Days Writes: 4500
Endurance DWPD (Drive Writes Per Day): 3
Drive Transfer Rate: 12 Gb/sec (external)
Random Read IOPS (4KiB, Q=16): 115000
Max Random Read IOPS (4KiB): 175000@Q256
Random Write IOPS (4KiB, Q=16): 100000
Max Random Write IOPS (4KiB): 100000@Q16
MAX Seq Reads Throughput (MiB/s): 1080
Max Seq Writes Throughput (MiB/s): 1030
Random Read Avg. Latency uSec (4KiB,Q1): 165
Random Write Avg. Latency uSec (4KiB,Q1): 95

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Idle Time: 3.47 Watt
Random Read: 5.09 Watt
Random Write: 5.09 Watt
Sequential Read: 5.79 Watt
Sequential Write: 6.66 Watt
Random Read/Write: 5.09 Watt
Maximum: 6.66 Watt

Product Dimensions & Weight

Height: 5.75 inch (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.508 lbs (0.68 kg)

Compatibility Information

Designed for

HPE ProLiant Dl Series: DL180 Gen10 SMB (2.5inch), DL20 Gen10 (2.5inch), DL20 Gen10 Entry (2.5inch), DL20 Gen10 Performance (2.5inch), DL20 Gen10 solution (2.5inch), DL325 Gen10 (2.5inch), DL325 Gen10 Base (2.5inch), DL325 Gen10 Entry (2.5inch), DL325 Gen10 Performance (2.5inch), DL325 Gen10 Plus (2.5inch), DL325 Gen10 SMB Solution (2.5inch), DL325 Gen10 Solution (2.5inch), DL360 Gen10 Low (2.5inch), DL360 Gen10 Network Choice (2.5inch), DL360 Gen10 Premium (2.5inch), DL360 Gen10 Remote Office Branch Office Server for Cohesity DataPlatform (2.5inch), DL360 Gen10 SMB (2.5inch), DL360 Gen10 SMB Network Choice (2.5inch), DL360 Gen10 Solution (2.5inch), DL380 Gen10 All Flash Server for Datera (2.5inch), DL380 Gen10 Entry SMB (2.5inch), DL380 Gen10 for Cohesity DataPlatform (2.5inch), DL380 Gen10 Hybrid Server for Datera (2.5inch), DL380 Gen10 Network Choice (2.5inch), DL380 Gen10 Network Choice for CTERA (2.5inch), DL380 Gen10 Network Choice for SAP HANA Compute Block (2.5inch), DL380 Gen10 NVMe All Flash Server for Datera (2.5inch), DL380 Gen10 SMB (2.5inch), DL380 Gen10 SMB Networking Choice (2.5inch), DL380 Gen10 Solution (2.5inch), DL385 Gen10 (2.5inch), DL385 Gen10 Base (2.5inch), DL385 Gen10 Entry (2.5inch), DL385 Gen10 High-Performance (2.5inch), DL385 Gen10 Performance (2.5inch), DL385 Gen10 Plus (2.5inch), DL385 Gen10 Plus Entry (2.5inch), DL385 Gen10 SMB (2.5inch), DL385 Gen10 Solution (2.5inch), DL388 Gen10 (2.5inch), DL580 Gen10 (2.5inch), DL580 Gen10 Base (2.5inch), DL580 Gen10 Entry (2.5inch), DL580 Gen10 Performance (2.5inch)

HPE ProLiant ML Series: ML110 Gen10 (2.5inch), ML110 Gen10 Entry (2.5inch), ML110 Gen10 Performance (2.5inch), ML110 Gen10 Solution (2.5inch)

HPE Synergy 480 Gen10 Base Compute Module (2.5inch), 480 Gen10 Compute Module (2.5inch), 480 Gen10 Performance Compute Module (2.5inch), 480 Gen10 Premium Backplane Compute Module (2.5inch), 480 Gen10 Standard BackPlane Compute Module (2.5inch), 480 Gen10 w/o Drives Compute Module (2.5inch), 660 Gen10 Compute Block (2.5inch), 660 Gen10 Compute Module (2.5inch), 660 Gen10 Premium Compute Module (2.5inch)
