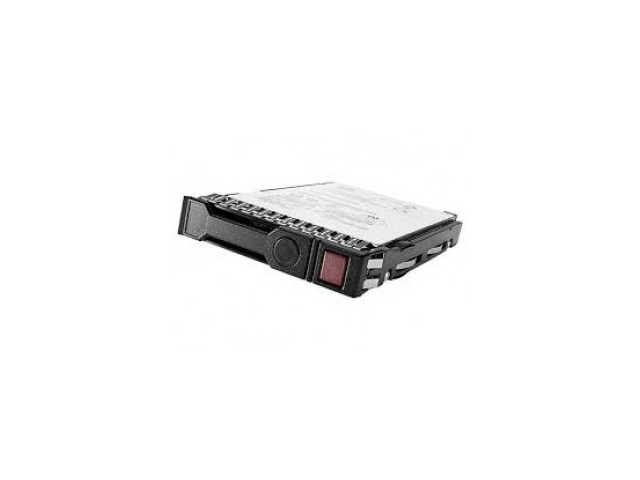

P19935-B21 HPE 240GB SATA 6G Read Intensive SFF SC 5300P SSD G10

Omschrijving

Option Part Number: P19935-B21
Spare Part Number: P21080-001

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 240 GB
Form Factor: 2.5 inch SFF
Interface Type: SATA 6Gbps
NAND Flash Memory Type: Triple-Level Cell (TLC)
Connectivity: Single Port
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier (SC)
Workload Type: Read Intensive
Features: Digitally Signed Firmware
Bundled with: HPE SmartDrive carrier (SC)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 7 mm (0.3 inch)

Performance

30 Days Writes: 657
Endurance DWPD (Drive Writes Per Day): 1.50
Drive Transfer Rate: 6 Gb/sec (external)
MAX Seq. Reads Throughput (MiB/s): 520
MAX Seq. Writes Throughput (MiB/s): 300
Random Read Average Latency uSec (4KiB, Q1): 203
Random Write Average Latency uSec (4KiB, Q1): 121
Random Read IOPS (4KiB, Q=16): 57000
Random Write IOPS (4KiB, Q=16): 43000
MAX Random Read IOPS (4KiB): 65000@Q64
MAX Random Write IOPS (4KiB): 44000@Q32

Expansion & Connectivity

Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Idle Time: 1.16 Watt
Random Read: 1.41 Watt
Random Write: 1.41 Watt
Sequential Read: 2.00 Watt
Sequential Write: 2.43 Watt
Random Read/Write: 1.41 Watt
MAX: 2.43 Watt

Compatibility Information

Designed for

HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10 (2.5inch), Medium Solution with HPE ProLiant DL325 Gen10 Plus (2.5inch), Medium Solution with HPE ProLiant DL360 Gen10 (2.5inch), Small Solution with HPE ProLiant DL360 Gen10 (2.5inch)

HPE ProLiant DL Series: DL180 Gen10 Entry (2.5inch), DL20 Gen10 (2.5inch), DL20 Gen10 Entry (2.5inch), DL20 Gen10 Performance (2.5inch), DL20 Gen10 solution (2.5inch), DL325 Gen10 (2.5inch), DL325 Gen10 Base (2.5inch), DL325 Gen10 Entry (2.5inch), DL325 Gen10 Performance (2.5inch), DL325 Gen10 Plus (2.5inch), DL325 Gen10 Plus All-NVMe Flash Node for Qumulo (2.5inch), DL325 Gen10 Plus for Weka Expansion Tracking (2.5inch), DL325 Gen10 SMB Solution (2.5inch), DL325 Gen10 Solution (2.5inch), DL360 Gen10 All Flash Server for Weka (2.5inch), DL360 Gen10 Compute Server for Cohesity DataPlatform (2.5inch), DL360 Gen10 Network Choice (2.5inch), DL360 Gen10 Performance for Cohesity DataPlatform (2.5inch), DL360 Gen10 Premium (2.5inch), DL360 Gen10 SMB (2.5inch), DL360 Gen10 SMB Network Choice (2.5inch), DL360 Gen10 Solution (2.5inch), DL360 Gen10 Special Server (2.5inch), DL380 Gen10 All Flash Server for Datera (2.5inch), DL380 Gen10 Entry SMB (2.5inch), DL380 Gen10 for SAP HANA Compute Block (2.5inch), DL380 Gen10 Hybrid Server for Datera (2.5inch), DL380 Gen10 Network Choice (2.5inch), DL380 Gen10 Network Choice for CTERA (2.5inch), DL380 Gen10 Network Choice for SAP HANA Compute Block (2.5inch), DL380 Gen10 Server for CTERA (2.5inch), DL380 Gen10 SMB (2.5inch), DL380 Gen10 SMB Networking Choice (2.5inch), DL380 Gen10 Solution (2.5inch), DL385 Gen10 Plus (2.5inch), DL385 Gen10 Plus Entry (2.5inch), DL385 Gen10 SMB (2.5inch), DL385 Gen10 Solution (2.5inch), DL388 Gen10 (2.5inch), DL560 Gen10 for SAP HANA Compute Block (2.5inch)

HPE ProLiant ML Series: ML30 Gen10 (2.5inch), ML30 Gen10 Entry (2.5inch), ML30 Gen10 Performance (2.5inch), ML30 Gen10 Solution (2.5inch), ML350 Gen10 High Performance (2.5inch), ML350 Gen10 SMB (2.5inch), ML350 Gen10 Solution (2.5inch), ML350 Gen10 Special Server (2.5inch)

HPE Synergy 480 Gen10 Plus Base Compute Module (2.5inch)
