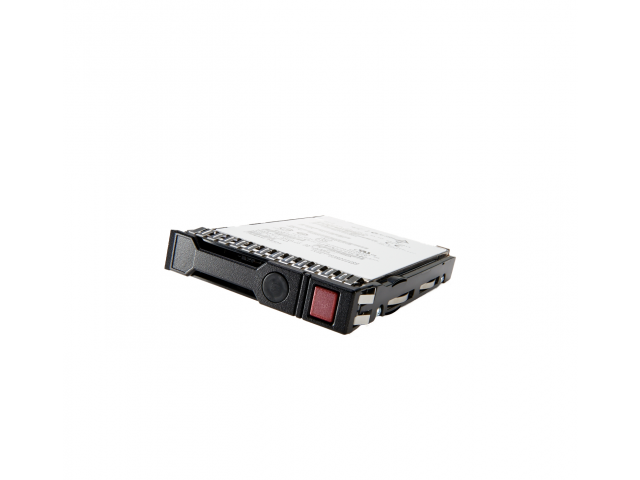

P21133-B21 HPE 1.6TB SAS 12G Mixed Use SFF SC SS540 SSD - G8 G9 G10

Omschrijving

Option Part Number: P21133-B21
Spare Part Number: P22582-001
Model Number: MO001600JXBFP

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 1.6 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
NAND Flash Memory Type: Triple-Level Cell (TLC)
Plug Type: Hot Pluggable
Connectivity Type: Dual
Carrier Type: Smart Carrier (SC)
Workload Type: Mixed Use
Bundled with: HPE Smart Carrier (SC)
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15 mm (0.6 inch)

Performance

30 Days Writes: 8561
Endurance DWPD (Drive Writes Per Day): 3.0
Drive Transfer Rate: 12 Gb/sec (external)
MAX Seq. Reads Throughput (MiB/s): 1095
MAX Seq. Writes Throughput (MiB/s): 1040
Random Read Average Latency uSec (4KiB,Q1): 98
Random Write Average Latency uSec (4KiB,Q1): 32
Random Read IOPS (4KiB, Q=16): 130000
Random Write IOPS (4KiB, Q=16): 120000
MAX Random Read IOPS (4KiB): 210000@Q64
MAX Random Write IOPS (4KiB): 124000@Q64

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Idle Time: 3.83 Watt
Random Read: 6.59 Watt
Random Write: 6.59 Watt
Sequential Read: 6.00 Watt
Sequential Write: 9.12 Watt
Random Read/Write: 6.59 Watt
Maximum: 9.12 Watt

Environmental Parameters

Min Operating Temperature: 32 °F
Max Operating Temperature: 140 °F

Product Dimensions & Weight

Height: 5.75 inch (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.508 lbs (0.68 kg)

Compatibility Information

Designed for

HPE ProLiant DL Series: DL160 Gen10 (2.5 inch), DL160 Gen10 Base (2.5 inch), DL160 Gen10 Entry (2.5 inch), DL180 Gen10 (2.5 inch), DL180 Gen10 Base (2.5 inch), DL180 Gen10 SMB (2.5 inch), DL20 Gen10 (2.5 inch), DL20 Gen10 Entry (2.5 inch), DL20 Gen10 Performance (2.5 inch), DL20 Gen10 solution (2.5 inch), DL325 Gen10 (2.5 inch), DL325 Gen10 Base (2.5 inch), DL325 Gen10 Entry (2.5 inch), DL325 Gen10 Performance (2.5 inch), DL325 Gen10 Plus (2.5 inch), DL325 Gen10 SMB Solution (2.5 inch), DL325 Gen10 Solution (2.5 inch), DL360 Gen10 (2.5 inch), DL360 Gen10 Base (2.5 inch), DL360 Gen10 Entry (2.5 inch), DL360 Gen10 High Performance (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Network Choice (2.5 inch), DL360 Gen10 Performance (2.5 inch), DL360 Gen10 Premium (2.5 inch), DL360 Gen10 SMB (2.5 inch), DL360 Gen10 SMB Network Choice (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL360 Gen10 Special Server (2.5 inch), DL385 Gen10 (2.5 inch), DL385 Gen10 Base (2.5 inch), DL385 Gen10 Entry (2.5 inch), DL385 Gen10 High-Performance (2.5 inch), DL385 Gen10 Performance (2.5 inch), DL385 Gen10 Plus (2.5 inch), DL385 Gen10 Plus Entry (2.5 inch), DL385 Gen10 SMB (2.5 inch), DL385 Gen10 Solution (2.5 inch), DL560 Gen10 (2.5 inch), DL560 Gen10 Base (2.5 inch), DL560 Gen10 Entry (2.5 inch), DL560 Gen10 Performance (2.5 inch), DL580 Gen10 (2.5 inch), DL580 Gen10 Base (2.5 inch), DL580 Gen10 Entry (2.5 inch), DL580 Gen10 Performance (2.5 inch)

HPE ProLiant ML Series: ML350 Gen10 (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 Entry (2.5 inch), ML350 Gen10 High Performance (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 SMB (2.5 inch), ML350 Gen10 Solution (2.5 inch), ML350 Gen10 Special Server (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch)
