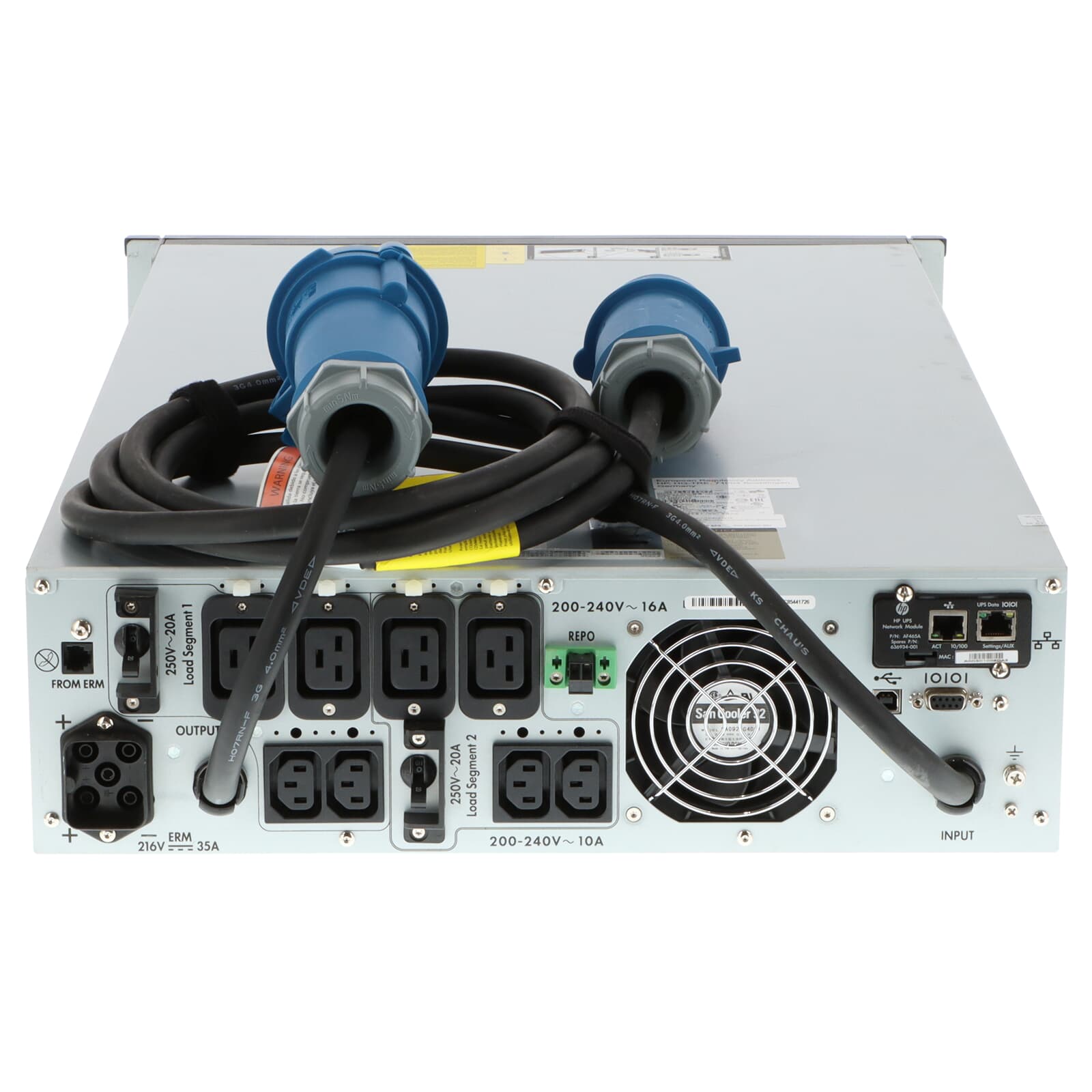

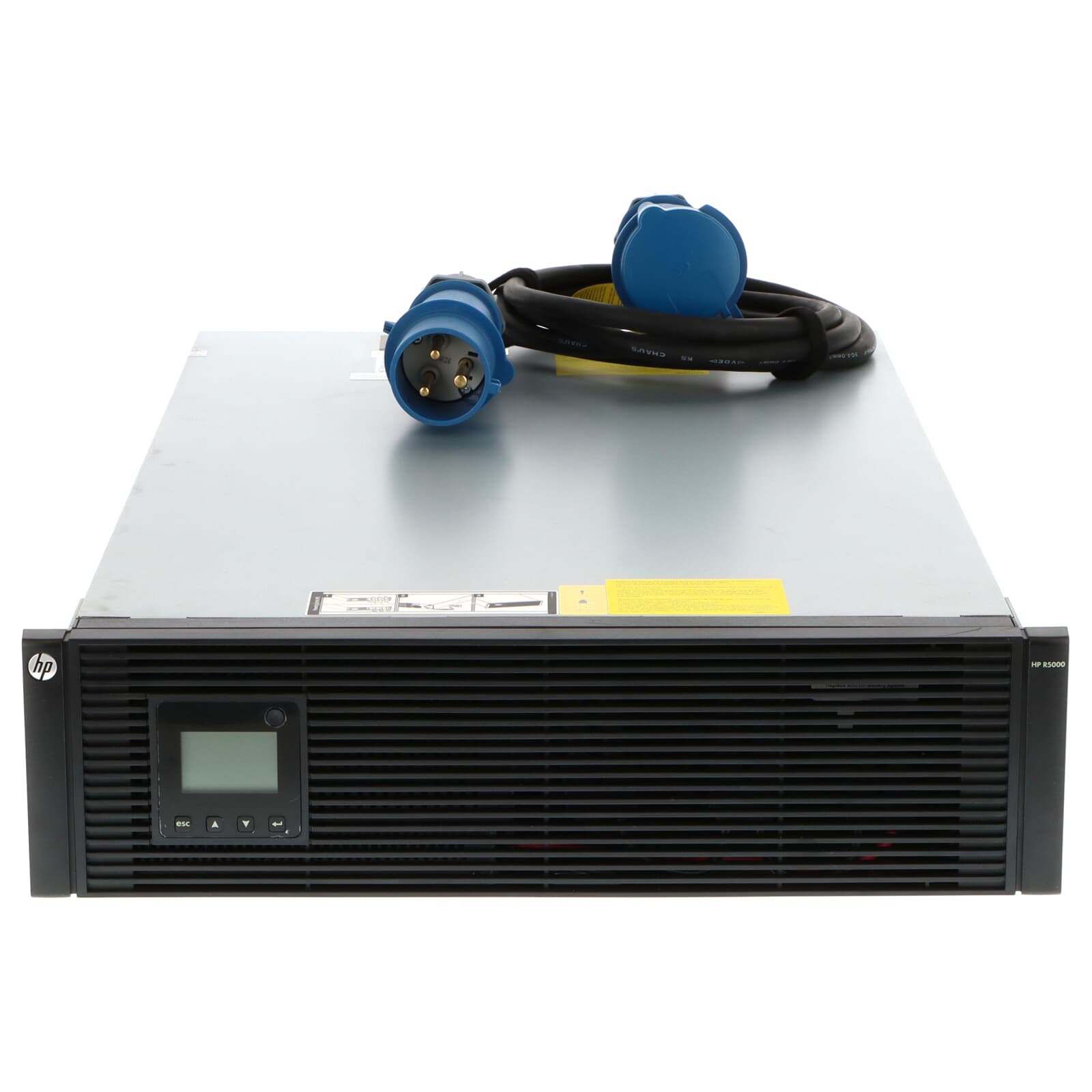

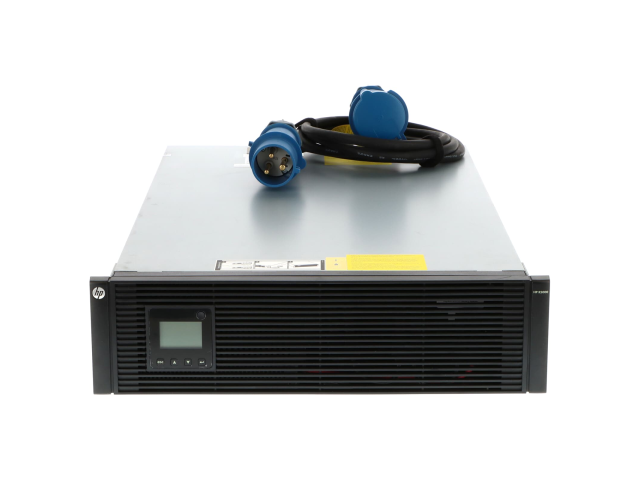

638827-001 HPE SPS-UPS R5000 3U IEC309-32A High Voltage,INTL
Optionele producten toevoegen
€ 575,00
Excl. BTW
€ 695,75 Incl. BTW
- R5KVA uninterruptible power system (UPS)
- 3U height
- 32A
- ICE309
- high-voltage (International)
- Geen Rack mount kit inbegrepen
- Foto's zijn ter indicatie en kunnen afwijken. SpareIT probeert dit zo correct mogelijk weer te geven.
Disclaimer:
Product foto’s en specificaties worden beschikbaar gesteld door Universele Databases en zijn vaak gebaseerd op nieuwe producten.
Wanneer het artikel een 'Refurbished product' betreft is deze door ons getest en heeft het een A-grade conditie (tenzij anders aangegeven). Bij Refurbished artikelen zijn kabels, software media en handleidingen niet inbegrepen (tenzij anders aangegeven).
Let goed op de productbeschrijving en neem bij vragen contact op met ons.
Omschrijving
Technical Specifications
|
Unit Dimensions (HxWxD) |
5.5 x 17.2 x 29.3 in (12.7 x 43.7
x 74.4 cm) |
|
|
Shipping Dimensions |
14.4 x 23.6 x 38.78 in (36.58 x
60 x 98.5 cm) |
|
|
Unit Weight |
126 lb (57 kg) |
|
|
Shipping Weight |
192 lb (87 kg) |
|
|
BTU Break Down |
BTU On Line |
478 all models |
|
BTU On Battery |
846 INTL, 1041 NA/JPN |
|
|
Battery String Voltage |
216V |
|
|
Battery Type |
12V 27W |
|
|
Battery Quantity |
18 |
|
|
Electrical Input |
Voltage Range |
160-253V
at 200/208V nominal; 176-253V at 220, 230, and 240V nominal |
|
Frequency |
50/60Hz |
|
|
Input Plug |
Part
number AF460A: L6-30P, 3 m cord |
|
|
Online Efficiency |
94% |
|
|
REPO |
Remote
Emergency Power-Off disables AC power to load |
|
|
Electrical Output |
Online Regulation |
-10% to +6% of nominal voltage |
|
On battery Regulation |
±5% of nominal voltage |
|
|
Voltage Wave Form |
Sine wave |
|
|
Connections |
See Model
Selection Matrix; divided into 2 Load Segments |
|
|
Output Protection |
Re-settable circuit protectors |
|
|
Battery |
Type |
Maintenance-free,
sealed, valve-regulated lead acid (VRLA) |
|
Extended Batteries |
Up to
four ERMs supported |
|
|
Backup Time |
See Backup Times Chart |
|
|
Recharge Time |
<3
hours to 80% usable capacity; <48 hours for complete recharge |
|
|
Battery String Voltage |
216V |
|
|
Battery Type |
12V 27W |
|
|
Battery Quantity |
18 |
|
|
Communications |
LED Indicators |
LCD and switch membrane
integrated into the front panel; with five-button control (four buttons for
UPS power control and one button under the front bezel for configuration). |
|
Environmental and Safety |
Operating Temperature |
50° to 104°F (10° to 40°C) |
|
Transit Temperature |
-13° to 131°F (-25° to 55°C) |
|
|
Storage Temperature |
32° to 77°F (0° to 25°C) |
|
|
Operating Humidity |
20% to 80% (non-condensing) |
|
|
Storage Humidity |
5% to 95% |
|
|
Operating Altitude |
Up to
6,60 ft (2000 m) above sea level |
|
|
Transit Altitude |
49,000 ft
(15,000 m) above sea level |
|
|
Audible Noise |
<45db (in normal operation) |
|
|
Safety Markings |
NA/JPN: UL, cUL |
|
|
Safety Certifications |
UL1778,
UL60950-1; CSA22.2 No.107.3, No.60-1950; EN50091-1-1; EN60950-1 IEC62040-1-1 |
|
|
EMC Markings |
NA/JPN:
FCC, VCCI, ICES, CISPR |
|
|
Emissions |
FCC CFR
47, Part 15 Class A, EN50091-2 |
|
|
Immunity |
IEC 801-2, IEC 801-3, IEC 801-4,
IEC 801-5 |
|
|
REPO Port |
Meets NEC
code 645-11 intent and UL requirements |
